Brass Cable Gland M32, 13–18 mm Cable, IP68 - VG M32 - MS 68
Regular price
$38.74
ex. GST
$42.61
inc. GST
Restocking
- Type
- Material
- IP Rating
- Operating Temp
Standards & certifications
IP68Continuous immersion

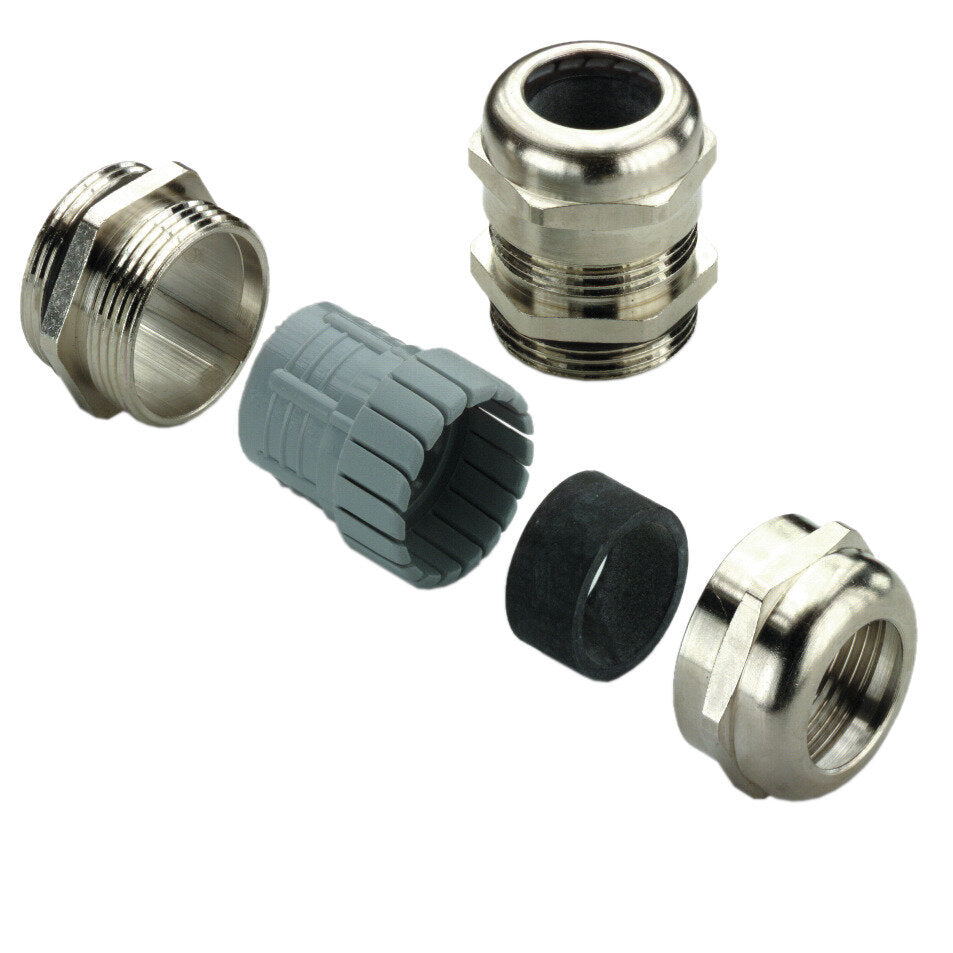

Weidmüller VG nickel-plated brass cable gland, M32 × 1.5 thread, for round cables 13–18 mm in diameter. Seals the cable into HDC hoods and surface mount housings, rated IP68 (5 bar) and IP69K.
Building a complete connector? Use the HDC Connector Kit Builder to pick the matching inserts, housings and gland, and add the whole kit to your cart in one step.
Fits these housings
- Heavy Duty Connector Hood, Size 8, Top Entry M32, IP65 (1787850000)
- Heavy Duty Connector Hood, Size 8, Side Entry M32, IP65 (1787790000)
- Heavy Duty Connector Surface Mount Housing with Cover, Size 8, M32 Entry, IP65 (1904440000)
Specifications
| Weidmüller type | VG M32 - MS 68 |
|---|---|
| Thread | M32 × 1.5 |
| Cable diameter | 13–18 mm |
| Protection | IP54 / IP66 / IP67 / IP68 (5 bar, 30 min) / IP69K |
| Material | Nickel-plated brass body, polyamide clamp insert, CR seal, NBR O-ring |
| Temperature range | -40 °C to 100 °C |
| Weight | 87.44 g |
| Approvals | cULus · DNV · RoHS |
