3-Phase Panel CT 150A / 0.1A, Class 0.5
Ask an expert!
- Width (mm)

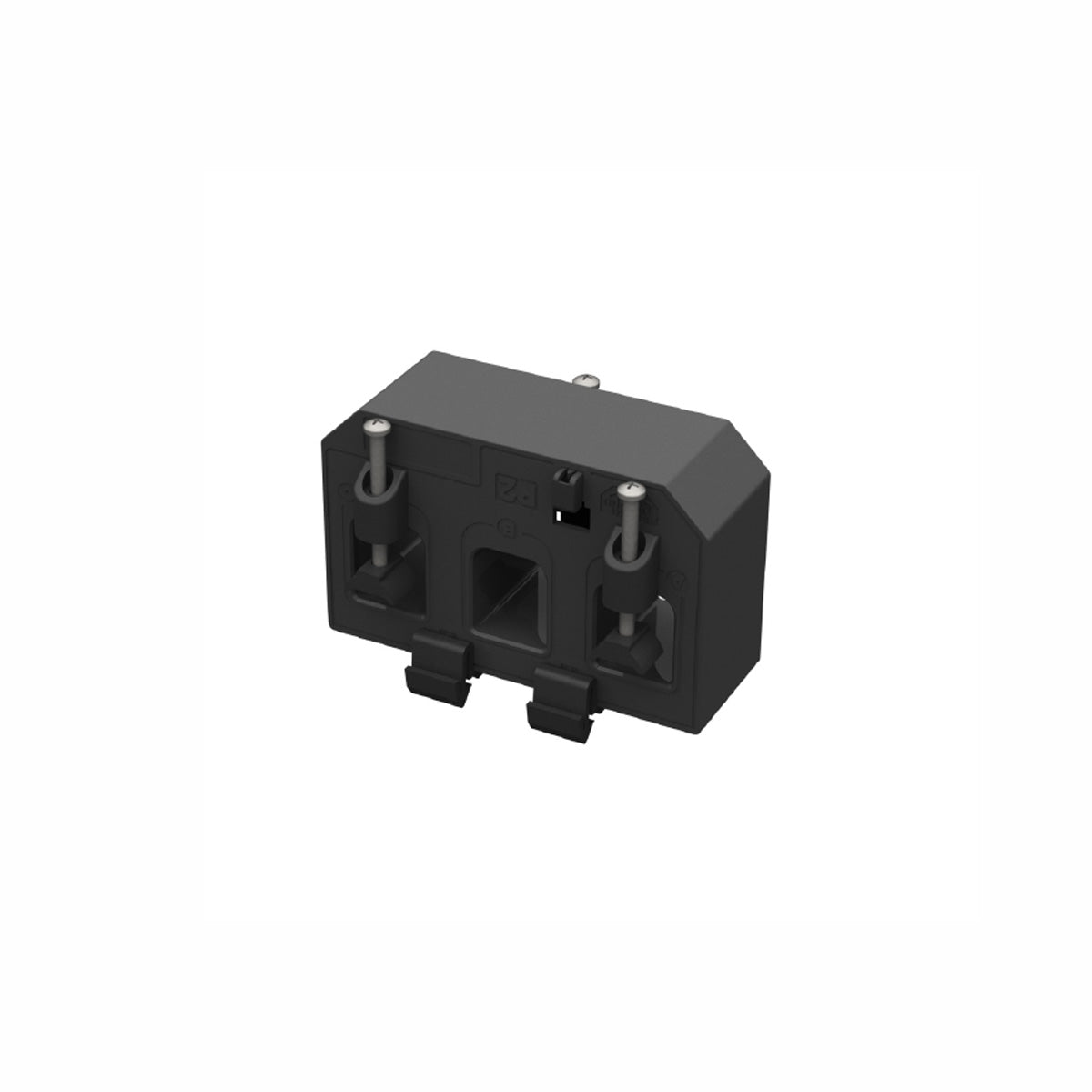

The Weidmüller CMA-3P21-150-0.1A-0.5 is a 3-phase current transformer block designed to work with the EM124-RTU-2L dual input multifunction power meter. All three phases are captured in a single block, and the RJ12 plug-and-play connection to the energy meter eliminates individual CT wiring and reduces installation errors.

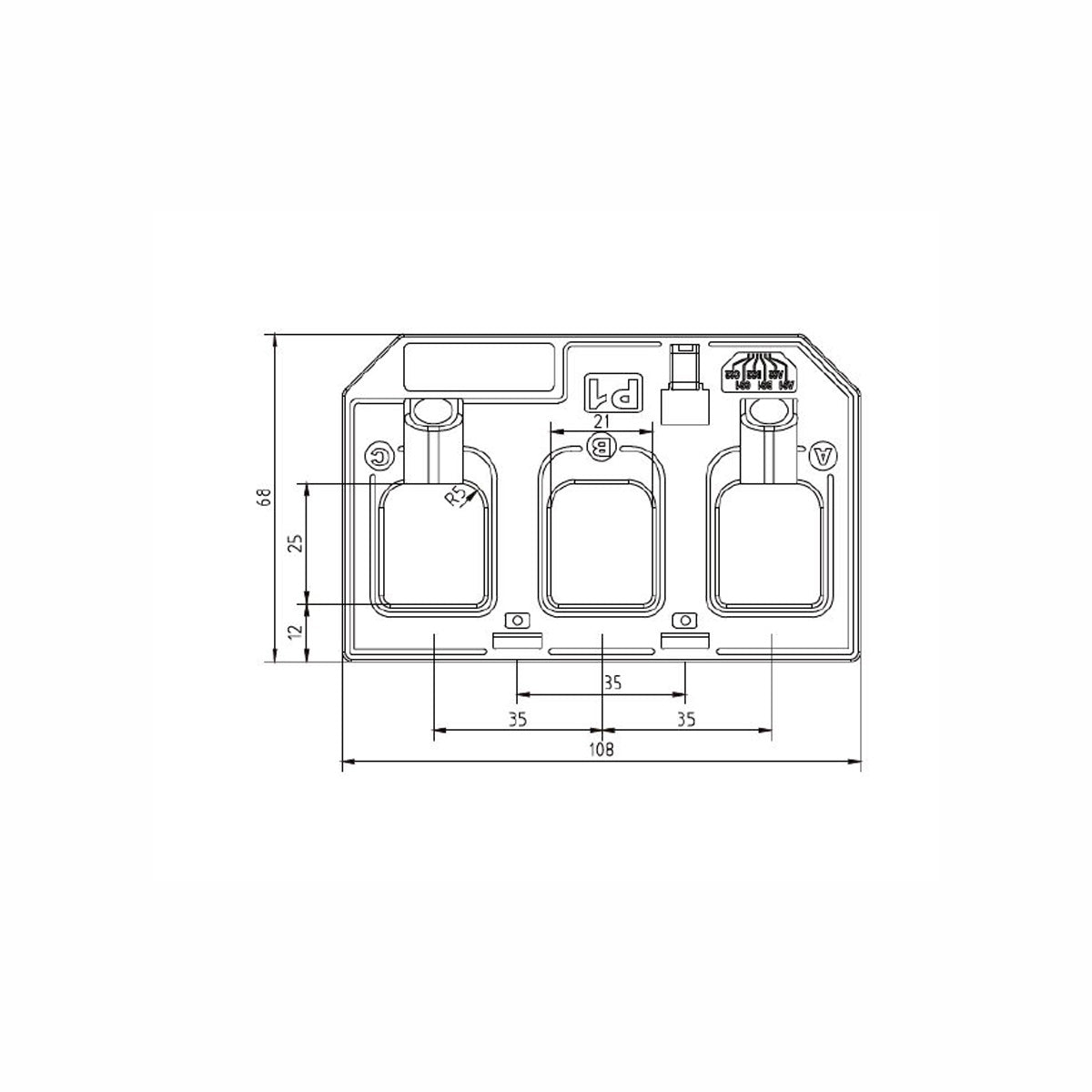

Rated at 150A primary / 100mA secondary to Class 0.5 accuracy, with a 35mm centre pitch and 21×25mm conductor entry aperture. The included 0.5m flat ribbon RJ12 cable (150V insulation) is included; longer cables and higher insulation options are available separately. Suitable for DIN rail or panel mount.
Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
