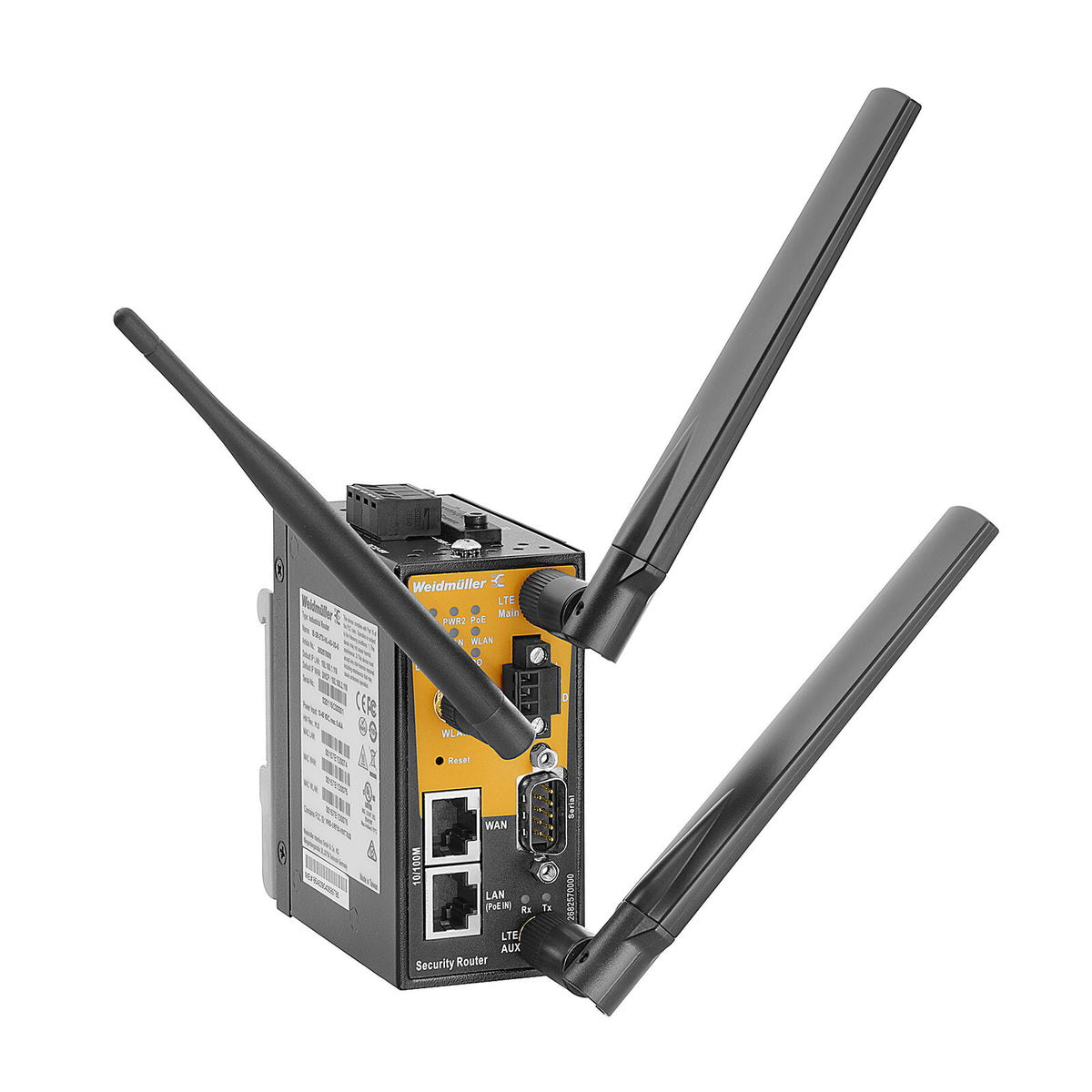

WIFI 4G LTE SECURITY ROUTER, 2 X RJ45, 1 X RS232/422/485, 2DI/1DO, 802.11B/G/N - IE-SR-2TX-WL-4G-EU

Weidmüller IE-SR-2TX-WL-4G-EU is an industrial security router with both a 4G LTE modem and 802.11b/g/n wireless LAN, giving remote sites a mobile uplink where no fixed line exists. It carries two Mini-SIM slots for dual-carrier redundancy and pairs a stateful Layer 3 firewall with OpenVPN, IPsec and u-link VPN. This is the EU band variant, and the LTE bands listed below should be checked against the Australian carrier network before ordering — B1, B3, B7, B28A and B40 are the ones that overlap local LTE deployments.

• Ethernet ports: 2 x RJ45 10/100BaseT(X)
• Mobile network: LTE-FDD B1, B3, B7, B8, B20, B28A, B41; LTE-TDD B38, B40; WCDMA B1, B8; GSM B3, B8
• Mobile data rate: Up to 150 Mbit/s downlink, 50 Mbit/s uplink
• SIM slots: 2 x Mini-SIM (ID-000)
• Wireless LAN: IEEE 802.11b/g/n in the 2.4 GHz band, with WEP and WPA / WPA2 Personal and Enterprise
• Serial interface: 1 x DB9 male, RS-232 / RS-422 / RS-485
• Digital I/O: 1 input (logic 1 at 5 ... 30 V, logic 0 at 0 ... 2 V), 1 output (0.2 A at 30 V DC)
• Firewall: Stateful packet inspection (Layer 3), with access control lists in WLAN modes
• NAT: Source and destination NAT by port, host or network
• VPN: OpenVPN (server or client), IPsec (initiator or responder), u-link client
• Supply voltage: 12 / 24 / 48 V DC with 2 redundant inputs, or Power over Ethernet (IEEE 802.3af)
• Operating temperature: -25 °C ... 70 °C
• Dimensions (W x H x D): 45 x 95 x 81 mm
• Housing and mounting: Metal, DIN rail or wall mount
• Protection degree: IP30
• Approvals: UL (E141197), RoHS; EN 55032 / EN 55024
