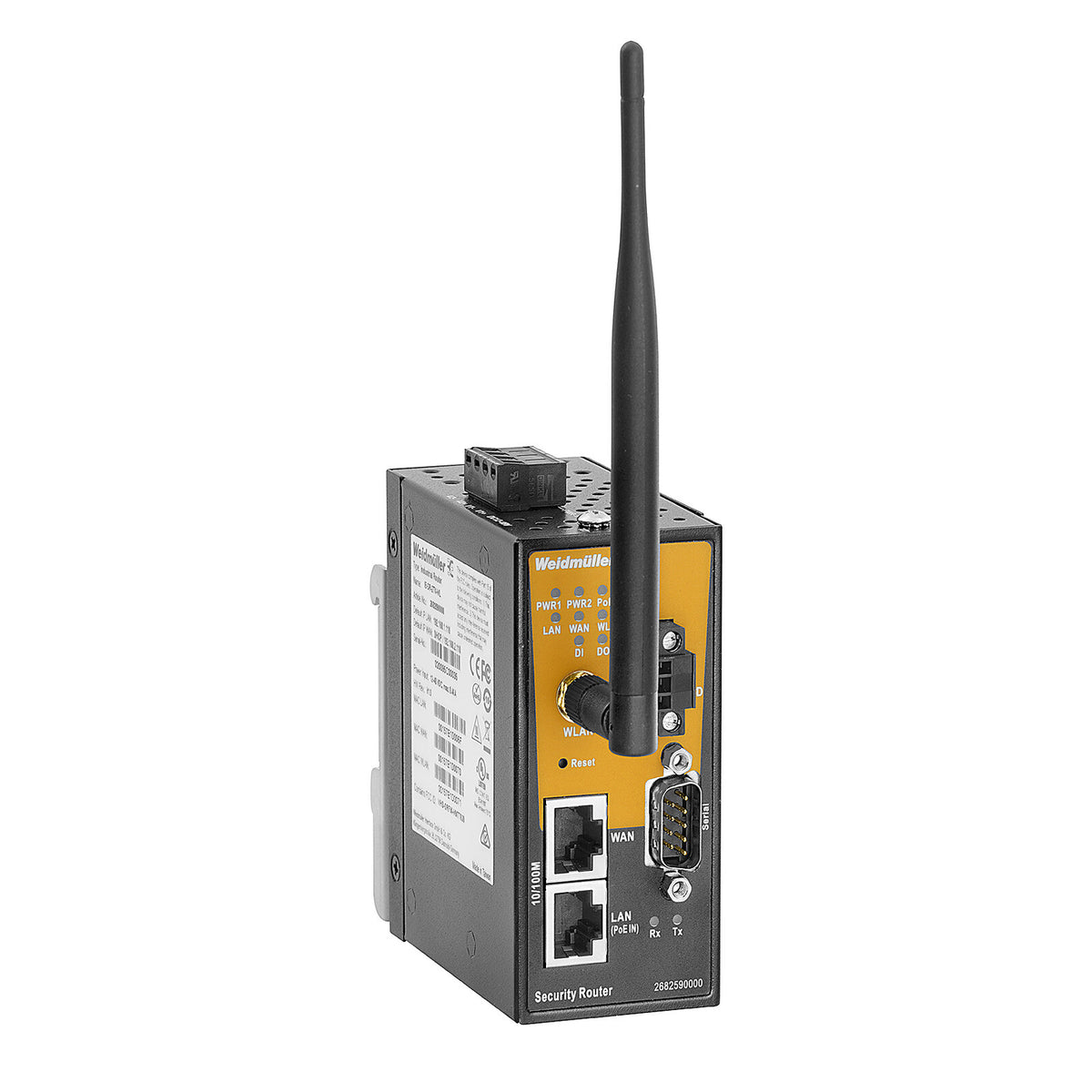

WIFI SECURITY ROUTER, 2 X RJ45, 1 X RS232/422/485, 2DI/1DO, 802.11B/G/N - IE-SR-2TX-WL

Weidmüller IE-SR-2TX-WL is an industrial security router with wireless LAN only, so it has no mobile network modem and relies on 802.11b/g/n or a wired uplink for its connection. It combines a stateful Layer 3 firewall, source and destination NAT and OpenVPN, IPsec and u-link VPN clients with a serial port and digital I/O, which suits remote-maintenance access to a machine or skid within Wi-Fi coverage.

• Ethernet ports: 2 x RJ45 10/100BaseT(X)
• Wireless: IEEE 802.11b/g/n in the 2.4 GHz band, access point or client mode, RP-SMA external antenna connector
• Serial interface: 1 x DB9 male, RS-232 / RS-422 / RS-485
• Digital I/O: 1 input (logic 1 at 5 ... 30 V), 1 output (0.2 A at 30 V DC)
• Firewall: Stateful packet inspection (Layer 3)
• NAT: Source and destination NAT by port, host or network
• VPN: OpenVPN (server or client), IPsec (initiator or responder), u-link client
• Supply voltage: 12 / 24 / 48 V DC with 2 redundant inputs, or Power over Ethernet (IEEE 802.3af)
• Current consumption: 0.22 A at 12 V, 0.07 A at 48 V
• Operating temperature: -25 °C ... 70 °C
• Storage temperature: -40 °C ... 85 °C
• Dimensions (W x H x D): 45 x 95 x 81 mm
• Weight: 411 g
• Housing and mounting: Metal, DIN rail or wall mount
• Protection degree: IP30
• Approvals: UL 61010-1 and UL 61010-2-201 (E141197), RoHS, FCC Part 15 Class A
