Din Rail Power Supply 76.8W 24V 3.2A
In stock
Stock on hand
NSW WarehouseAuburn, NSW 2144
37 in stock
QLD WarehouseBells Creek, QLD 4551
314 in stock
VIC WarehouseEpping, VIC 3076
45 in stock
Updated
2 minutes ago
Shipping & pickup →
Regular price
$40.16
ex. GST
$44.18
inc. GST
Free Shipping
Ask an expert!

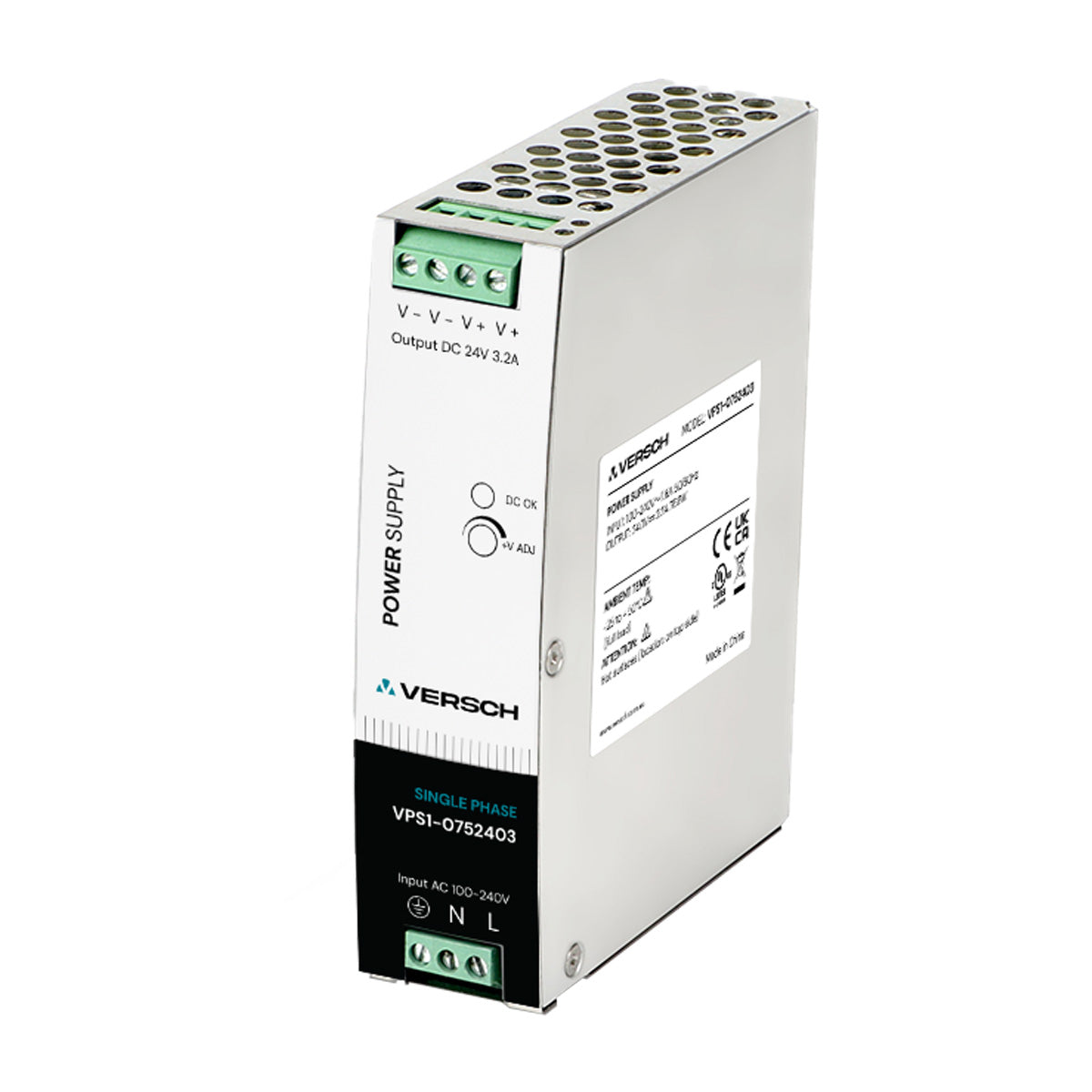

Din Rail Power Supply 76.8W 24V 3.2A
VERSCH metal case power family designed with slim housing and for full range AC input from 90V AC to 264V AC.
The series are single phase PSU, providing adjustable DC output voltage. They have high efficiency and operate in wide temperature
range. The series can widely used for industrial automation & control systems, varied equipments etc.
Electrical Characteristics
| Model No. | VPS1-0752403 |
| DC Voltage | 24V |
| Rated Current | 3.2A |
| Rated Power(Max) | 76.8W |
| Ripple & Noise(Max) | 120mVp-p |
| Input Voltage | 90 - 264VAC 127-370VDC |
| Inrush Current | 20A/115VAC 35A/230VAC |
| Efficiency | 87.50% |
| Working Temperature | -20~+70 C(Refer to “Derating Curve“) |
| Withstand Voltage | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
| Protection | Short Circuit/Over Load/Over Voltage/Over Temperature |
| Connection | I/P:3 poles terminal Block, O/P: 4 poles terminal Block |
Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
