Heavy Duty Connector Hood, Size 8, Top Entry M32, IP65 - HDC 24B TOLU 1M32G
Regular price
$47.69
ex. GST
$52.46
inc. GST
Out of stock
Contact us for lead time
0 in stockContact us for lead time →
- Type
- Series
- Material
- IP Rating
- Operating Temp
- Size
Standards & certifications
IP65Dust-tight · water jets

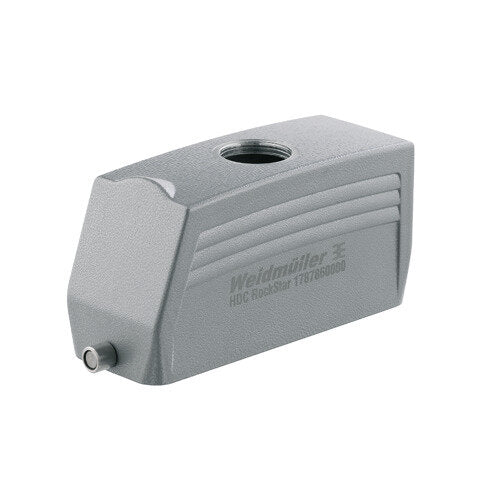

Weidmüller RockStar® HDC size 8 hood (plug housing) with top cable entry, M32 thread. It holds the cable-side insert and locks onto a size 8 bulkhead or surface mount housing, giving IP65 protection when mated. Die-cast aluminium, powder coated. Order the M32 cable gland separately.
Building a complete connector? Use the HDC Connector Kit Builder to pick the matching inserts, housings and gland, and add the whole kit to your cart in one step.
Parts needed for a complete connector
- Inserts: Heavy Duty Connector Insert, Male, 24 Pole + PE, Screw, 16A 500V, Size 8 (1211100000); Heavy Duty Connector Insert, Male, 24 Pole + PE, Push-In, 16A 500V, Size 8 (1873590000); Heavy Duty Connector Insert, Female, 24 Pole + PE, Screw, 16A 500V, Size 8 (1211300000); Heavy Duty Connector Insert, Female, 24 Pole + PE, Push-In, 16A 500V, Size 8 (1873580000)
- Housing (fixed side): Heavy Duty Connector Bulkhead Housing with Cover, Size 8, IP65 (1214300000); Heavy Duty Connector Surface Mount Housing with Cover, Size 8, M32 Entry, IP65 (1904440000)
- Cable gland: Brass Cable Gland M32, 13–18 mm Cable, IP68 (1772240000)
Specifications
| Weidmüller type | HDC 24B TOLU 1M32G |
|---|---|
| Part | Hood (plug housing, cable side) |
| Installation size | Size 8 |
| Cable entry | Top, M32 thread (cable gland not included) |
| Locking | Single locking lever on the housing; hood has locking pegs |
| Cover | n/a |
| Protection | IP65 when mated |
| Material | Die-cast aluminium, powder coated RAL 7035 |
| Seal | Seal in mating housing |
| Temperature range | -40 °C to 125 °C |
| Dimensions (H × W × L) | 61 mm × 46 mm × 120 mm |
| Weight | 268 g |
| Approvals | cURus (E92202) · RoHS |
