Type Approved ITS enclosures. Certified. Stocked. Pre-wired to spec.

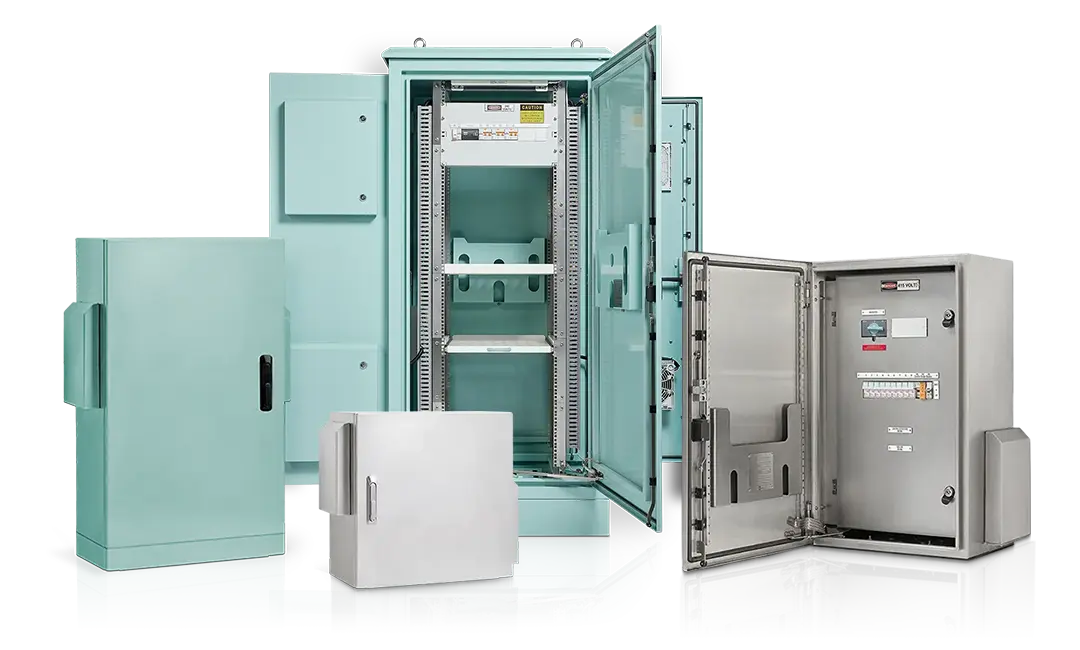

TROPAC designs and supplies Type Approved ITS enclosures for Queensland, New South Wales and Western Australia — tested to Category D wind loading (295km/h / 82m/s), IP55 sealed, and backed by a 25-year structural warranty. Available empty or pre-wired to TMR / RMS specification, with branches in QLD, NSW and VIC.
ITSTAN000163
APPROVAL
CAT D · 295KM/H
WIND
IP55 · AS60529
INGRESS
WARRANTY
25 YR · STRUCT
Type Approved
QLD · NSW · WA
Engineered in Australia
Assembled at QLD HQ
Pre-wired available
TMR SD1690 or project spec
25-year warranty
Structural performance
Infrastructure Solution
Find your solution
What type of enclosure do you need? Select by application — we'll point you to the right product and Type Approval.
ITS roadside cabinet
ITS roadside cabinet — electrical distribution
Full-size roadside electrical distribution cabinet for traffic management, ANPR, cameras or tolling systems on major transport corridors. Type Approved
ITS Enclosure (Single / Double)
View product →
Street lighting switchboard
Street lighting switchboard — Rate 3
3-phase or single-phase Rate 3 lighting switchboards for road lighting, smart city upgrades and council lighting infrastructure. Smart lighting ready.
Rate 3 Lighting Switchboard
View product →
NSW RMS-spec
NSW RMS-spec ITS enclosure
Type Approved enclosure meeting NSW Roads and Maritime Services specification — single or double-door, plinth-mounted.
ITS RMS Enclosure (NSW Spec)
View product →
Pole-mounted enclosure
Pole-mounted enclosure — roadside or remote
Compact stainless steel enclosures for pole or pedestal mounting. Ideal for SHVMS, traffic monitoring and remote roadside equipment points.
ITS Pole Mounted Enclosures (PME)
View product → →
Cable joining pits
Cable joining pits and access chambers
GRP cable joining pits and Rhinode access chambers — from compact 300mm units to 1000mm deep configurations with smart lid options.
Rhinode GRP Pits & Access Chambers
View product → →
Custom solution
I need a custom or non-type-approved solution
TROPAC holds SOA approval for custom enclosures where standard type-approved products don't meet project requirements. Speak to a PAC for project scoping.
Custom & SOA enclosures available
Speak to a PAC →
Product range
ITS enclosure range.
All products tested by certified independent laboratories. Available pre-wired to TMR / RMS specification or empty to your project design. Download the datasheet, or request a quote — these are project-supplied, not online-stocked items.

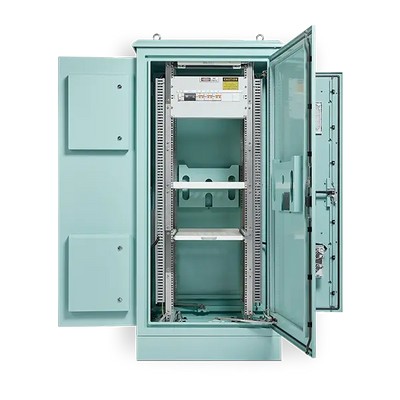

Type Approved ITS Enclosure
Single / Double / Aircon
Drawing ref
TRO-A1809062-T33 (Single)
TRO-A1812062-T33 (Double)
TRO-A1812062-T33 (Double)
QLD Type Approved roadside ITS field cabinet — single, double or air-conditioned.
1800mm (H) cabinet in single, double or aircon configurations with 37RU 19" rack space. Fully welded 3CR12 / 316 stainless construction, IP55 rated, tested to Category D wind loading (295km/h). Pre-wired to TMR specification or supplied empty to your project design. Sun shield, fan-forced ventilation and gland plates included.
Type Approval 24-20
ITSTAN000163
IP55 — AS60529
295km/h Cat D
37RU 19" rack
Single / Double / Aircon

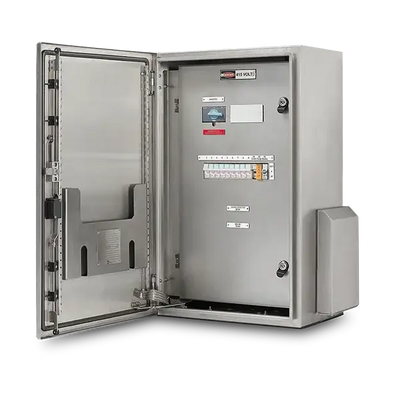

Rate 3 Lighting Switchboard
3-Phase · Metered
Drawing ref
TRO-SSFC8050302
TRO-SSFC1005032-R3M
TRO-SSFC1005032-R3M
QLD Type Approved Rate 3 cabinet — 3-phase and metered single-phase configurations.
Compact 800mm (H) × 500mm (W) pedestal-mounted lighting switchboard for road and public lighting circuits. Supports 1 to 5 × 3-phase lighting circuit selections, or metered single-phase for individual circuit billing. Smart lighting ready. 3-point locking, door stay, surge diverter, PE cell and contactor included as standard. Wired to TMR Standard Drawing SD1690 or project-specific requirements. Rag bolt pedestal included.
Type Approval 23-14
IP55
295km/h Cat D
Smart lighting ready
1–5 × 3-phase circuits
Pedestal mounting

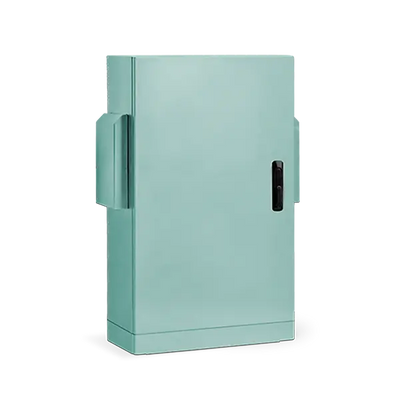

ITS RMS Enclosure
NSW Specification
Drawing ref
TRO-RMS-1800
NSW RMS specification ITS enclosure
Built to NSW RMS specifications for intelligent transport systems deployment.
RMS Approved
IP55
37RU 19" rack
Stainless steel construction

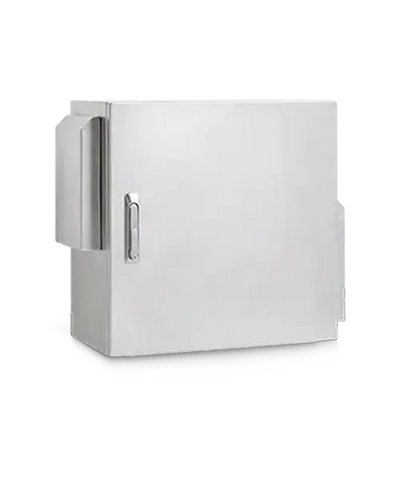

Pole Mounted Enclosures
PME · QLD Type Approved
Drawing ref
TRO-SSPME606030
TRO-SSPME1006030
TRO-SSPME1006040
TRO-SSPME1006030
TRO-SSPME1006040
1.5mm 316 stainless steel — IP55 enclosures for pole and pedestal mounting.
Three sizes: 600mm or 1000mm (H) × 600mm (W) in 300mm or 400mm depths. Vented IP55 hood with filter, optional 12VDC or 240VAC internal fan, concealed stainless steel hinges, and 2mm powder-coated mounting panel set 50mm from rear. Designed for SHVMS sites, traffic monitoring, ANPR points and roadside remote equipment installations. All models QLD Type Approved (24-16). Pedestal and rag bolt accessories available.
Type Approval 24-16
IP55
295km/h Cat D
316 stainless steel
3 sizes
Pole or pedestal

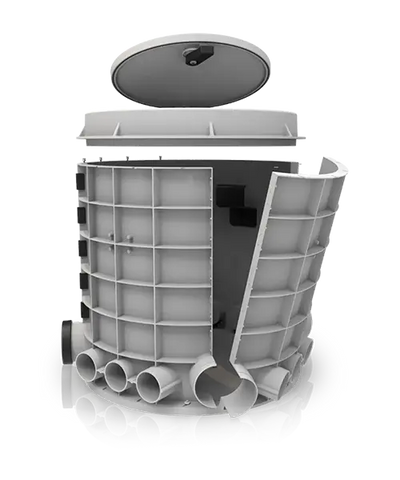

Rhinode GRP Pits
Cable Joining · Access Chambers
Drawing ref
Rhinode-300 to -1000
DUC / GLAM / MECH Lids
DUC / GLAM / MECH Lids
AS3996-tested GRP cable joining pits and access chambers — from compact telco to deep cable installations.
Rhinode range covers five pit sizes from 300mm to 1000mm depth. Rhinode-300/400 rated EN124 A15 (15kN) for footpath use. Rhinode Compact-600 rated SANS 558 MD (40kN). Rhinode-1000 (AS3996 — type approval in progress) for cable joining. Smart lid options include DUC (IP68, 15U / 23U rack), GLAM electronic seal (IP68), mechatronic locks, NB-IoT smart sensors and CyberKey Blue 3 / CyberLock smart access. Stainless steel 304 fasteners throughout.
AS3996 load tested
EN 124 A15–B125
IP68 smart lids
NB-IoT sensors
CyberLock / CyberKey
5 pit sizes
QUALITY & COMPLIANCE
25-year structural warranty. ISO-certified operations.
25-year structural warranty. ISO-certified operations. Every TROPAC ITS enclosure is subject to independent laboratory testing against AS/NZS standards before it leaves the factory. The 25-year structural warranty is backed by a documented quality management system — not a marketing claim.
TROPAC operates under ISO 9001:2015 (Quality), ISO 14001:2015 (Environmental) and ISO 45001:2018 (Safety) — covering importation, warehousing, sales and distribution of all infrastructure products.
ISO 9001:2015
Quality Management SystemYears manufacturing low-voltage switchgear
ISO 14001:2015
Environmental Management System
ISO 45001:201
Occupational Health & Safety
ITS Australia
Silver Member — best-practice partner
ITS INFRASTRUCTURE SOLUTIONS
Type Approved. In stock. Ready to wire.
TROPAC ITS enclosures are held in QLD, NSW and VIC — available empty or pre-wired to specification. Contact our team to scope your project, confirm Type Approval requirements or request a quote.
TALK TO AN ITS SPECIALIST
Request a quote
Send the team your application and a TROPAC Product Application Consultant will come back with the right ITS Infrastructure product, stock position and account pricing — usually same business day.
- Selection & cross-reference from your current part numbers
- Live stock check across QLD, NSW & VIC
- Trade-account & project pricing
