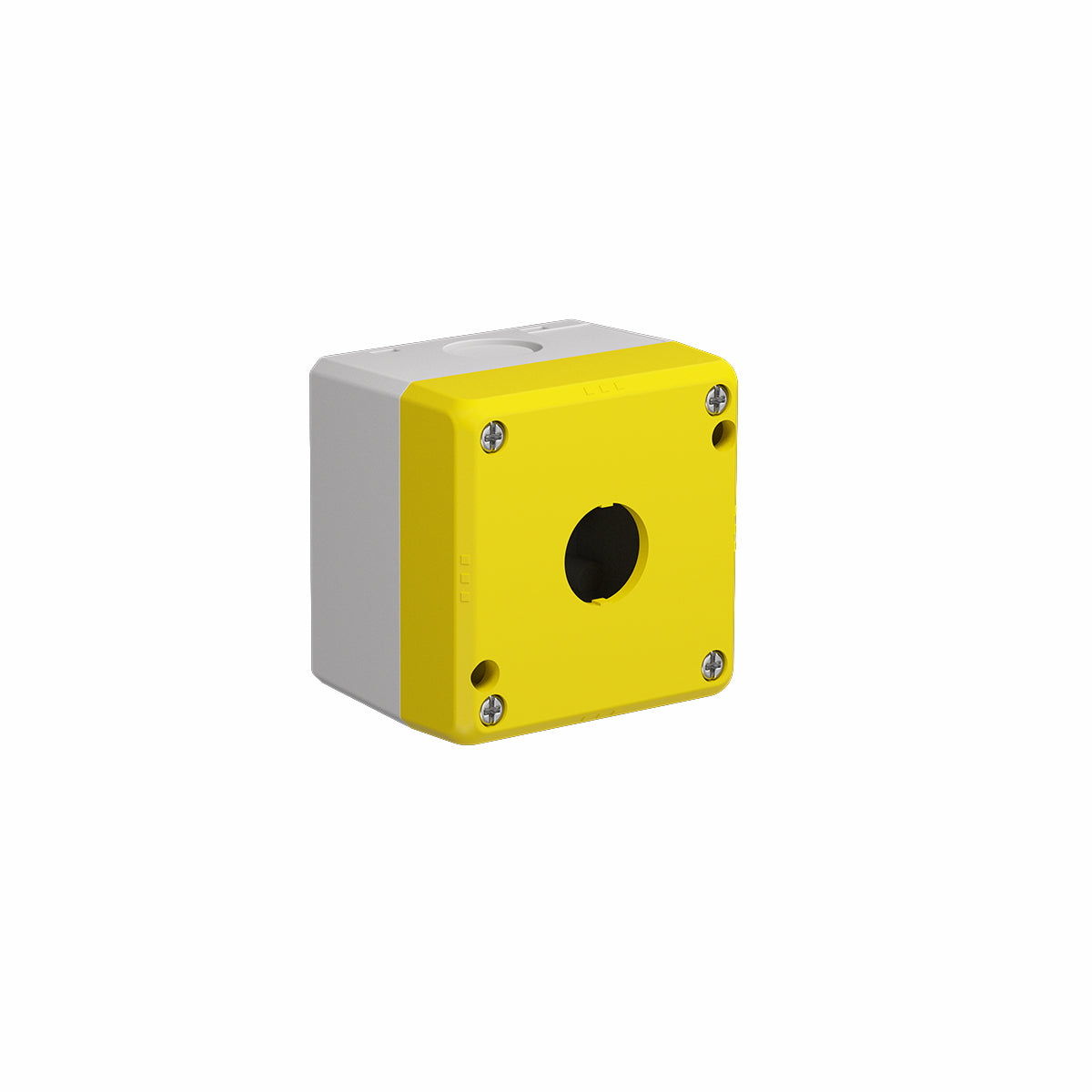

1-Hole Pushbutton Enclosure, Yellow Top Cover + Grey Base

1-Hole Pushbutton Enclosure, Yellow Top Cover + Grey Base

The CI01AAA001 is a single-aperture control station enclosure from the Telergon CI0 range, moulded in ABS with a yellow cover on a grey base. It takes any 22mm LA1 operator, so a start button, e-stop or selector can be mounted where there is no panel to cut into — machine guards, conveyor runs, lift shafts and plant rooms.

Features and Specifications

Protection: IP65.

Apertures: 1 × Ø22.3mm (R11.15), suits all LA1 22mm operators.
Cable entry: Ø20.20 knockout.

Dimensions:

76 mm high × 76 mm wide × 59.6 mm deep

Materials:

ABS cover and base

Operators and contact blocks are ordered separately. The enclosure is supplied empty — add the LA1 operator and the LAA-series contact block that matches your circuit.

Manufacturer: Telergón, S.A.U.
