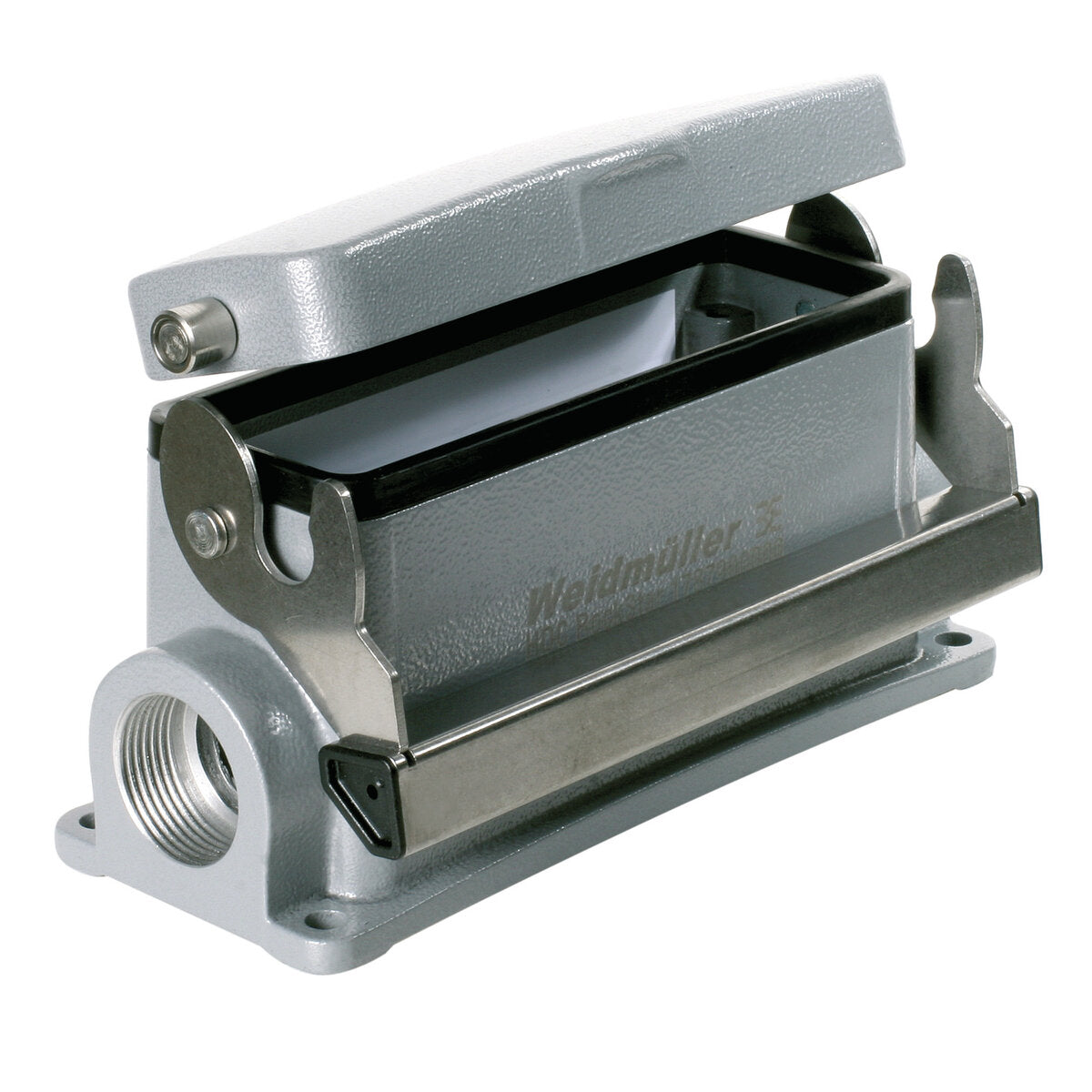

Heavy Duty Connector Surface Mount Housing with Cover, Size 8, M32 Entry, IP65 - HDC 64D SDLU 1M32G
Regular price
$172.70
ex. GST
$189.97
inc. GST
Out of stock
Contact us for lead time
0 in stockContact us for lead time →
- Type
- Series
- Material
- IP Rating
- Operating Temp
- Size
Standards & certifications
IP65Dust-tight · water jets
Weidmüller RockStar® HDC size 8 surface mount housing for walls, machine frames and equipment, with its own M32 cable entry. The hinged cover seals the contacts when unplugged and the locking lever holds the hood closed for IP65 protection. Takes HDC size 8 inserts. Order the M32 cable gland separately.
Building a complete connector? Use the HDC Connector Kit Builder to pick the matching inserts, housings and gland, and add the whole kit to your cart in one step.
Parts needed for a complete connector
- Inserts: Heavy Duty Connector Insert, Male, 24 Pole + PE, Screw, 16A 500V, Size 8 (1211100000); Heavy Duty Connector Insert, Male, 24 Pole + PE, Push-In, 16A 500V, Size 8 (1873590000); Heavy Duty Connector Insert, Female, 24 Pole + PE, Screw, 16A 500V, Size 8 (1211300000); Heavy Duty Connector Insert, Female, 24 Pole + PE, Push-In, 16A 500V, Size 8 (1873580000)
- Hood (cable side): Heavy Duty Connector Hood, Size 8, Side Entry M32, IP65 (1787790000); Heavy Duty Connector Hood, Size 8, Top Entry M32, IP65 (1787850000)
- Cable gland: Brass Cable Gland M32, 13–18 mm Cable, IP68 (1772240000)
Specifications
| Weidmüller type | HDC 64D SDLU 1M32G |
|---|---|
| Part | Surface mount housing (base housing) |
| Installation size | Size 8 |
| Cable entry | Side, M32 thread (cable gland not included) |
| Locking | Single locking lever on the housing; hood has locking pegs |
| Cover | Hinged cover included |
| Protection | IP65 when mated |
| Material | Die-cast aluminium, powder coated RAL 7035 |
| Seal | NBR |
| Temperature range | -40 °C to 125 °C |

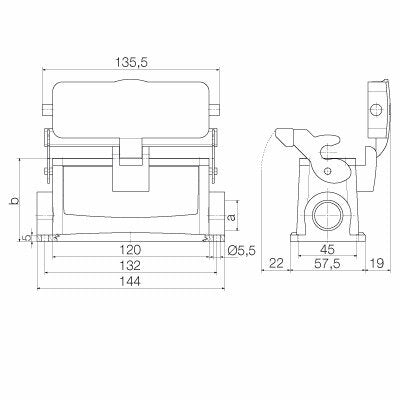

| Dimensions (H × W × L) | 106 mm × 98.8 mm × 120 mm |
| Mounting hole pitch | 132 mm × 45 mm |
| Weight | 636 g |
| Approvals | RoHS |
TROPAC's standard warranty covers all products. A 5-year warranty applies to eligible IP Enclosures products. Refer to Refunds & Returns for more information.
