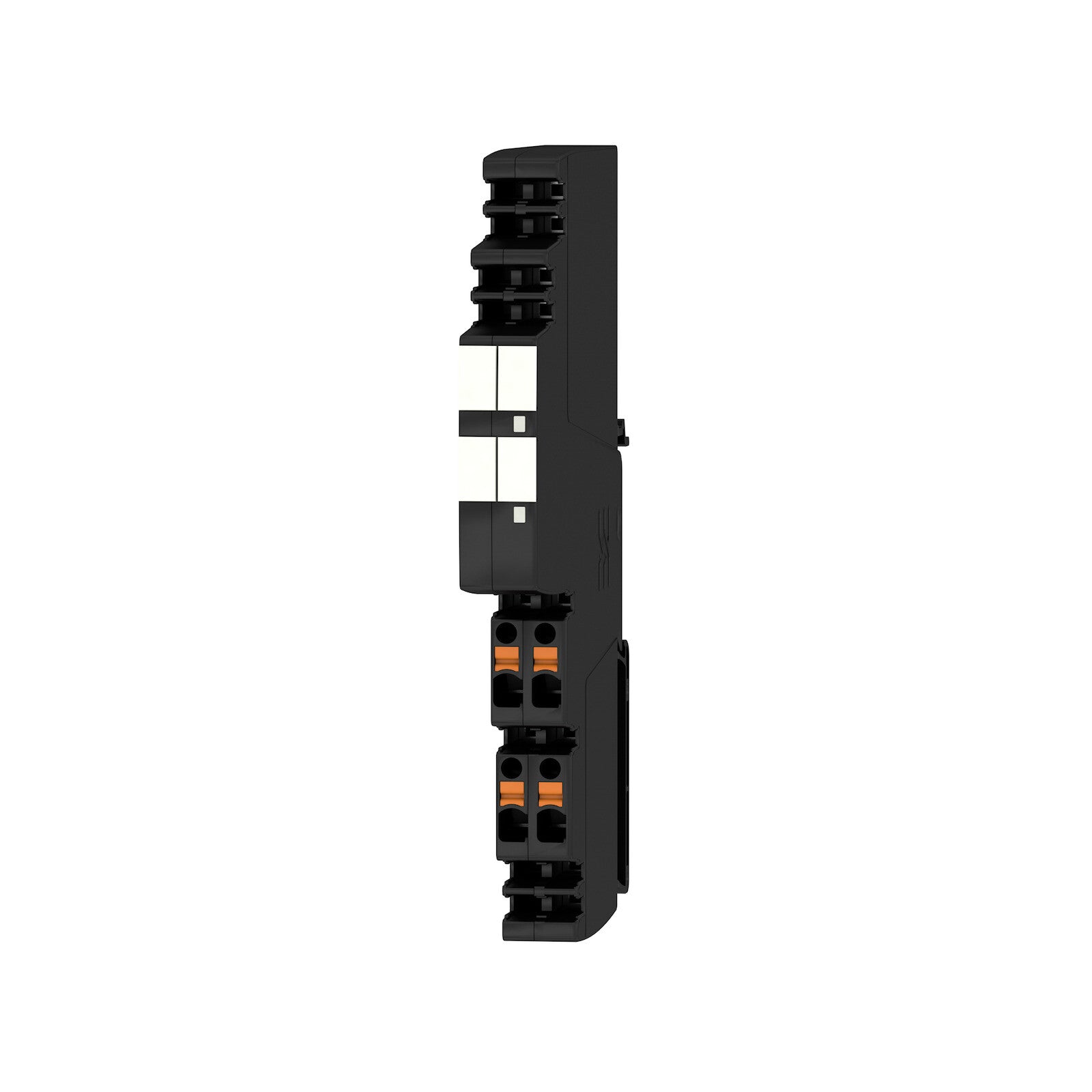

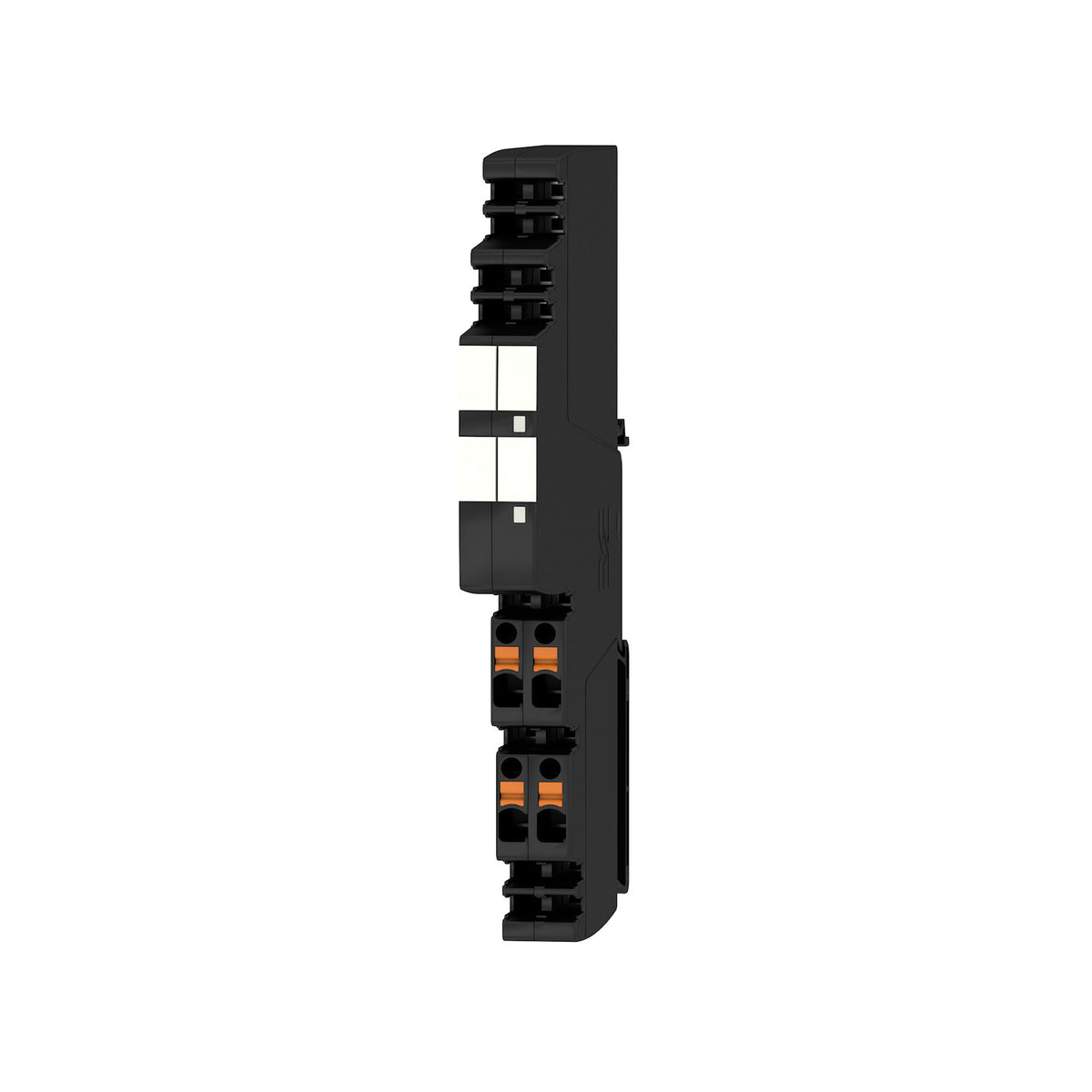

maxGUARD Alarm Module, 24VDC - AMG AM

The Weidmüller maxGUARD AMG AM is the alarm module for a maxGUARD assembly: it reads the station's internal signal line and converts it into two floating normally-open contacts, one for collective alarm and one for the I > 90 % overload pre-warning. Floating contacts make it the right choice where the receiving side is not 24 V DC referenced — an isolated PLC input, an annunciator or a legacy relay circuit. It has no control input of its own; if you also need remote reset or ON/OFF switching of the ELM channels, use the AMG CM.

• Function: Alarm module, converts the internal signal line into floating alarm and pre-warning contacts
• Supply voltage: 24 V DC, range 18…30 V DC
• Current consumption: 25 mA idle, 30 mA at full load

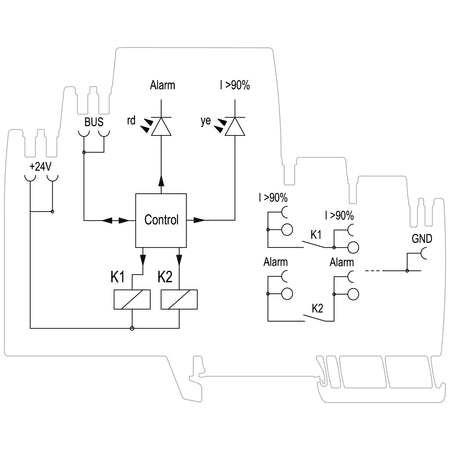

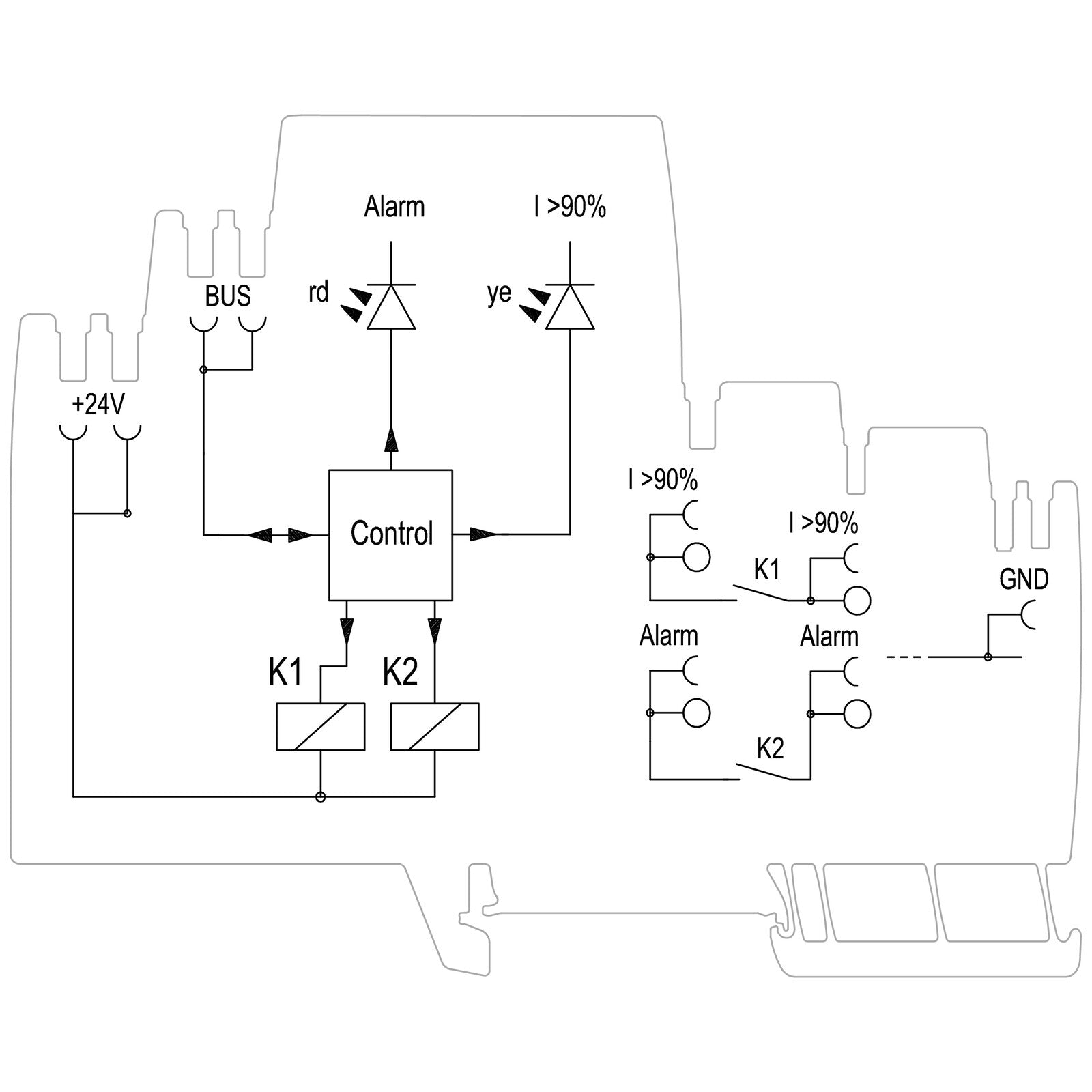

• Signalling contacts: 2 x NO, floating (4 terminals) — alarm and I > 90 % pre-warning
• Contact rating: 24 V / 0.1 A
• Status LEDs: Red (alarm), yellow (output current > 90 % of rated, flashing)
• Control inputs: None
• Connection system: PUSH IN
• Width: 12.2 mm
• Dimensions (W x H x D): 12.2 mm x 125 mm x 96.5 mm
• Operating temperature: −25 °C to +55 °C
• Protection degree: IP20
• Approvals: UL (file E258476), RoHS compliant (exemptions 7a, 7c-I)
• Order number: 2081890000
