Home » Cable & Connectivity » FrontCom Micro RJ45 coupling - IE-FCM-RJ45-C

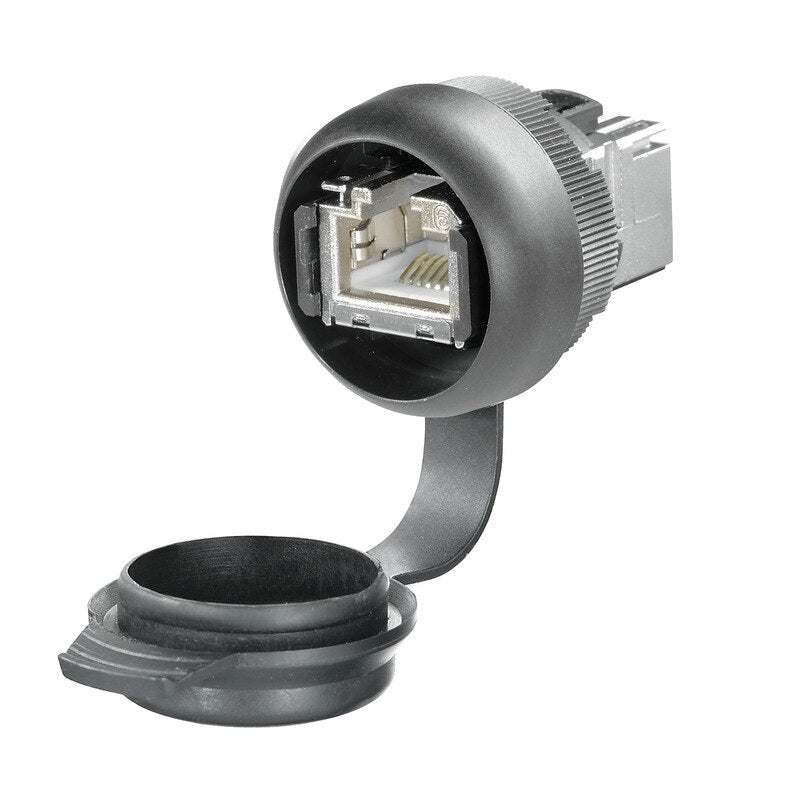

FrontCom Micro RJ45 coupling - IE-FCM-RJ45-C — Weidmuller

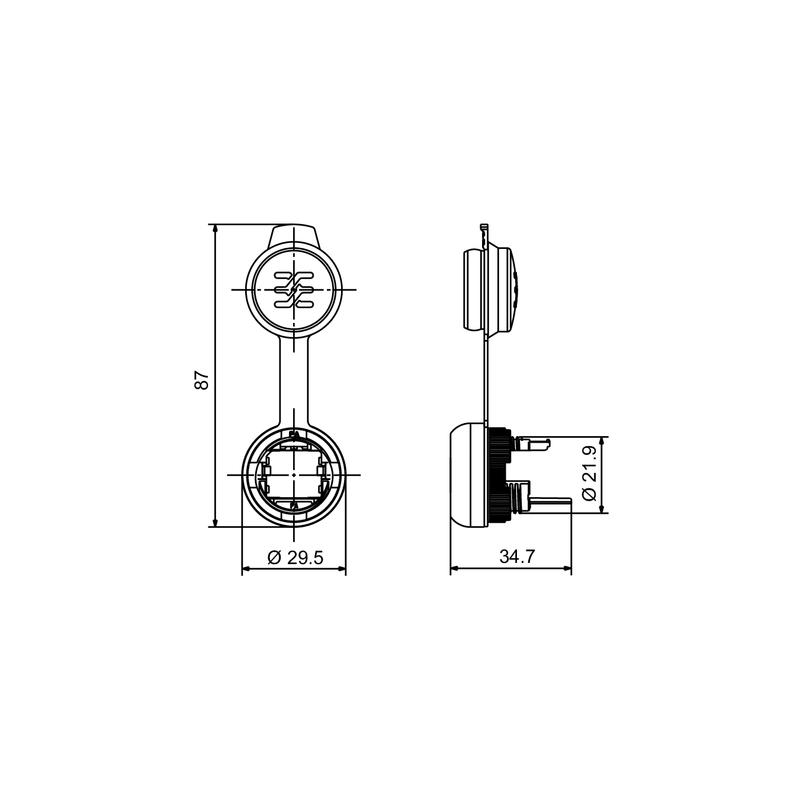

1018790000_2

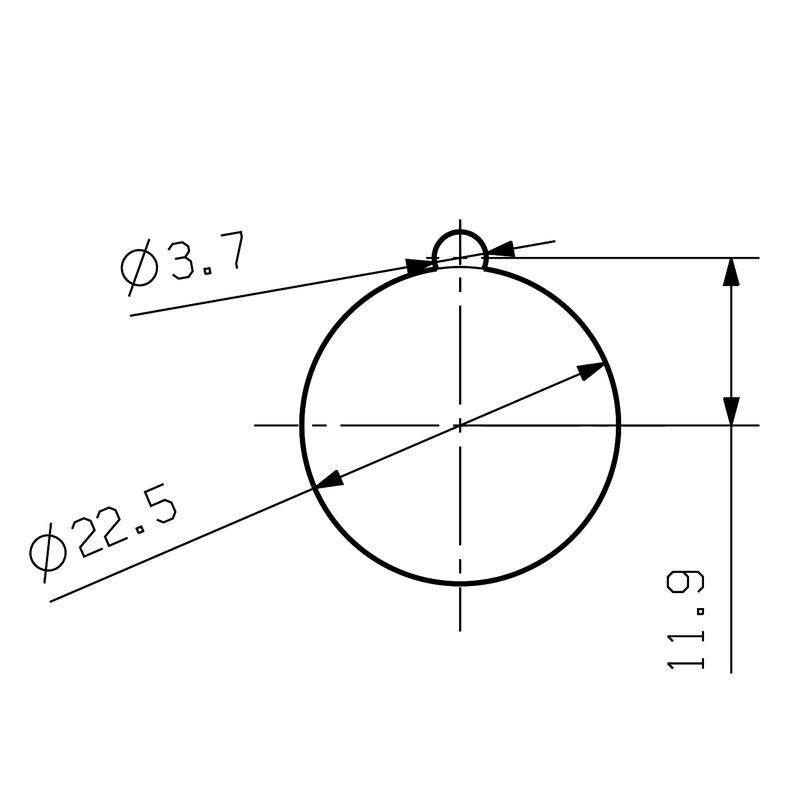

1018790000_3
FrontCom Micro RJ45 coupling - IE-FCM-RJ45-C — Weidmuller
1018790000_2
1018790000_3

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

Weidmuller

FrontCom Micro RJ45 coupling - IE-FCM-RJ45-C

SKU
$34 ex. GST $37.40 inc. GST
In stock
37 in stock across 3 warehouses
  • IP Rating IP20

Standards & certifications

IP20Ingress protection

The Weidmüller IE-FCM-RJ45-C is a FrontCom Micro feed-through coupling that carries an Ethernet link through a cabinet door or distribution box wall, presenting a shielded RJ45 socket on each side. Use it where both sides of the wall are patched with ready-made RJ45 leads, rather than the field-terminated IDC module version of the same insert.

  • Connections: RJ45 to RJ45
  • Category: Cat.6A / Class EA (ISO/IEC 11801:2010)
  • Protection: IP65 in the closed state
  • PoE: PoE/PoE+ to IEEE 802.3af
  • Shielding: 360° shield contact
  • Contacts: Gold over nickel, 750 mating cycles
  • Operating temperature: -40 °C to 70 °C
  • Housing: PA, UL 94 V-0

TROAPC's standard warranty covers all products. A 5-year warranty applies to applicable IP Enclosures products. Refer to Refunds & Returns for more information.
