Modular Stackable Cable Clamp for 30-46mm Cable, Set A | MSMC 30-46

SKU
$20.22 ex. GST $22.24 inc. GST
In stock
95 in stock across 2 warehouses
  • Type Cable Clamp
  • Series MSMC
  • Material Polyamide
  • Colour Black
  • Operating Temp −40°C to +140°C
  • Country of Origin DE
  • Standards
    • IEC 61914
    • NFPA 130
  • Flammability Rating UL 94 V-0

Standards & certifications

NFPA NFPA 130 IEC/EN 61914 Tested standards

Modular Stackable Cable Clamp for 30-46mm Cable, Set A | MSMC 30-46

At 30 to 46 mm the MSMC 30-46 is the first of the large-frame clamps, sized for heavy power feeds, multicore control cable and hydraulic lines where the bending radius rules out a conventional cleat. Set A includes the two long hexagon head screws, so clamps can be stacked in height as well as lined up in a row.

Features and Specifications

Clamping range: 30 – 46 mm. Assembled dimensions: 100 x 40 x 64.5 mm (L x W x H).

Standards (& Conformities): IEC 61914, NFPA 130.

Material:

Clamp body: Polyamide (PA), black
Flame class: UL 94 V-0, self-extinguishing
Operating temperature: −40°C to +140°C (static)
Properties: Halogen free, silicone free, weather-resistant

Construction:

The clamp is built from an upper and a lower half shell closed with hexagon head screws. Longitudinal and transverse ridges in the support surface absorb tensile and torsional forces, and assembly with two through bolts gives an anti-rotation lock. The clamped diameter can vary by up to 16 mm across the range, and the half shells suit the large bending radii of rigid cable.

Mounting:

A central slotted hole allows direct mounting to a plate, gland plate or base, with the option of two long screws for greater stability and torsional resistance. Fitting an SCMC sliding nut allows mounting on C-rail instead. Markings on the half shells show the orientation – short marking bottom and top for mounting in line, short bottom with long top for mounting in height. Tighten the screw connection to 3 Nm when clamping cable.

Lining Up and Stacking:

Clamps are joined horizontally with a CMC coupler, and Set A adds two long hexagon head screws so the top section can be rotated 180° and clamps stacked vertically. Different clamping ranges can be connected to one another using the CMC 30 coupler. The coupler also works as a mounting aid for overhead installation.

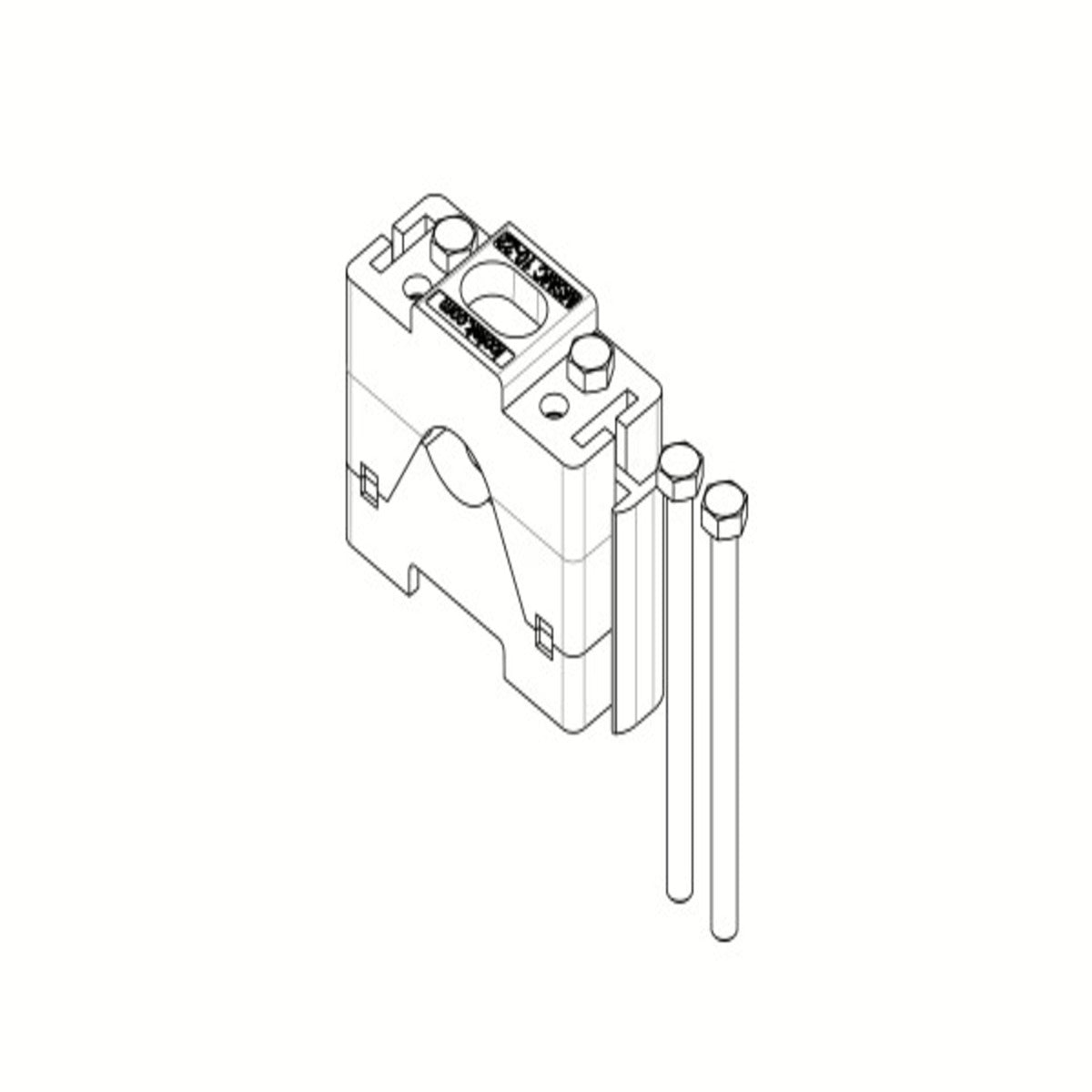

What's Included: One cable clamp (upper and lower part), one coupler, two short hexagon head screws and two long hexagon head screws. Sold as a single clamp set; icotek supplies the MSMC range in packs of five.

Related products: CMC 30 coupler for joining large clamps, SCMC 30 C-rail sliding nut, and the larger MSMC 44-55 for 44 – 55 mm cable.


Note: Please choose product carefully. Product selection is the responsibility of the Purchaser. Refer to relevant Standards, project requirements and technical specifications to ensure that the product meets requirements.
