Authorised Australian Distributor — Top Cable

One panel wire, approved on four continents.

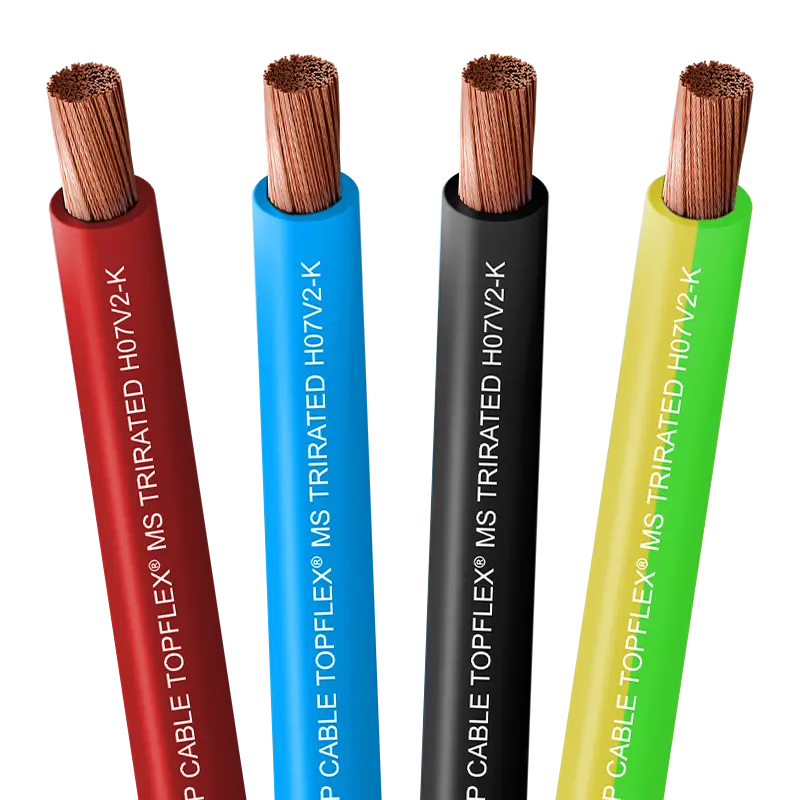

TOPFLEX MS Tri-rated (H07V2-K) is the high-temperature, extra-sliding panel wire that carries EN, BS, UL and CSA approval in a single cable — so the switchboard you build in Australia ships to North America, the UK or Europe without re-spec or re-wire. Class 5 flexible copper, 105 °C rated, 100% European Manufactured, stocked in Australia through TROPAC.
Shop TOPFLEX MS range Download Datasheet
Tri-rated EN · BS · UL · CSA
105°C UL/CSA max conductor
Class 5 Extra-sliding flexible Cu
Eca CPR fire rating
Australian stock QLD · NSW · VIC warehouses
Tri-rated compliance UL 758 · CSA C22.2 · BS 6231 · EN 50525-2-31
HAR · AENOR · UL Listed Authorised Australian distributor — Top Cable
PAC support Panel-wire selection & cut-to-length
Find your TOPFLEX MS

What are you wiring?

One tri-rated family, two voltage classes and a full colour range. Start with the job — we'll point you to the right conductor size and rating.

Control panels & switchboards
Internal wiring for a control panel or switchboard
Flexible, extra-sliding, high-temp and easy to dress into tight enclosures.
H07V2-K 450/750 V →
Export / multi-market equipment
Gear that ships to the US, UK or EU
One cable approved to UL + CSA + BS + EN — no re-spec per market.
Tri-rated full range →
High-density / high-current panels
Tight, hot panels where standard wire derates
105 °C service — often a smaller cross-section for the same load.
High-temp sizes →
Low-voltage device wiring
Internal wiring of small devices / 300/500 V
H05V2-K class with the full fine-colour range.
H05V2-K range →
Not sure
Need help matching standards for an export build?
Multi-standard compliance, sizing, colours and cut-to-length.
Talk to a PAC →
The compliance spec

When one approval isn't enough.

Standard panel wire is approved to one regional standard. Build for export with it and you re-spec — or re-wire — for every market. TOPFLEX MS carries four approvals in one cable.

Standard building / panel wire TOPFLEX MS Tri-rated
Standard building / panel wire TOPFLEX MS Tri-rated
Approvals One regional standard EN + BS + UL + CSA
Export-ready Re-spec per market One cable, all markets — no re-spec, one stock line
Hot-panel headroom 70–90 °C — derate or upsize 105 °C (UL/CSA) — headroom without upsizing
Install effort Class 1/2 — stiff in tight looms Class 5 extra-sliding — fast pulls through looms
Cold limit 0 °C typical −40 °C (fixed / protected)
Fire (CPR) Varies Eca, flame non-propagating

Indicative positioning for internal panel wiring. Voltage rating varies by standard — 450/750 V (EN), 600/1000 V (BS), 600 V (UL/CSA).

Top Cable TOPFLEX MS

Why it wins

The cable that simplifies compliance. TOPFLEX MS is built for one job done globally: internal wiring of cabinets, switchboards and machinery for equipment that crosses borders.

Tri-rated approval means a single part number satisfies North American (UL/CSA), UK (BS) and European/AU (EN) requirements — one line item instead of four, and no re-wire for the export build. Class 5 extra-sliding copper pulls fast through crowded conduit and dresses cleanly into tight switchboards.

One wire, every market. Standardising on TOPFLEX MS cuts SKUs and removes the compliance guesswork from multi-market panel builds.

Tri-rated for global compliance Compliance
UL 758, CSA C22.2, BS 6231 and EN 50525-2-31 in one cable — four markets, one part number.
105 °C high-temperature service Thermal
Reliable in high-density, high-current panels — often lets you drop a cross-section for the same load.
Extra-sliding Class 5 PVC Handling
Low-friction sheath pulls fast through crowded conduit and dresses into tight switchboards. 5× diameter min bend radius.
−40 °C to 105 °C range Durability
Protected indoor through cold-storage installs, across the full service range.
Enhanced fire safety Fire
Flame non-propagating to EN/IEC 60332-1 and UL VW-1; CPR reaction-to-fire class Eca.
European quality. Local supply.

Authorised Australian distributor — Top Cable.

TROPAC is the authorised Australian distributor for Top Cable — dedicated channel for the Australian market. Deep local stock of the TOPFLEX MS range across QLD, NSW and VIC — metre-marked (10 mm² up), cut to length and dispatched same-day. Full compliance documentation available — so you can specify with confidence that your cable meets all required specifications and performance requirements for the project.
Download compliance certificates
Resources & support

Specify with confidence.

Technical datasheet
Full current ratings, colours, packaging and all four standards for the TOPFLEX MS range.
Download TOPFLEX MS datasheet →
Tri-rated comparison chart
TOPFLEX MS against single-standard panel wire, standard by standard.
View comparison chart →
Compliance certificates
EN 50525-2-31, BS 6231, UL 758, CSA C22.2, HAR, AENOR, UL Listed, CE and RoHS on file.
Download certificates →
Other Top Cable Range

Running feeders, not panel wire?

TOPFLEX MS is internal panel and switchboard wire. For power runs and rugged jobs, step across to the rest of the Top Cable range.

Feeders & sub-mains
RV-K

The industrial all-rounder — 0.6/1 kV, 90 °C XLPE, Class 5, AD8 water immersion. For sub-mains, VSD feeders and cable trays.

Learn about RV-K →
Mobile & heavy-duty
XTREM H07RN-F

The heavy-duty rubber version — a tough rubber sheath for abrasion, impact and repeated flexing. For construction, mobile plant, pumps and hoists.

Learn about H07RN-F →

Need low-smoke zero-halogen for fire-critical, marine or public-space wiring? Browse the TOXFREE ZH range →
Need help specifying?

Talk to a Product Application Consultant.

Our PACs assist with multi-standard export builds, conductor sizing, colours, compliance and cut-to-length — cutting TOPFLEX MS to length off the reel before it ships. Technical support from local experts across QLD/NT, NSW/ACT and VIC/SA/TAS.

Talk to a PAC
Frequently asked questions

Top Cable TOPFLEX MS Tri-rated

  • Approved to multiple regional standards in one cable — here EN (50525-2-31), BS (6231), UL (758) and CSA (C22.2) — so the same wire suits AU/EU, UK and North American-bound equipment without re-spec.
  • H = harmonised · 07 = 450/750 V · V2 = high-temperature PVC insulation · K = Class 5 flexible conductor. The 300/500 V version is H05V2-K, for small-device wiring.
  • Building wire carries one regional approval and lower temperature ratings. TOPFLEX MS is tri-rated, 105 °C, extra-sliding and export-ready — one part number for multiple markets.
  • MS is high-temperature PVC, tri-rated, for general panels and export equipment. TOXFREE ZH is low-smoke zero-halogen for fire-critical, marine and public spaces. Choose MS for compliance and temperature; choose TOXFREE ZH where smoke and halogen matter in a fire.
  • 105 °C maximum conductor temperature (UL/CSA), 90 °C (EN/BS), down to −40 °C in fixed and protected installations.
  • Yes — flame non-propagating to EN/IEC 60332-1 and UL VW-1, with CPR reaction-to-fire class Eca.
  • Internal wiring of cabinets, switchboards and small devices, in conduit or flexible motor ducts. Suited to protected indoor installations (AD3 — water sprays).
  • 0.5–6 mm² on 100 m reels (barrels on request), 10–16 mm² on reels or drums, 25 mm² and up on drums. Meter-marked from 10 mm², and cut to length via TROPAC.
Top Cable · TOPFLEX MS Tri-rated

One cable. Four standards. Zero re-wire.

TOPFLEX MS is stocked across Australia through TROPAC, cut to length and meter-marked. Talk to a PAC for multi-standard export builds, sizing, colours and compliance — or browse the range online.

Shop All TOPFLEX MS Talk to a PAC
