2-Hole Pushbutton Enclosure, Grey Top Cover + Black Base

2-Hole Pushbutton Enclosure, Grey Top Cover + Black Base

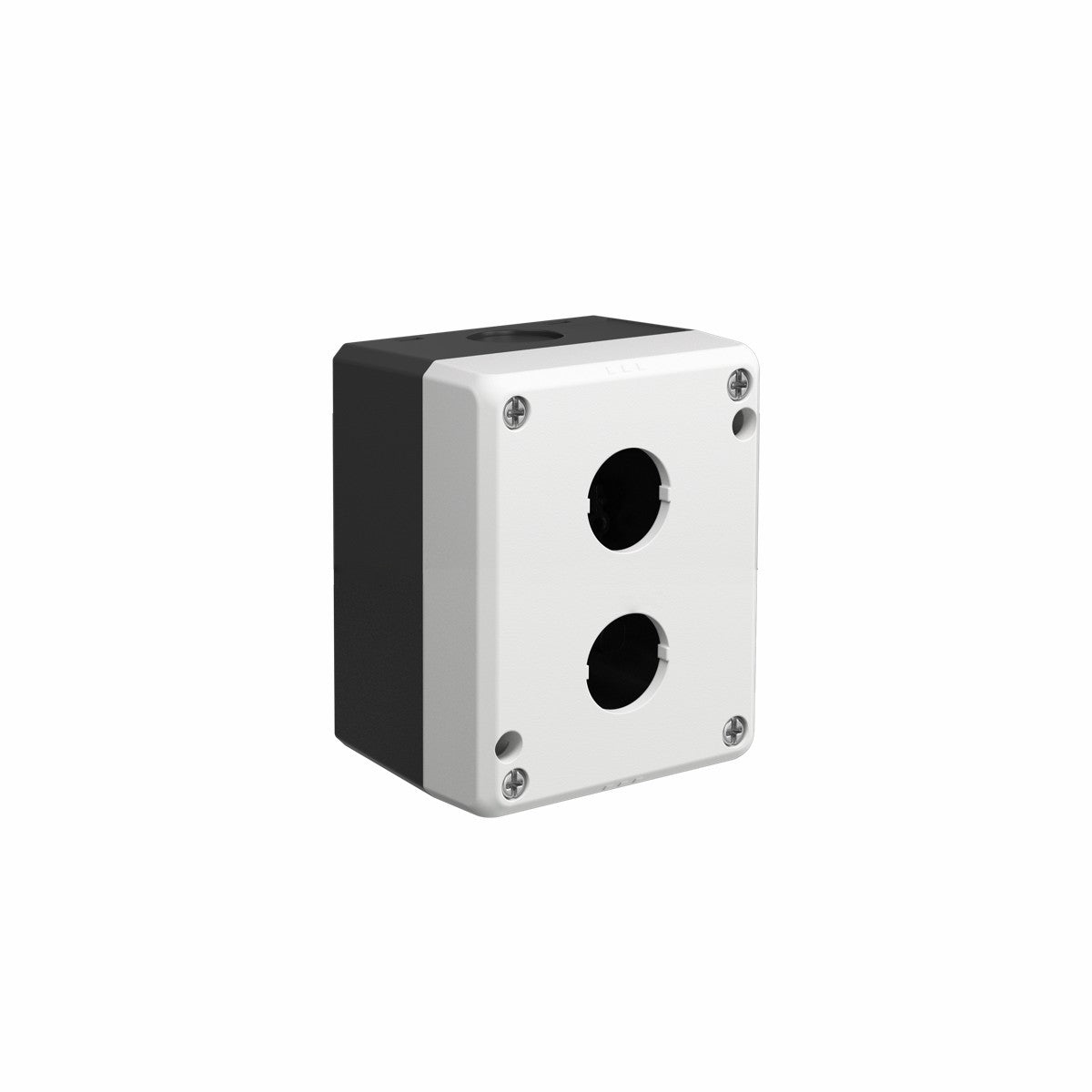

The CI02BAA002 is a two-aperture control station enclosure from the Telergon CI0 range, moulded in ABS with a grey cover on a black base. Two 22mm apertures on 50 mm centres suit the common start/stop or up/down pairing, mounted where there is no panel to cut into.

Features and Specifications

Protection: IP65.

Apertures: 2 × Ø22.3mm (R11.15) on 50 mm centres, suits all LA1 22mm operators.
Cable entry: Ø20.20 knockout.

Dimensions:

140 mm high × 76 mm wide × 59.6 mm deep

Materials:

ABS cover and base

Operators and contact blocks are ordered separately. The enclosure is supplied empty — add the LA1 operators and the LAA-series contact blocks that match your circuit.

Manufacturer: Telergón, S.A.U.

Note: Please choose product carefully. Product selection is the responsibility of the Purchaser. Refer to relevant Standards, project requirements and technical specifications to ensure that the product meets requirements.

TROPAC's standard warranty covers all products. A 5-year warranty applies to eligible IP Enclosures products. Refer to Refunds & Returns for more information.
