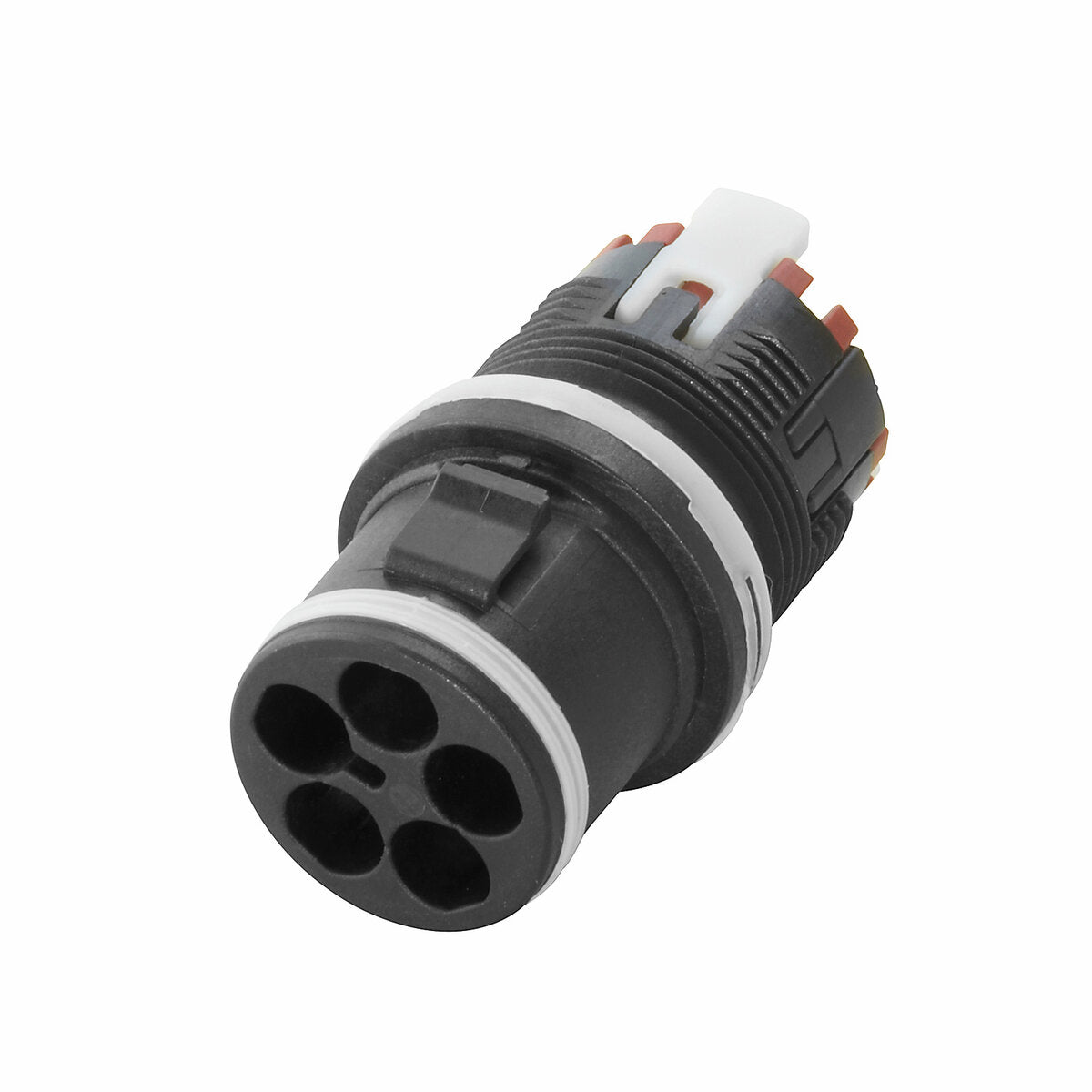

IP68 Panel Mount Cable Connector M20 5-Pole Male Plug, Push-In Terminals
Regular price
$44.13
ex. GST
$48.54
inc. GST
Out of stock
Contact us for lead time
0 in stockContact us for lead time →
- Material
- IP Rating
- Voltage
- Current
- Poles
- Conductor Size
Standards & certifications
IP68Continuous immersion
Weidmüller RC M P5 M20 C 5-pole male plug, rated 17.5 A / 500 V and IP68 when mated. Field-wireable with PUSH IN terminals (press the actuator, insert the wire, no tools) for 0.25–1.5 mm² wires and cable diameters 7–13 mm. Mounts in an M20 hole in an enclosure or equipment wall and mates with the matching inline connector. Reverse polarity protected.
Parts needed for a complete connection
- Mating connector: IP68 Inline Cable Connector 5-Pole Female Socket (2934520000)
- Protective cap (keeps IP68 when unplugged): Protective Cap for IP68 Male Plug (2820090000)
Specifications
| Weidmüller type | RC M P5 M20 C |
|---|---|
| Configuration | Panel mount, M20 thread — male plug |
| Poles | 5 |
| Wire termination | PUSH IN with actuator |
| Rated current / voltage | 17.5 A / 500 V |
| Wire size | 0.25–1.5 mm² |
| Cable diameter | 7–13 mm |
| Protection | IP68 when mated |
| Housing material | PA 66 |
| Operating temperature | -40 °C to 60 °C |
| Approvals | RoHS |
