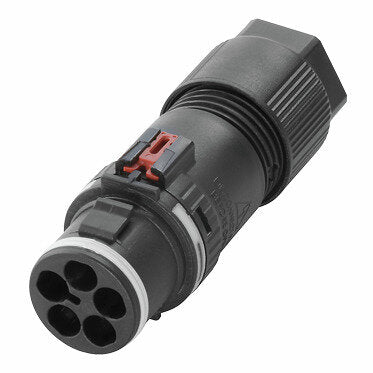

IP68 Inline Cable Connector 5-Pole Male Plug, Push-In Terminals

Specifications

• Material Polyamide
• IP Rating IP68
• Voltage 500V
• Current 17.5A
• Poles 5 Pole
• Conductor Size 0.25–1.5 mm²

Standards & Conformities

Standards & certifications

IP68Continuous immersion

Documents

Product Datasheet PDF

Full Description

Weidmüller RC M P5 C 5-pole male plug, rated 17.5 A / 500 V and IP68 when mated. Field-wireable with PUSH IN terminals (press the actuator, insert the wire, no tools) for 0.25–1.5 mm² wires and cable diameters 7–13 mm. Joins two cables in the field, or mates with the matching M20 panel mount connector. Reverse polarity protected.

Parts needed for a complete connection

• Mating connector: IP68 Inline Cable Connector 5-Pole Female Socket (2934520000)
• Protective cap (keeps IP68 when unplugged): Protective Cap for IP68 Male Plug (2820090000)

Specifications

Weidmüller type	RC M P5 C
Configuration	Inline — male plug
Poles	5
Wire termination	PUSH IN with actuator
Rated current / voltage	17.5 A / 500 V
Wire size	0.25–1.5 mm²
Cable diameter	7–13 mm
Protection	IP68 when mated
Housing material	PA 66
Operating temperature	-40 °C to 60 °C
Approvals	RoHS

Warranty

TROPAC's standard warranty covers all products. A 5-year warranty applies to eligible IP Enclosures products. Refer to Refunds & Returns for more information.
