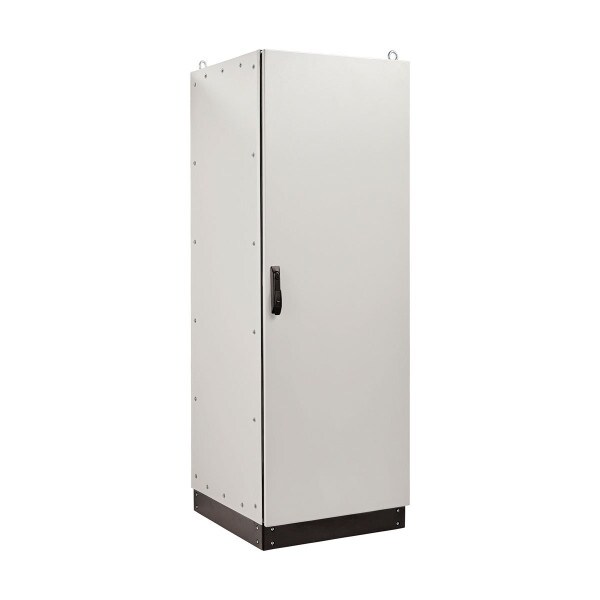

Electrical Cabinet 2020H x 600W x 800D IP55 Grey

Electrical Cabinet 2020H x 600W x 800D IP55 Grey

IP Enclosures MF1S range of floor standing electrical cabinets are rated for protection up to IP55 and are suitable for general industrial applications.

Features and Specifications

Protection: IP55 (Independent accredited test laboratory).

Standard: IEC 62208, IEC/EN/AS60529, RoHS

Material:

Main Frame: 2.0mm Galvanised Steel W Profile System
Side, Rear & Roof Panels: 1.2mm Powder-Coated Galvanised Steel Sheet
Front Door: 2.0mm Powder-Coated Galvanised Steel Sheet
Mounting Plates: 2.0mm Galvanised Steel Sheet
Seal: EPDM

Frame:

The robust modular main structure is fabricated using 2.0mm galvanised steel sheet W Profile system with 20mm hole pattern.

Door:

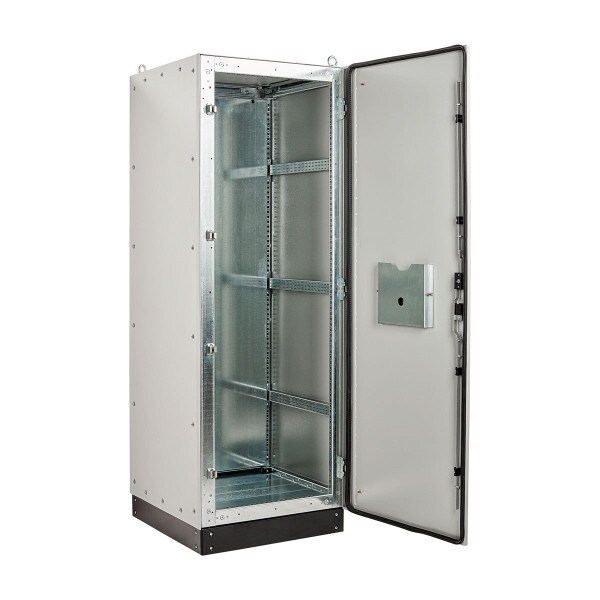

The robust door is fabricated using 2.0mm powder coated galvanised steel sheet and incorporates four concealed hinges. The door is designed for a 135° opening. Each door contains integral cable management rails with 20mm hole pattern, M6 earth stud and document pocket.

Side, Rear and Roof Panels:

Removable panels are fabricated using 1.2mm powder coated galvanised steel sheet.

Base:

Base is 100mm high.

Enclosure Seal:

High quality EPDM replaceable door seal

Enclosure Lock:

4 point locking system with key-lock swing handle.

Device Mounting Plate:

The device mounting plate is fabricated using 2.0mm mm galvanised steel sheet, pressed to provide additional strength.

Earthing:

All panels are earthed to provide earthing continuity.

Surface Treatment:

UL approved epoxy polyester powder-coated with a textured finish. 80-120 micron average thickness. Colour RAL7035.

TROAPC's standard warranty covers all products. The standard 5-year warranty applies to applicable IP Enclosures products. Refer to Refunds & Returns for more information.
