White Flush Pushbutton 22mm IP65, Momentary

White Flush Pushbutton, Momentary, 22mm

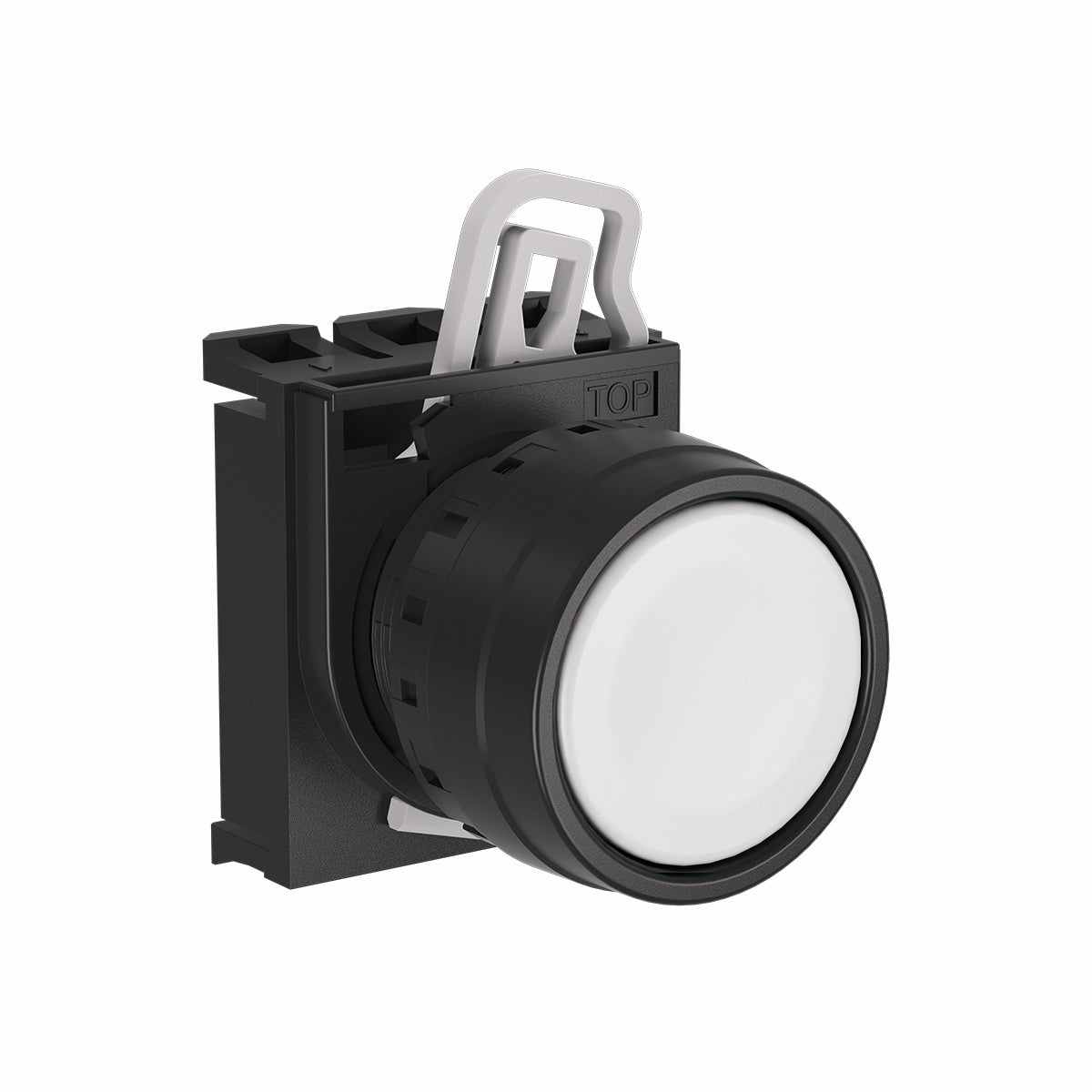

The LA12100W is a white flush momentary pushbutton for 22mm panel cut-outs. The flush profile sits level with the operator plate, which suits control stations where an inadvertent knock must not actuate the circuit.

Features and Specifications

Protection: IP65. Operating range -20°C to +55°C.

Standards (& Conformities): IEC 60947-1, IEC 60947-5-1, CE, RoHS.

Mounting:

Panel cut-out: Ø22.3mm ±0.2 (M22×1)
Panel thickness: 0.8–6 mm

Contact blocks are ordered separately. This operator ships without contacts. Add the LAA-series block that matches your circuit — LAA10 (1NO), LAA01 (1NC), LAA11 (1NO+1NC), LAA20 (2NO) or LAA02 (2NC).

Materials:

POM button, PA66 cover and housing

Manufacturer: Telergón, S.A.U. — European-engineered, CE marked to the Low Voltage (2014/35/EU) and RoHS (2011/65/EU) Directives.

Note: Please choose product carefully. Product selection is the responsibility of the Purchaser. Refer to relevant Standards, project requirements and technical specifications to ensure that the product meets requirements.
