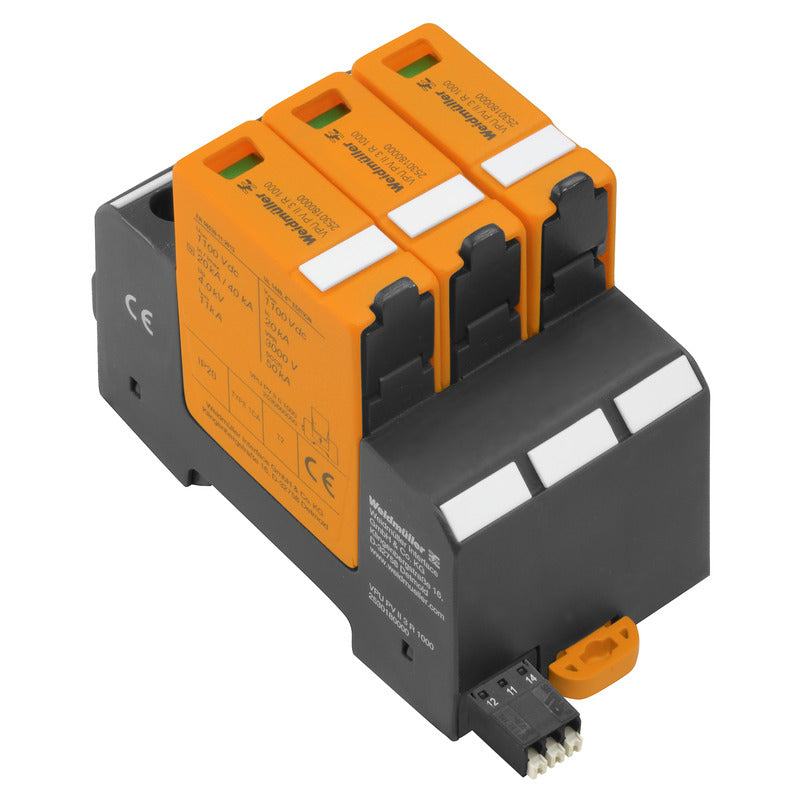

Photovoltaic Surge Arrester, Type II, 3 Pole, Remote Contact, 1000VDC - VPU PV II 3 R 1000V

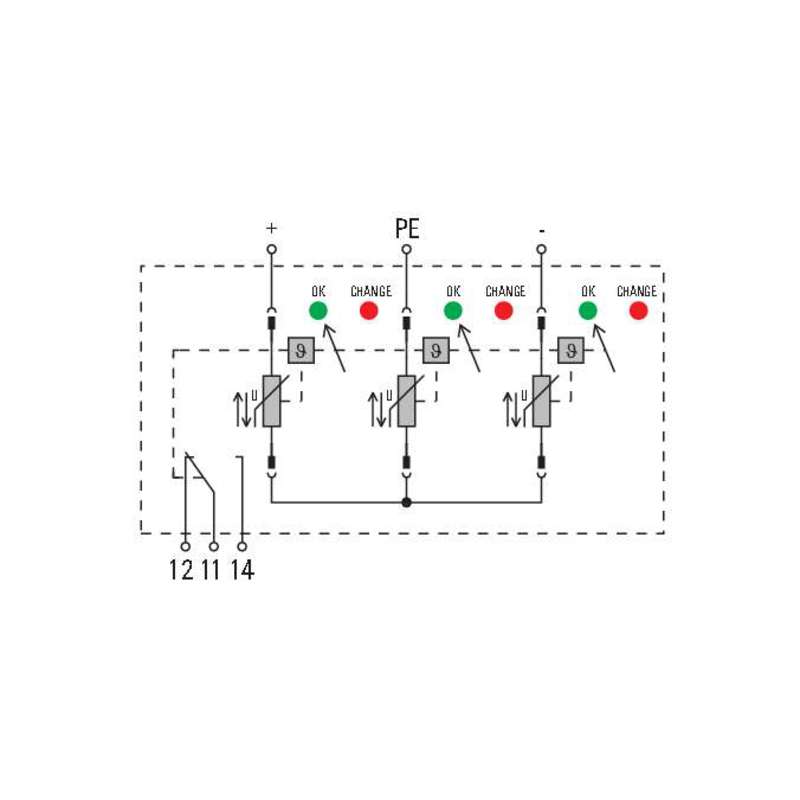

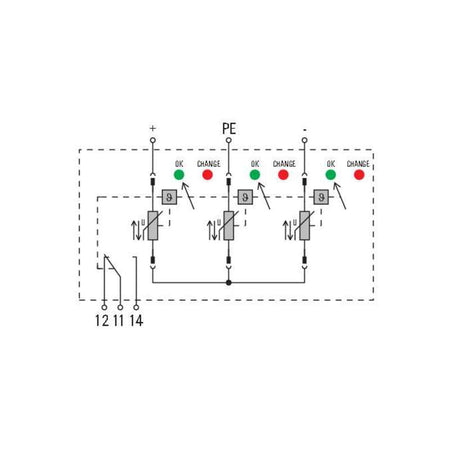

The Weidmüller VPU PV II 3 R 1000V is a three-pole Type II surge arrester for the DC side of a photovoltaic array, mounted in string combiner boxes and inverter DC input compartments to protect the positive and negative conductors and the earth path. This 1000 V class is selected against the maximum system voltage of the strings — 1500 V array architectures take the 1500 V version instead — and the R suffix adds a floating changeover contact so an end-of-life module is signalled to plant monitoring rather than found at the next inspection.

• SPD type: Type II, to EN 61643-31 / EN 50539-11
• Ucpv (max. PV system voltage): 1100 V DC
• Nominal discharge current In (8/20 µs): 20 kA
• Total discharge current Itotal (8/20 µs): 50 kA
• Protection level Up (+/−, −/PE, +/PE): ≤ 3.8 kV
• Short-circuit current ISCPV: 11,000 A
• Remote signalling contact: 250 V, 1 A, changeover (1 CO)
• Spare arrester module: VPU PV II 0 1000, order no. 2530660000
• Mounting: TS 35 rail, 54 mm wide, IP20
