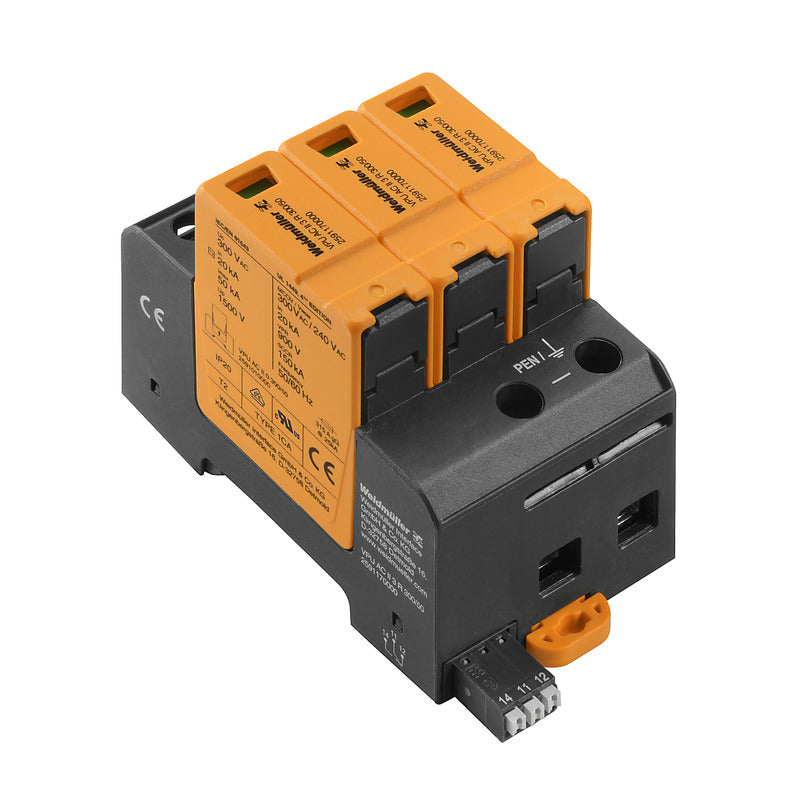

VPU AC II 3 R 300V/50KA Surge Arrestor — Weidmuller

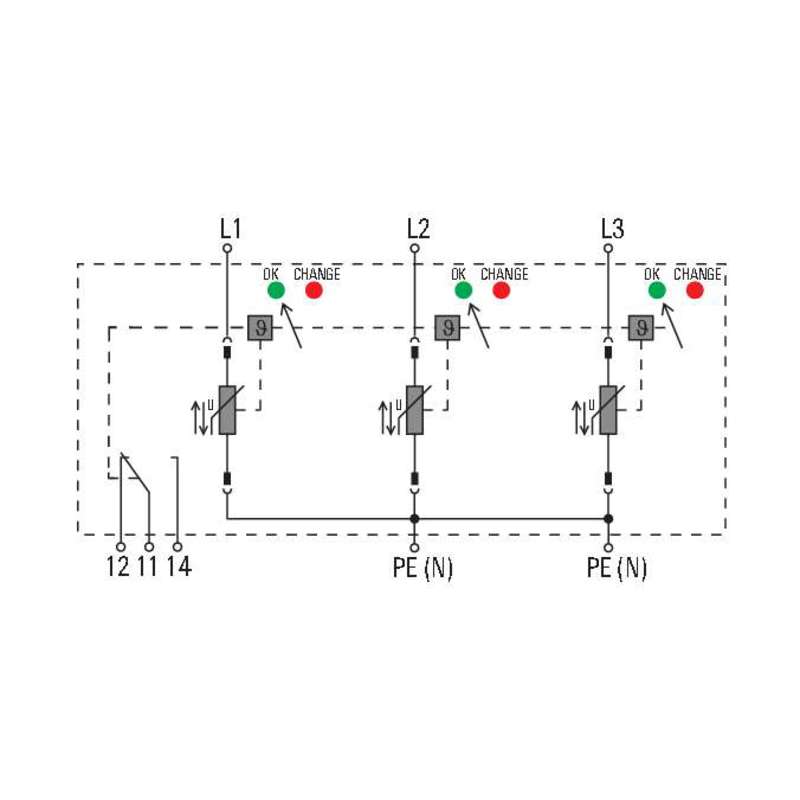

2591170000 - image 2
VPU AC II 3 R 300V/50KA Surge Arrestor — Weidmuller
2591170000 - image 2

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

Weidmuller

Type II Surge Arrester, 3 Phase, Remote Contact, 300V 50kA - VPU AC II 3 R 300V/50KA

SKU
$223.14 ex. GST $245.45 inc. GST
In stock
19 in stock across 3 warehouses
  • Height (mm) 105
  • Width (mm) 54
  • Depth (mm) 68
  • Colour Orange / Black
  • IP Rating IP20
  • Weight (kg) 0.389
  • Voltage 300V
  • Poles 3 Pole
  • Flammability Rating V-0

Standards & certifications

IP20Ingress protection UL 1449US safety listed CEEU conformity RoHSHazard-free ULUS safety listed IEC/EN 6164311 Tested standards
Product Datasheet PDF

The Weidmüller VPU AC II 3 R 300V/50KA is a three-pole surge arrester for TN-C systems, with a remote signalling contact, mounted on TS 35 rail in a distribution board. It protects the three phases to earth where no separate neutral is distributed, and takes the standard VPU AC II 0 300/50 plug-in module (spare 2591010000) rather than the Y-series module used by order number 2639330000.

  • SPD type: Type II + Type III (T2, T3) to IEC/EN 61643-11
  • Uc: 300 V AC
  • In (8/20 µs): 20 kA
  • Imax (8/20 µs): 50 kA
  • Up: ≤ 1500 V (L/N-PE)
  • Poles: 3 (TN-C)
  • Remote contact: 250 V, 1 A, 1 CO (changeover)
  • Protection modules: replaceable plug-in arresters, spare 2591010000
  • Mounting: TS 35 rail, 54 mm (3TE), IP20
