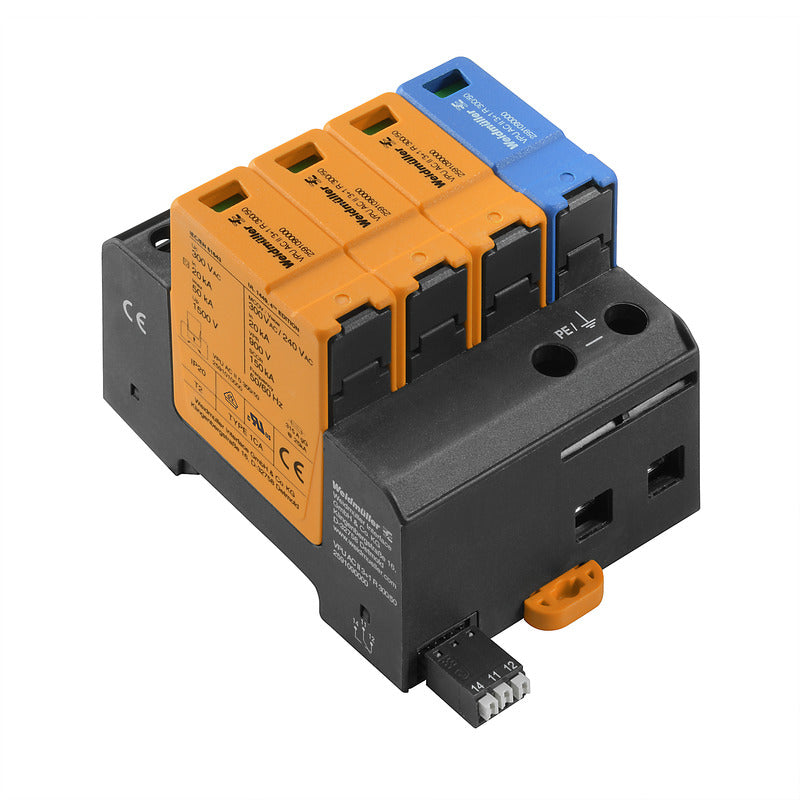

Type II Surge Arrester, 3 Phase + Neutral, Remote Contact, 300V 50kA - VPU AC II 3+1 R 300V/50KA

The Weidmüller VPU AC II 3+1 R 300V/50KA is a four-pole surge arrester in a 3+1 arrangement with a remote signalling contact, for the main or sub-distribution board of a 230/400 V installation. The separate N-PE summation arrester makes it the correct choice for TT and IT systems as well as TN-S and TN-C-S, where a 4-pole (4+0) unit would not be permitted.

• SPD type: Type II + Type III (T2, T3) to IEC/EN 61643-11
• Uc: 300 V AC; 305 V AC (N-PE)
• In (8/20 µs): 20 kA per pole; 40 kA (N-PE)
• Imax (8/20 µs): 50 kA per pole; 65 kA (N-PE)
• Up: ≤ 1500 V (L/N-PE); ≤ 1.5 kV (N-PE)
• Poles: 4 (3+1 — TN-C-S, TN-S, TT, IT with or without N)
• Remote contact: 250 V, 1 A, 1 CO (changeover)
• Protection modules: replaceable plug-in arresters
• Mounting: TS 35 rail, 72 mm (4TE), IP20
