Home » Industrial Electrical» Circuit Protection» Type II Surge Arrester, Single Phase, Remote Contact, 300V 50kA - VPU AC II 1 R 300V/50KA

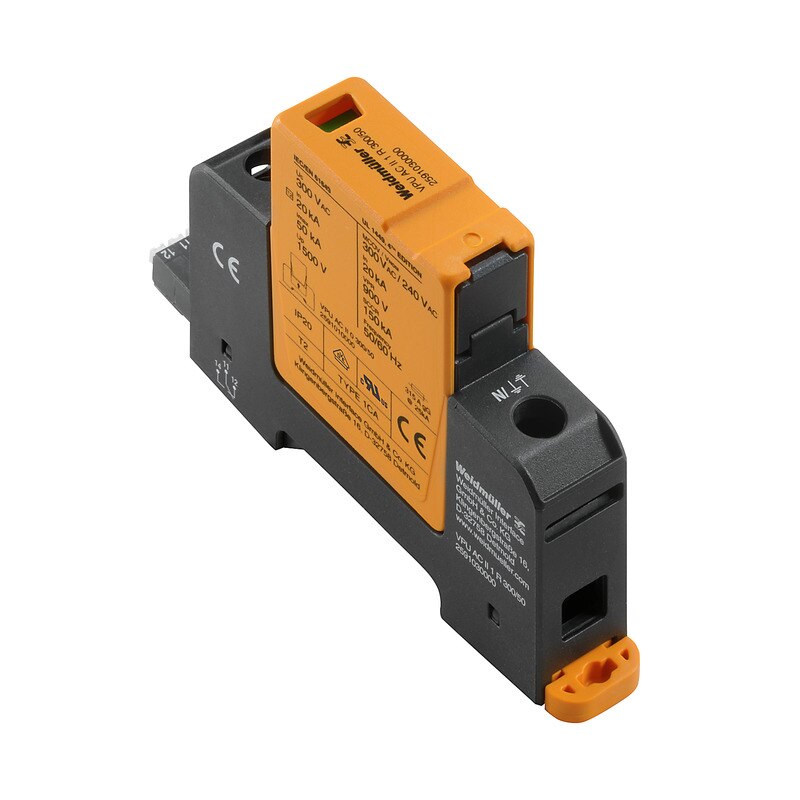

VPU AC II 1 R 300V/50KA Surge Arrestor — Weidmuller
2591030000_2
VPU AC II 1 R 300V/50KA Surge Arrestor — Weidmuller
2591030000_2

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

Weidmuller

Type II Surge Arrester, Single Phase, Remote Contact, 300V 50kA - VPU AC II 1 R 300V/50KA

SKU
$83.69 ex. GST $92.06 inc. GST
In stock
1 in stock across 3 warehouses
  • IP Rating IP20
  • Voltage 300V
  • Poles 1 Pole

Standards & certifications

IP20Ingress protection

The Weidmüller VPU AC II 1 R 300V/50KA is a single-pole surge arrester for TN systems with a remote signalling contact, mounted on TS 35 rail. Choose it over the plain VPU AC II 1 where the board is unattended or remotely monitored and a failed protection module must raise an alarm rather than wait for a physical inspection.

  • SPD type: Type II + Type III (T2, T3) to IEC/EN 61643-11
  • Uc: 300 V AC
  • In (8/20 µs): 20 kA
  • Imax (8/20 µs): 50 kA
  • Up: ≤ 1500 V (L/N-PE)
  • Poles: 1 (single-phase, TN)
  • Remote contact: 250 V, 1 A, 1 CO (changeover)
  • Protection module: replaceable plug-in arrester, spare 2591010000
  • Mounting: TS 35 rail, 18 mm (1TE), IP20
