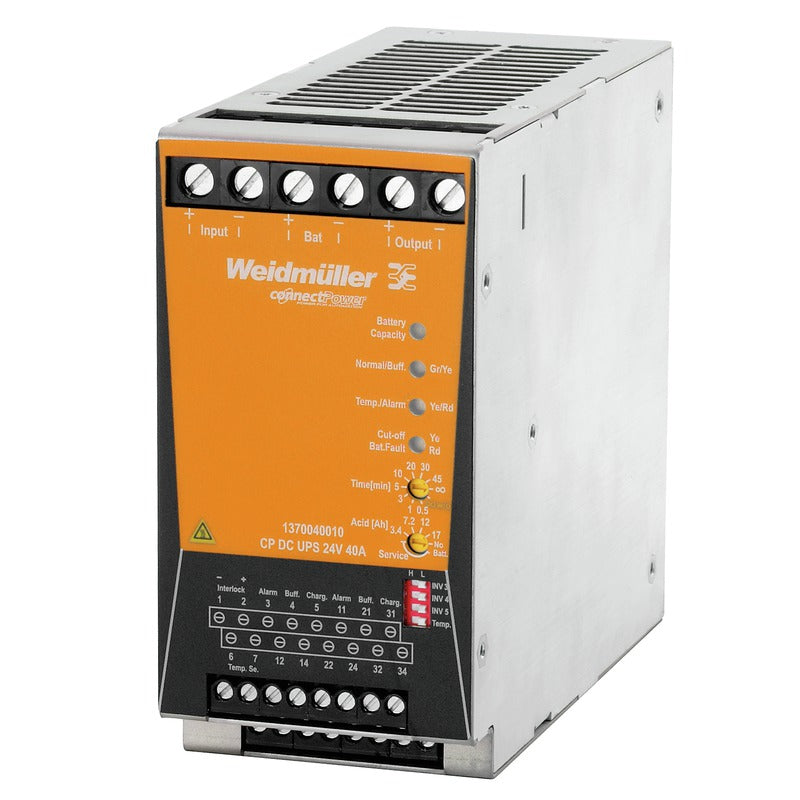

CP DC-UPS 24V 40A UPS Module
Ask an expert!
The Weidmüller CP DC-UPS 24V 40A is the high-current model in the CP DC-UPS range, designed for 24VDC control systems with larger continuous loads. In normal operation the input voltage passes directly through to the load. On mains failure the system switches instantly to battery operation, keeping PLCs, sensors, and critical loads running without interruption. Three relay outputs and three active transistor outputs provide full remote monitoring and control via PLC or DCS. Compatible with Weidmüller CP A Battery modules from 3.4Ah to 17Ah, with buffer times selectable from 30 seconds to indefinite via front-panel rotary switch.

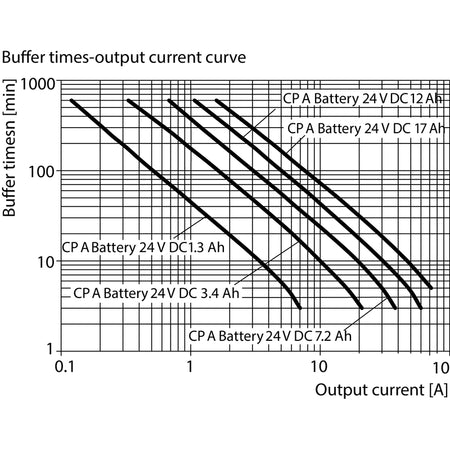

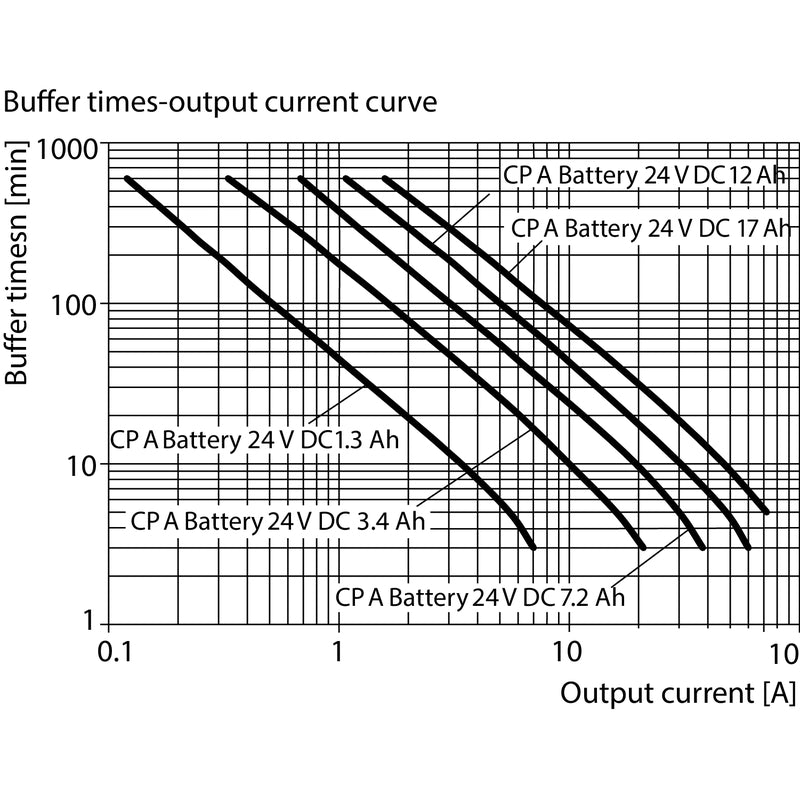

| Output Voltage | 24V DC |
|---|---|
| Output Current | 40A continuous |
| Output Current, max. | 48A |
| Max. Approved Input Current | 52A |
| Input Voltage Range | 20–30V DC (nom. 24V DC) |
| Efficiency | ≥96% (charging) / ≥98% (charged or buffer mode) |
| Battery Compatibility | Lead-acid VRLA 3.4, 7.2, 12, 17Ah (CP A Battery series, max. 2 in parallel) |
| Buffer Times | 0.5, 1, 3, 5, 10, 20, 30, 45 min, ∞ — selectable via rotary switch |
| Battery Availability Test | Every minute (integrated charger) |
| Remote Monitoring | 3× relay outputs + 3× active transistor outputs |
| Status Indication | Green/yellow LED: normal/buffering — Yellow/red LED: temperature alarm, switch-off, battery fault |
| Control Input | Battery interlock (remote disconnection) |
| Connection | Screw connection, 0.5–16mm² |
| Housing | Metal, corrosion resistant, DIN-rail (TS35), IP20 |
| Dimensions (H×W×D) | 130 × 66 × 150 mm |
| Operating Temperature | −25°C to +70°C |
| MTBF | >500,000 h (IEC 61709 / SN29500) |
| Certifications | CE, cULus (E258476), DNV-GL, TÜV Type Approved, RoHS Conform |
| Country of Manufacture | Germany |
| Part Number | 1370040010 |
- 40A continuous output — the high-current model in the CP DC-UPS range; max. output 48A
- Instant switchover to battery on mains failure — no interruption to connected loads
- 3× relay outputs and 3× transistor outputs for full PLC/DCS remote monitoring and control
- Buffer times selectable from 30 seconds to indefinite; battery tested every minute by integrated charger
- Compatible with CP A Battery modules: 3.4, 7.2, 12, 17Ah (max. 2 in parallel)
- MTBF >500,000 h — CE, cULus, DNV-GL, TÜV Type Approved, RoHS Conform. Made in Germany.
