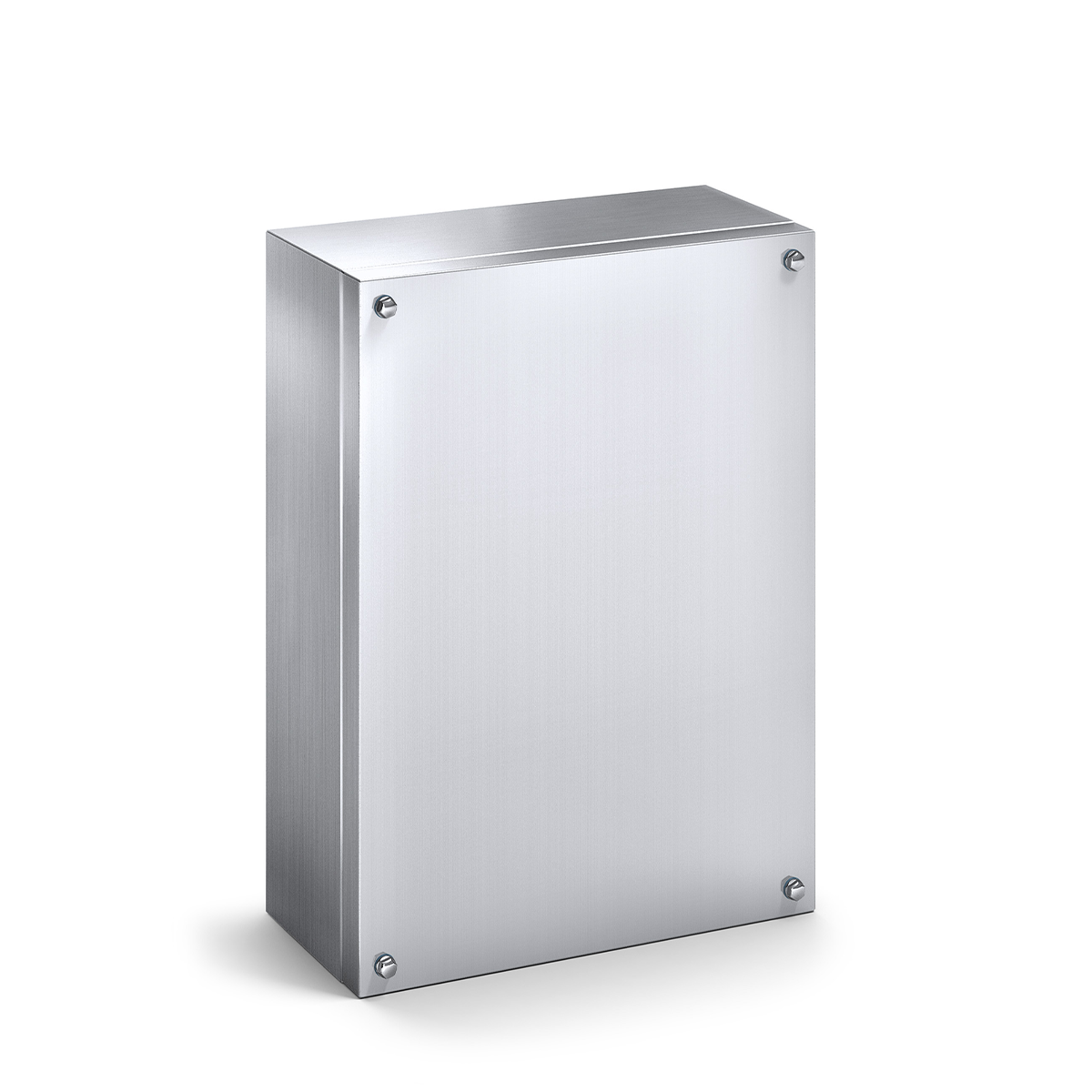

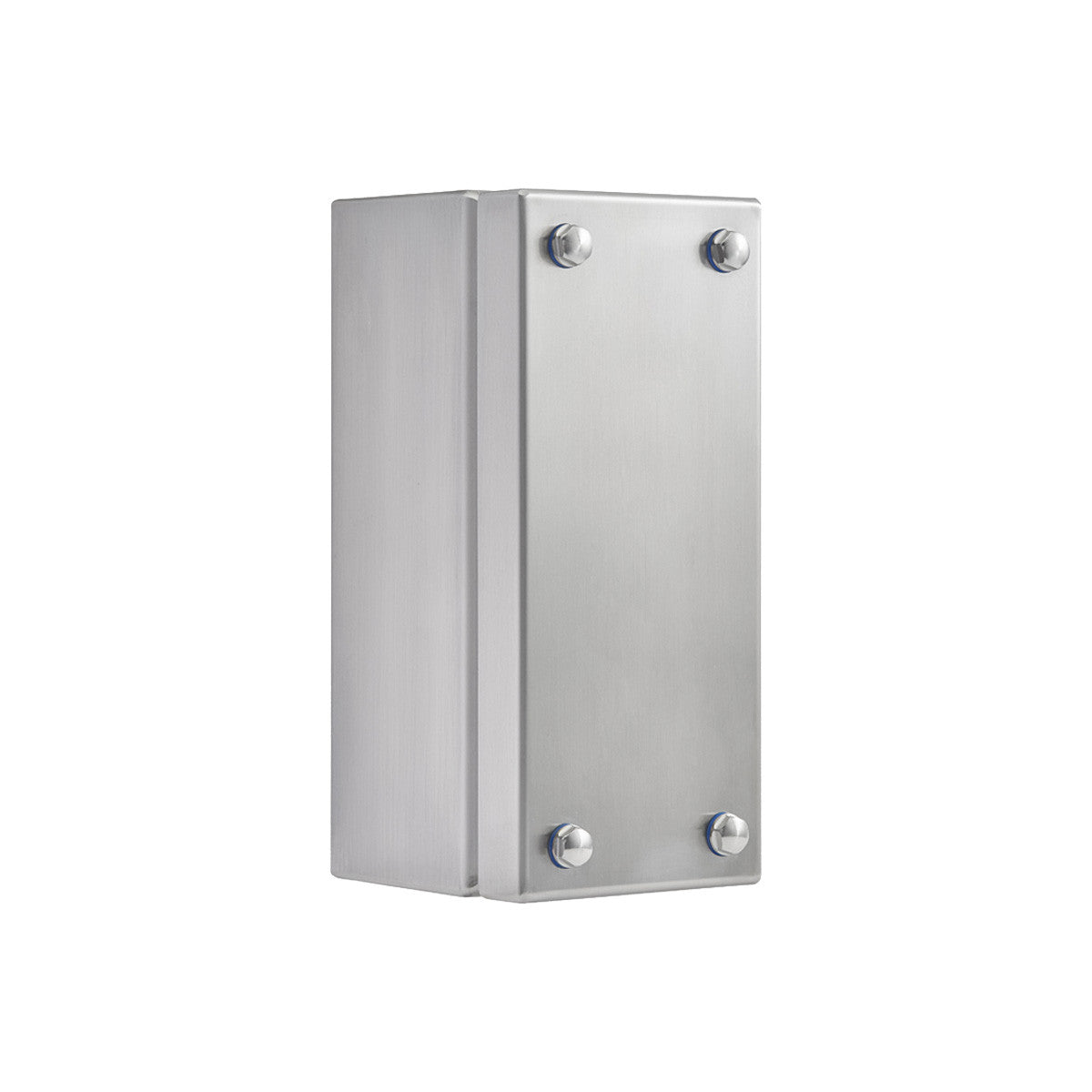

Terminal Box 316 Stainless Steel 160H x 100W x 100D

SKU
$190.38 ex. GST $209.42 inc. GST
Min. order: 10
In stock
32 in stock across 3 warehouses
Free Shipping

Ask an expert!

Chat Email 1300876722
  • Height (mm) 160
  • Width (mm) 100
  • Depth (mm) 100
  • Material Stainless Steel 316
  • IP Rating IP66

Standards & certifications

IP66Dust-tight · powerful jets
Product Datasheet PDF

Terminal Box 316 Stainless Steel 160H x 100W x 100D

The IP Enclosures SSTB Range of grade 316 stainless steel terminal boxes are designed for use even in the most demanding industrial environments.

Protection: Complies with IP66, IP67, NEMA 4x

Standard: UL508A Certified


Features and Specifications

Material:

– Body: 1.0mm. Grade 316 stainless steel
– Door: 1.0mm. Grade 316 stainless steel
– Seal: Silicone

Body:

The robust body is fabricated using 1.0mm Grade 316 Stainless Steel and incorporates a high quality
Silicone seal.

Lid/Door:

The robust pre-drilled lid/door is fabricated using 1.00mm. Grade 316 Stainless Steel and is fastened using screws.

Seal:

A high quality Silicone seal.

Internal Plate:

The inner plate is fabricated using 2.5mm sheet steel, supplied pre-fitted into the terminal box as standard.

TROAPC's standard warranty covers all products. A 5-year warranty applies to applicable IP Enclosures products. Refer to Refunds & Returns for more information.
