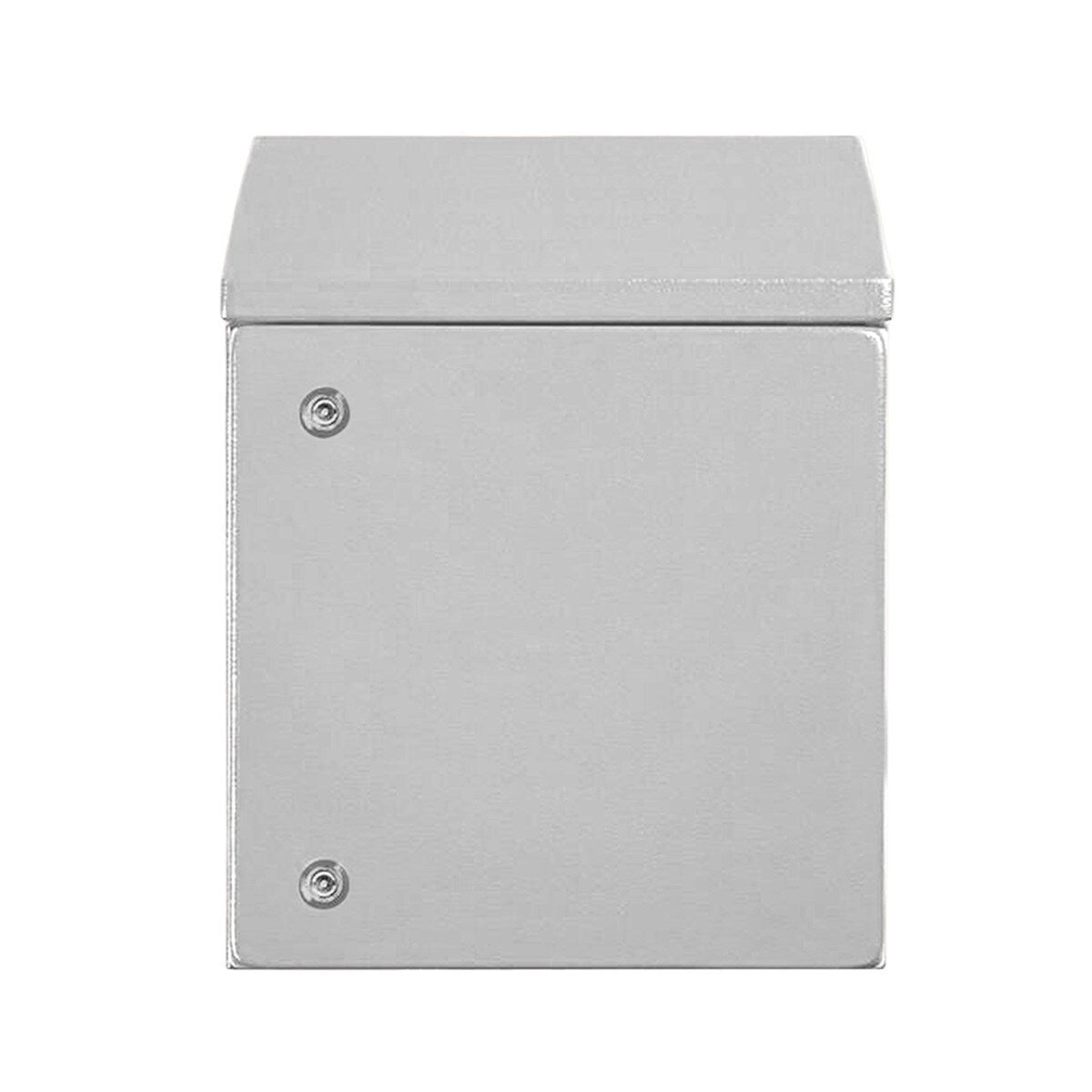

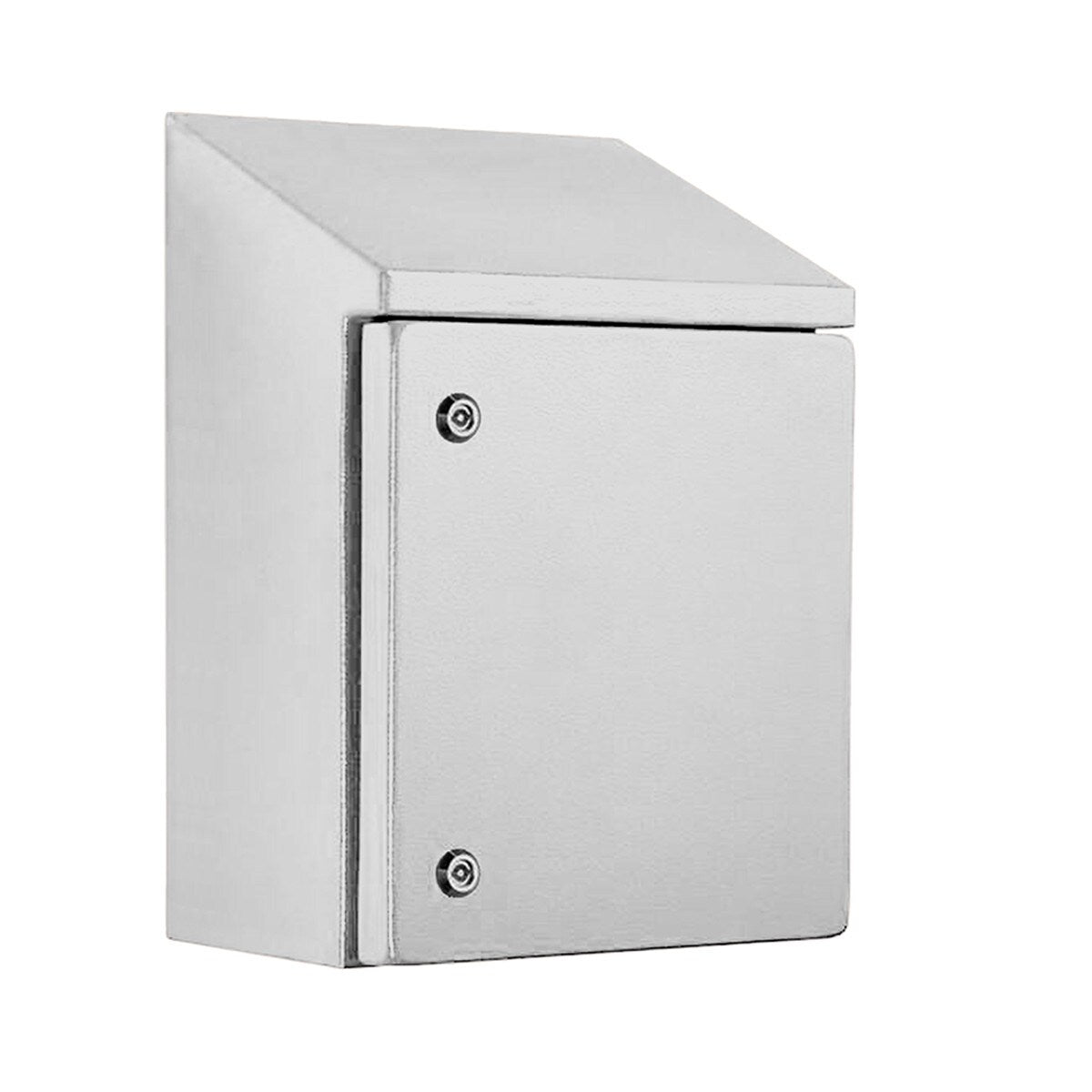

Sloping Roof Electrical Enclosure 600H x 600W x 300D IP66 Grey

Sloping Roof Electrical Enclosure 600H x 600W x 300D IP66 Grey

At 600×600×300mm, this SSR1 sloping roof enclosure gives control and switchgear equipment a full-depth mounting plate while its 30° sloped roof sheds dust, debris and rainwater in outdoor or heavy-industrial installations where a flat-roofed enclosure would collect contaminants.

Features and Specifications

Protection: IP66 IK10 (NEMA 4) (Independent accredited test laboratory).

Standards (& Conformities): IEC/EN 60529, IEC/EN 62208, IEC/EN 61439, UL, RoHS, CE, UKCA.

Material:

Body: 1.5mm galvanised steel sheet
Door: 1.5mm galvanised steel sheet
Device Mounting Plate: 1.5mm galvanised steel sheet
Seal: Polyurethane

Enclosure Body:

The robust monoblock body with sloping roof is fabricated using 1.5mm galvanised steel sheet. Flat face sealing surfaces are provided to increase seal life. Pre-fitted blind nutserts are incorporated to accommodate mounting. The roof consists of a sloped roof design that protrudes past the seal, flush with the door face. Integral device plate mounts and M6 earth studs are provided.

Enclosure Door:

The robust surface mounted door is fabricated using 1.5mm galvanised steel sheet and incorporates concealed removable hinges with captive pins. The door is designed for a 110° opening. Each door contains cable management rails, an M6 earth stud and a high quality machine-applied foamed in place (FIP) Polyurethane seal.

Enclosure Seal:

A high quality machine-applied full perimeter UL listed Polyurethane seal foamed in place (FIP) provides excellent sealing over a long life. Temperature resistance −40°C to +80°C (160°C short-term loading).

Enclosure Lock:

5mm double bit insert quarter turn lock with key.

Device Mounting Plate:

The device mounting plate is 1.5mm galvanised steel sheet, pressed to provide strength and pre-fitted into the enclosure as standard.

Surface Treatment:

UL approved AkzoNobel epoxy polyester powder coated with a textured finish, 80-120 micron average thickness, in RAL7035 light grey.

Note: Please choose product carefully. Product selection is the responsibility of the Purchaser. Refer to relevant Standards, project requirements and technical specifications to ensure that the product meets requirements. For more information on product selection, refer to this link.

TROAPC's standard warranty covers all products. A 5-year warranty applies to applicable IP Enclosures products. Refer to Refunds & Returns for more information.
