Stainless Steel Quarter Turn Keyed Lock

SKU
$86.17 ex. GST $94.79 inc. GST
In stock
96 in stock across 3 warehouses
Free Shipping

Ask an expert!

Chat Email 1300876722
  • Material Stainless Steel 316
  • IP Rating IP65

Standards & certifications

IP65Dust-tight · water jets

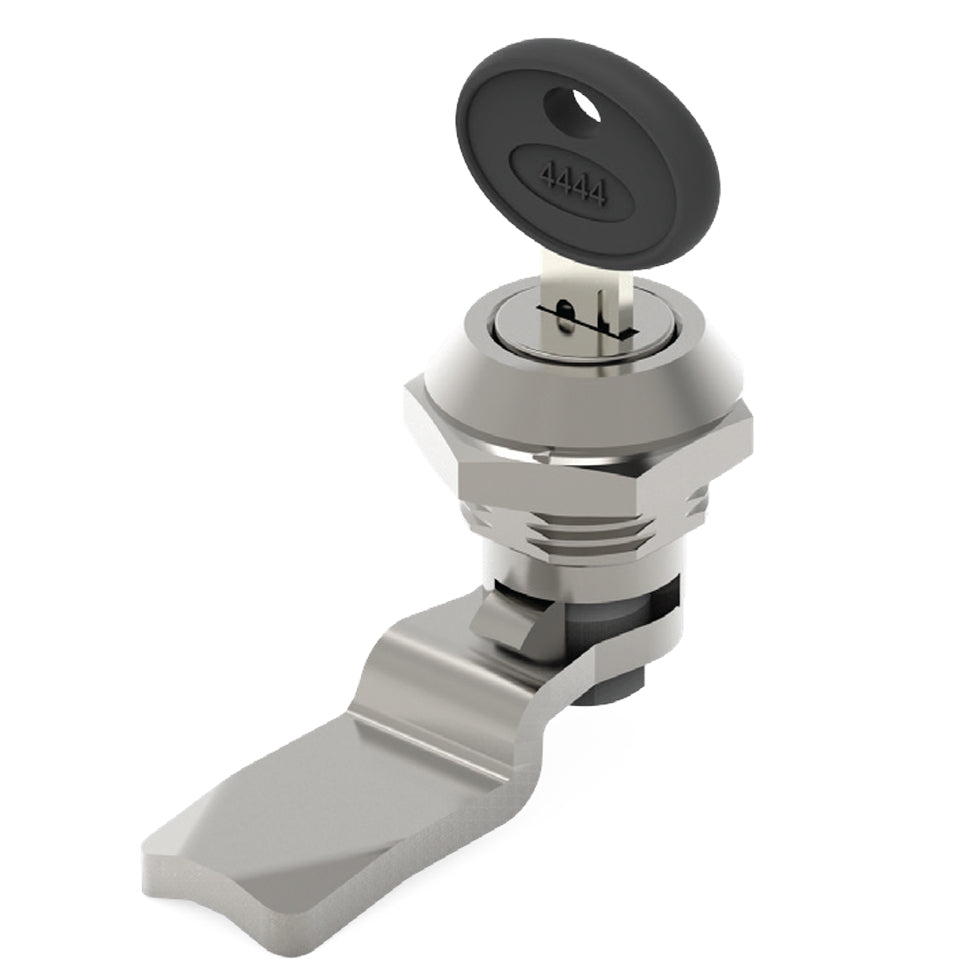

Stainless Steel Quarter Turn Lock Keyed for Electrical Enclosures

FEATURES

– Cam does not rotate beyond quarter turn due to stop lip.

MATERIAL

HOUSING: Stainless Steel (AISI 316)
CAM: Stainless Steel (AISI 304)
GASKET: Rubber
IP RATING: IP65

DRIVERS

IP-L078: Keyed Alike

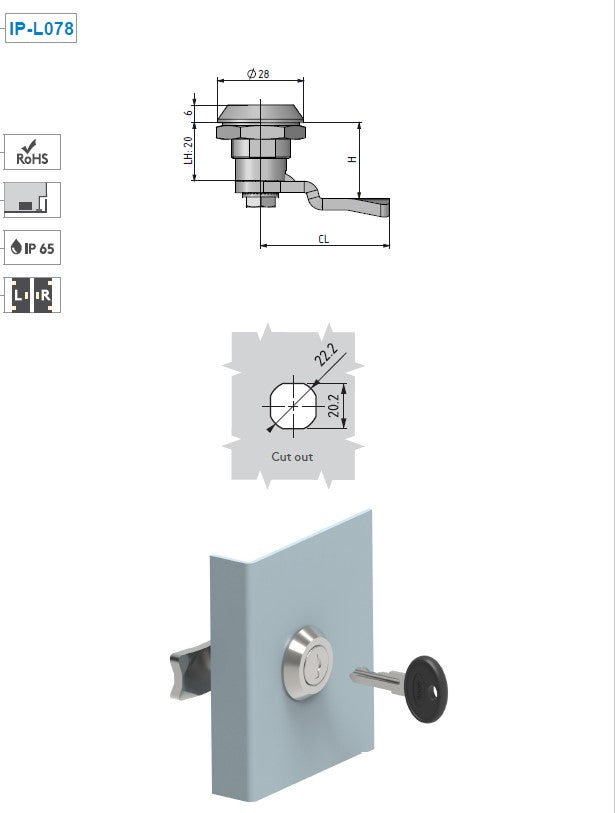

DIMENSIONS

H=27mm

CL=49mm
