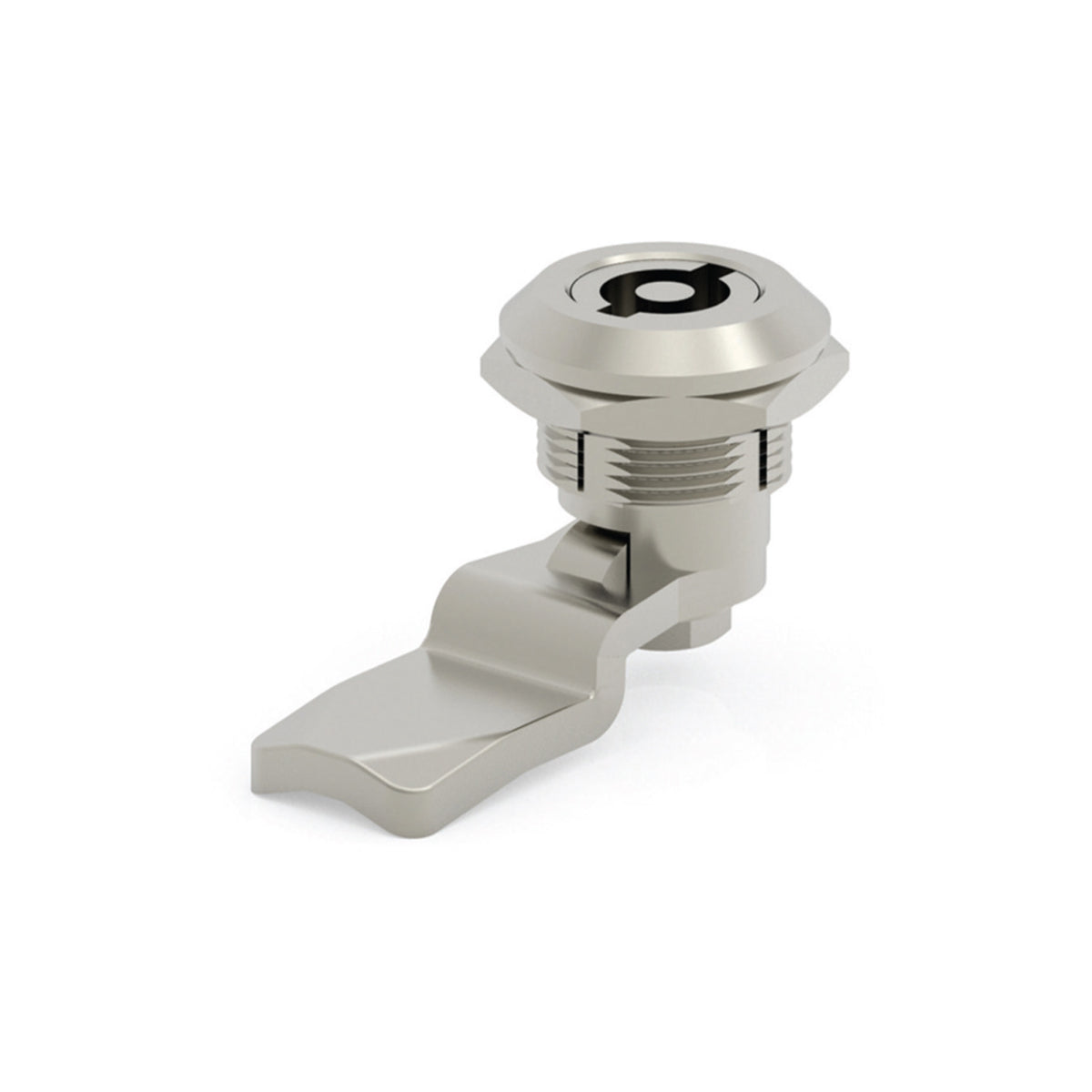

Stainless Steel Quarter Turn 5mm Double Bit Lock for Electrical Enclosures — IP Enclosures
IP-L026 - image 2
Stainless Steel Quarter Turn 5mm Double Bit Lock for Electrical Enclosures — IP Enclosures
IP-L026 - image 2

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

IP Enclosures

Stainless Steel Quarter Turn 5mm Double Bit Lock for Electrical Enclosures

SKU
In stock
Stock on hand
NSW WarehouseAuburn, NSW 2144
6 in stock
QLD WarehouseBells Creek, QLD 4551
69 in stock
VIC WarehouseEpping, VIC 3076
43 in stock
Updated 3 minutes ago
Shipping & pickup →
$46.43 ex. GST $51.07 inc. GST
Free Shipping

Ask an expert!

Chat Email 1300876722
  • Material Stainless Steel 316
  • IP Rating IP66

Stainless Steel Quarter Turn 5mm Double Bit Lock for Electrical Enclosures

FEATURES

– Specially designed internal spring provides 1.5 mm of compression.

MATERIAL

HOUSING: Stainless Steel
DRIVER: Stainless Steel
GASKET: Rubber
IP RATING: IP66

DRIVERS

IP-L026: 5mm Square

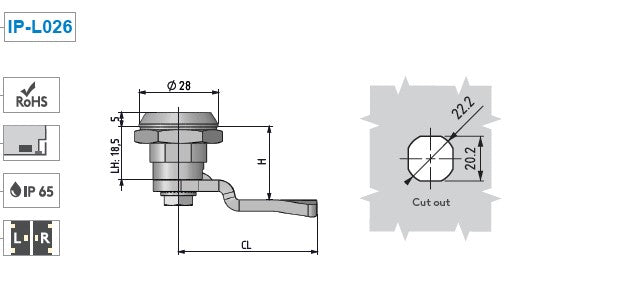

DIMENSIONS

H=25.5mm

CL=49mm
