Home » Enclosures» Stainless Steel Padlockable Wing Knob for Electrical Enclosures

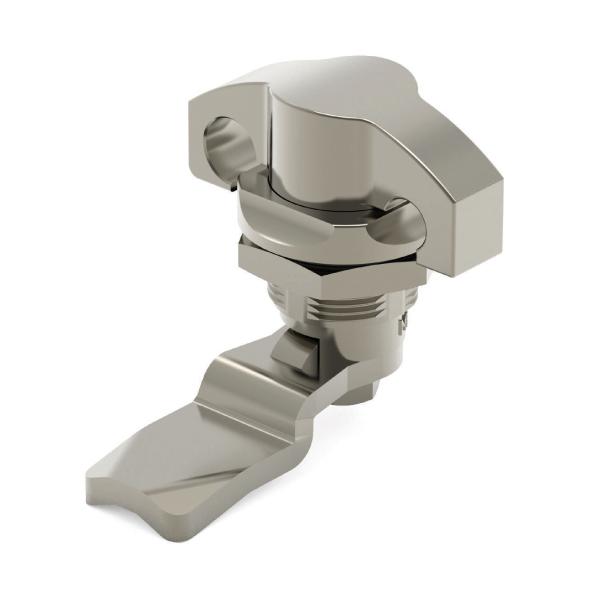

Stainless Steel Padlockable Wing Knob for Electrical Enclosures — IP Enclosures

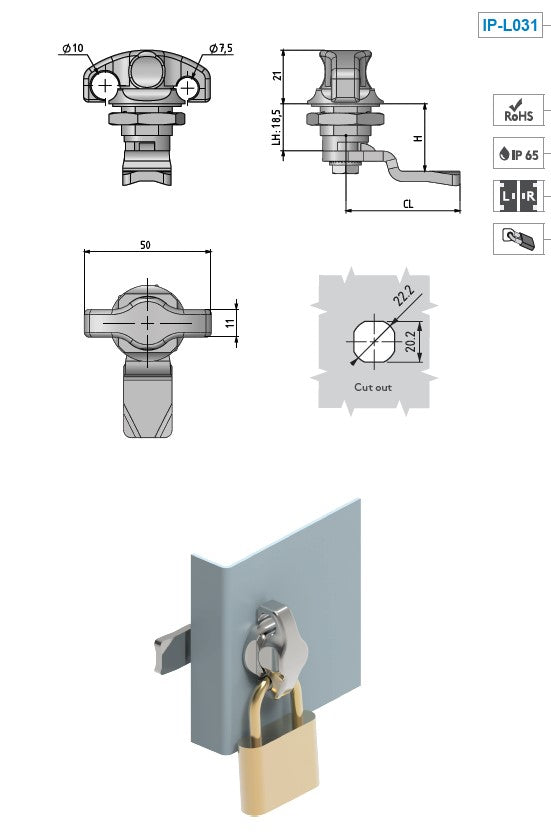

IP-L031 - image 2
Stainless Steel Padlockable Wing Knob for Electrical Enclosures — IP Enclosures
IP-L031 - image 2

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

IP Enclosures

Stainless Steel Padlockable Wing Knob for Electrical Enclosures

SKU
$106.04 ex. GST $116.64 inc. GST
In stock
183 in stock across 3 warehouses
Free Shipping

Ask an expert!

Chat Email 1300876722
  • Material Stainless Steel 316
  • IP Rating IP65

Standards & certifications

IP65Dust-tight · water jets

Stainless Steel Padlockable Wing Knob for Electrical Enclosures

FEATURES

– Quarter turn operation
– Grade 316 Stainless Steel

MATERIAL

HOUSING: 316 Stainless Steel
KNOB: 316 Stainless Steel
CAM: 304 Stainless Steel
NUT: 304 Stainless Steel

DIMENSIONS

H=25.5mm

CL=49mm

Suits a 5-9mm Diameter Padlock Shaft
