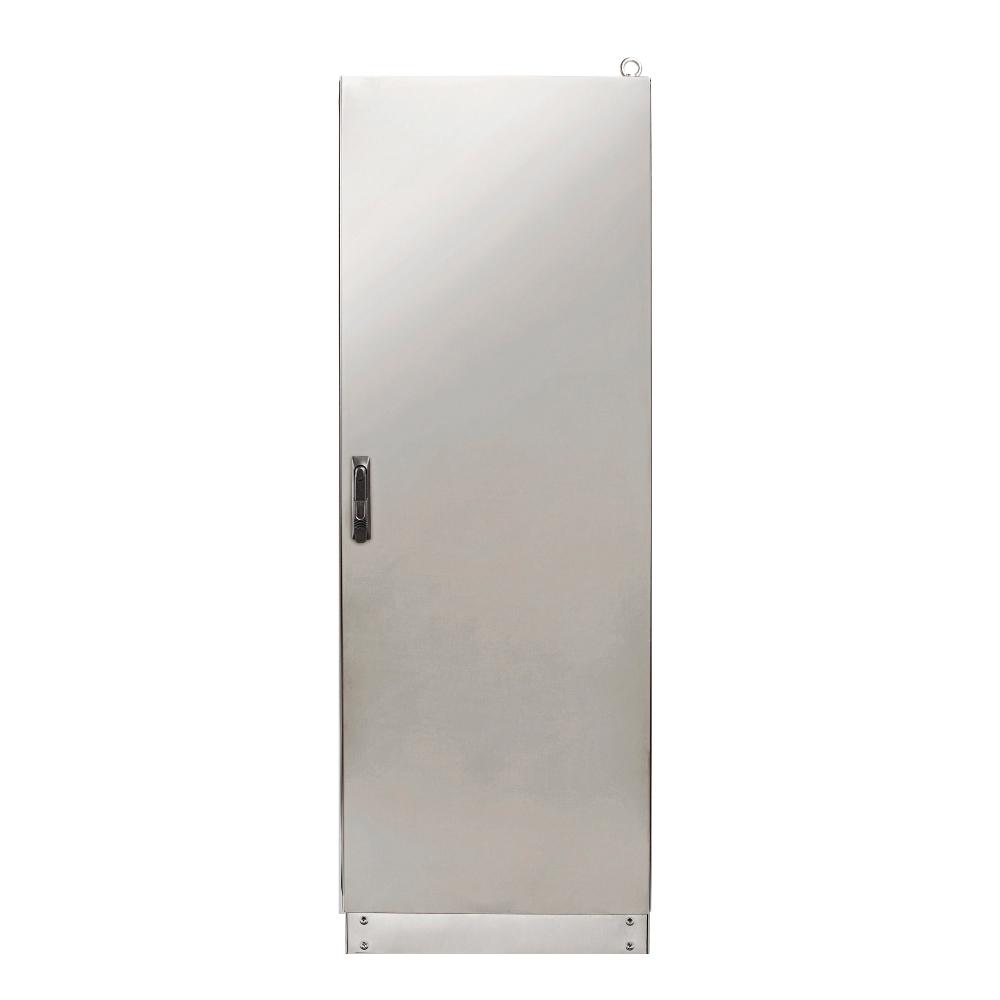

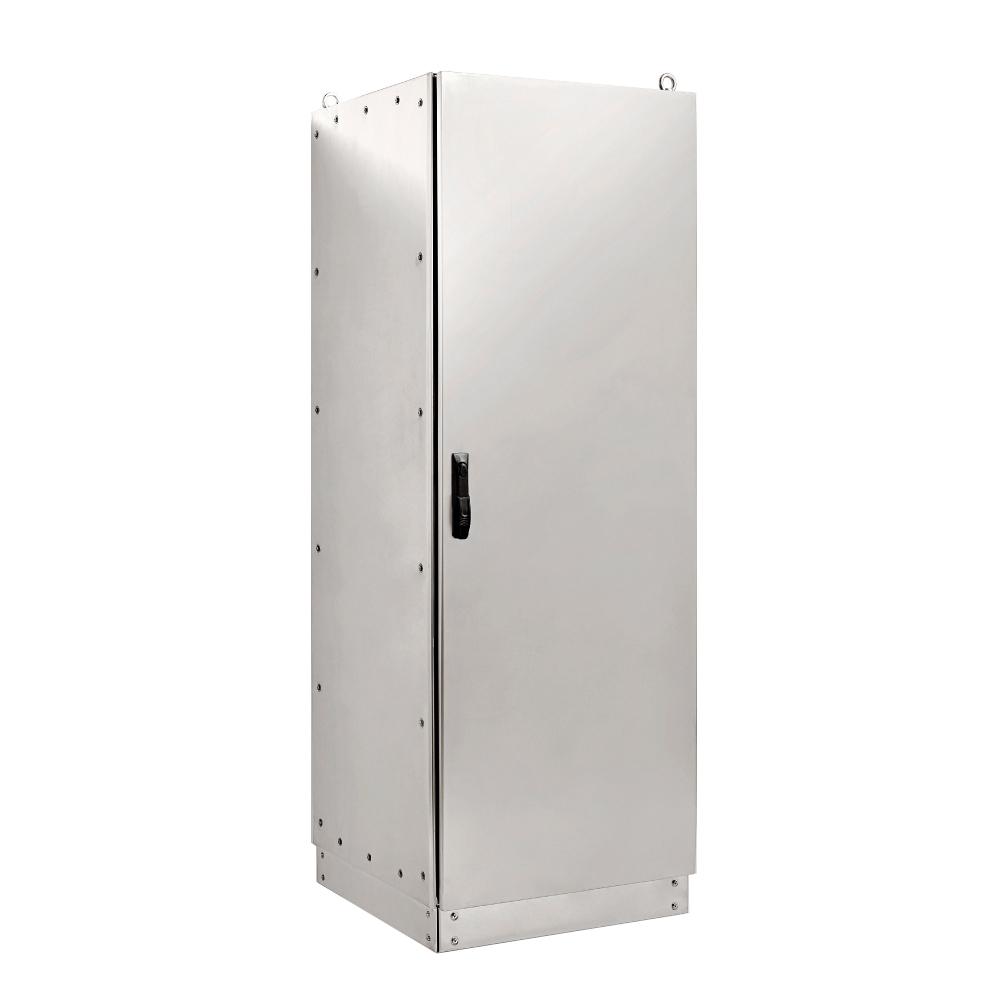

316 Stainless Steel Electrical Cabinet 1860H x 800W x 400D IP55

316 Stainless Steel Electrical Cabinet 1860H x 800W x 400D IP55

IP Enclosures stainless steel floor standing electrical cabinets are suitable for general industrial applications.

Features and Specifications

Protection: IP55 IK10. (Independent accredited test laboratory)

Standard: IEC 62208, IEC/EN/AS60529, RoHS

Conforming and certified to IEC 62208 – ‘Empty enclosures for low voltage switchgear and controlgear assemblies’.

Material:

– Main Frame: 2.0mm Grade 316 Stainless Steel W Profile System
– Side, Rear & Roof Panels: 1.2mm Grade 316 Stainless Steel
– Front Door: 2.0mm Grade 316 Stainless Steel
– Mounting Plates: 2.0mm Galvanised Steel Sheet
– Seal: EPDM

Enclosure Main Frame:

The robust modular main structure is fabricated using 2.0mm Grade 316 Stainless Steel W Profile system with 20mm hole pattern according to DIN43660.

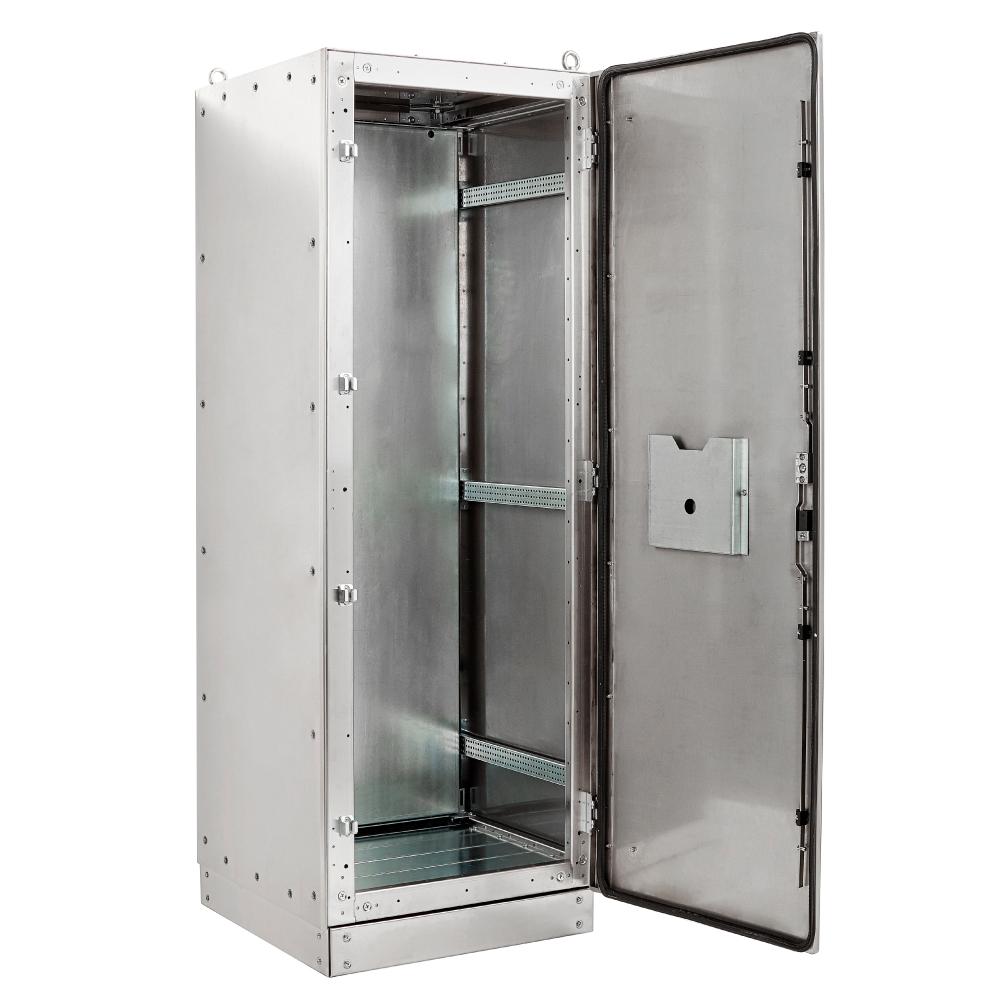

Enclosure Door:

The robust door is fabricated using 2.0mm Grade 316 Stainless Steel and incorporates four concealed reversible hinges allowing left or right hand opening. The door is designed for a 135° opening. Each door contains integral cable management rails with 20mm hole pattern, M6 earth stud and provision for a document pocket.

Enclosure Side, Rear and Roof Panels:

Removable panels are fabricated using 1.2mm Grade 316 Stainless Steel.

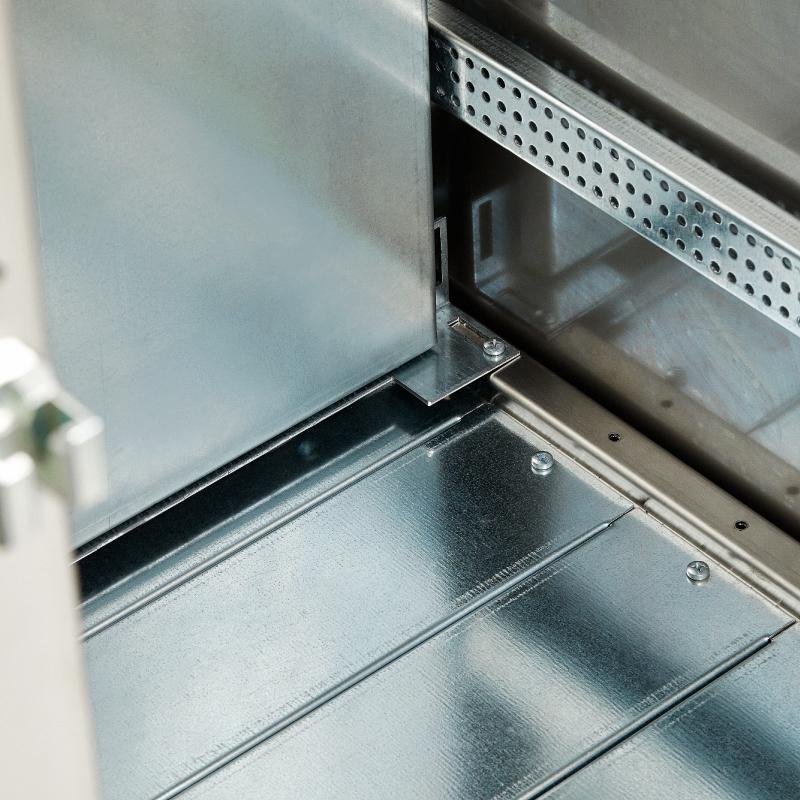

Enclosure Base:

Base is 100mm

Enclosure Door Seal:

High quality EPDM replaceable door seal.

Enclosure Lock:

4 point locking system with key-lock swing handle.

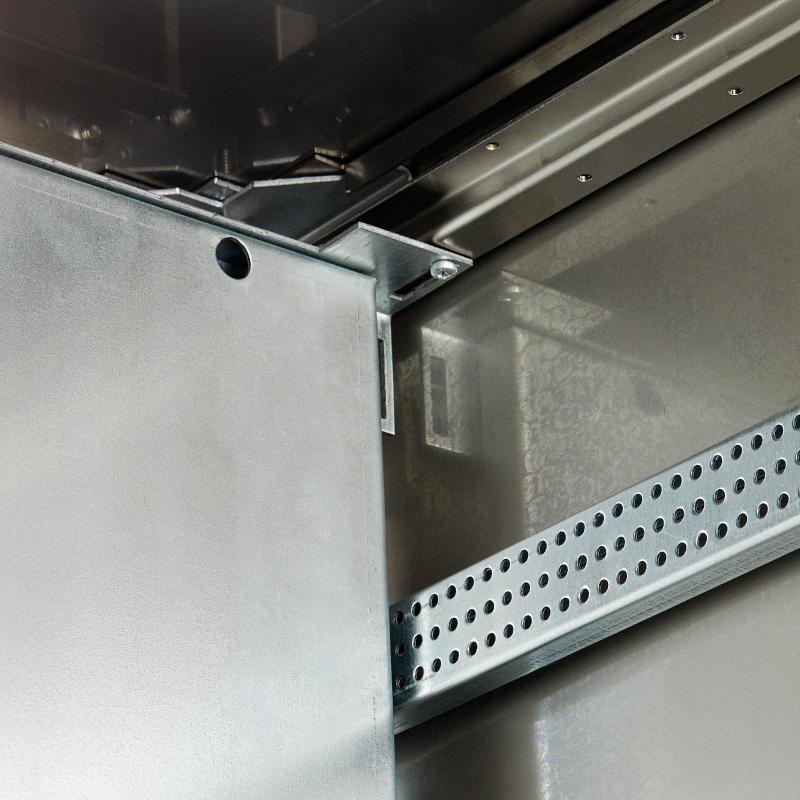

Enclosure Device Mounting Plate:

The device mounting plate is fabricated using 2.0mm mm galvanised steel sheet, pressed to provide additional strength.

Earthing:

All panels are earthed to provide earthing continuity.

Surface Finish:

0.4 micron Ra surface brushed finish
