Split Cable Entry Frame IP54 with SS Screws - KEL-U 24|10 V2A
Regular price
$62.93
ex. GST
$69.22
inc. GST
Restocking
Stock on hand
NSW WarehouseAuburn, NSW 2144
0 in stock
QLD WarehouseBells Creek, QLD 4551
0 in stock
VIC WarehouseEpping, VIC 3076
0 in stock
Updated
4 minutes ago
Shipping & pickup →
Free Shipping
Ask an expert!
- Colour
- IP Rating
Standards & certifications
IP54Dust-protected · splashing

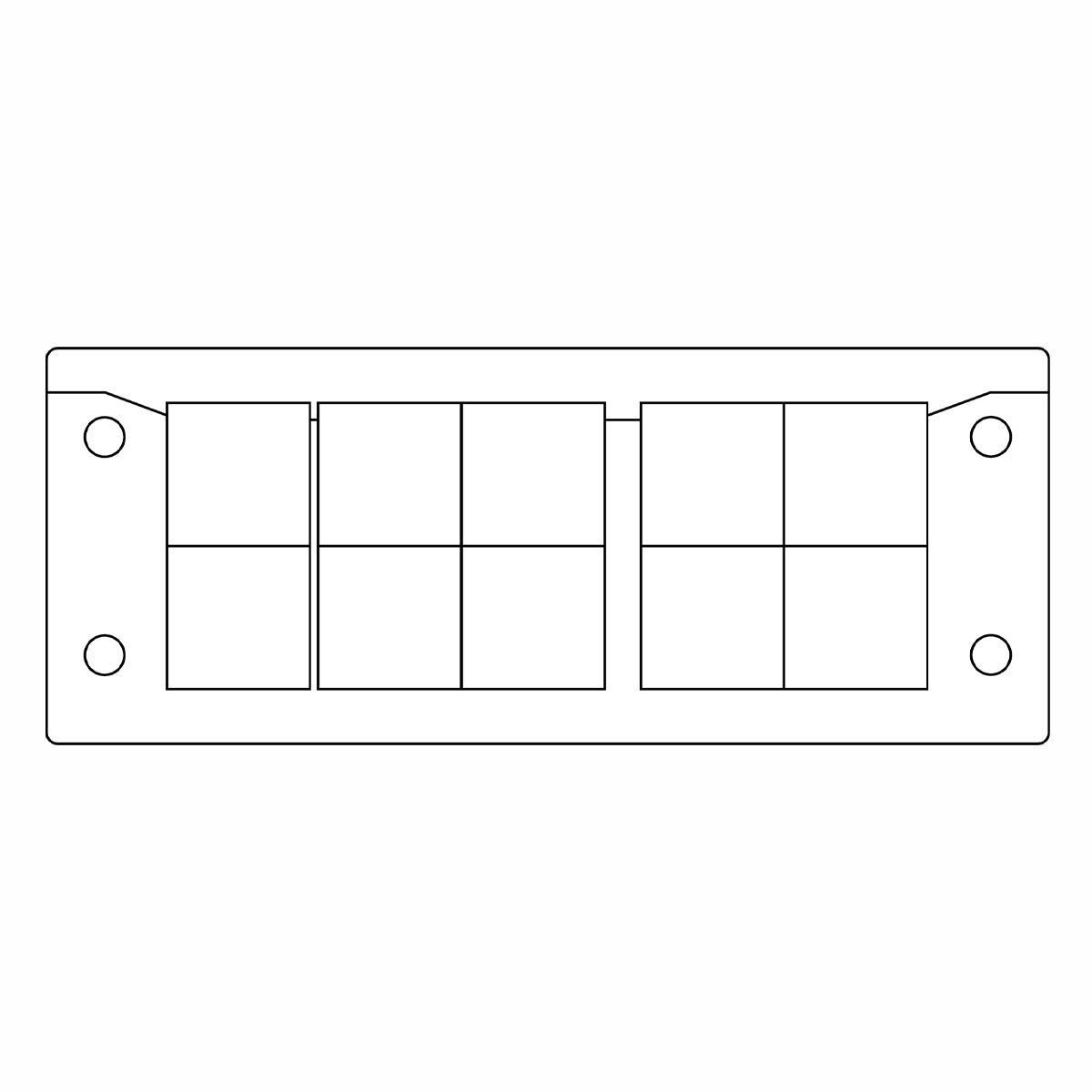

The icotek KEL-U 24|10 is a split cable entry frame for routing, sealing and providing strain relief to pre-terminated cables with connectors. Rated IP54 / UL Type 12, it accepts 10 x KT small cable grommets and matches the cut-out for a standard 24-pin industrial connector. This V2A variant is fitted with corrosion-resistant stainless steel screws, suiting washdown or corrosive-environment applications.
| Series | KEL-U 24|10 |
|---|---|
| Protection Rating | IP54 / UL Type 12 (NEMA 12) |
| Frame Material | Polyamide |
| Screw Material | Stainless steel (V2A) |
| Colour | Black |
| Dimensions (L x W x H) | 147 x 58 x 17 mm |
| Cut-Out (L x W) | 112 x 36 mm |
| Mounting | Screw mounting, 4 screw holes; compatible with KEL-SNAP frame for tool-free mounting |
| Suitable Grommets | 10 x KT Small cable grommets |
| Includes | Flat rubber gasket |
| Standards | cURus Listed, EN 45545-2, ECOLAB Certified, RoHS Compliant |
| Manufacturer P/N | 54241.2 (V2A) |
- Tool-free assembly option via the KEL-SNAP mounting frame
- Grommets clamp securely into the frame for a reliable IP54 seal around pre-terminated cables
- Warranty on pre-terminated cables remains intact — no need to remove connectors for installation
- V2A stainless steel screws add corrosion resistance over standard zinc-plated steel
- Includes flat rubber gasket for enclosure mounting
Available from TROPAC — contact our team for pricing and availability.
TROAPC's standard warranty covers all products. A 5-year warranty applies to applicable IP Enclosures products. Refer to Refunds & Returns for more information.
