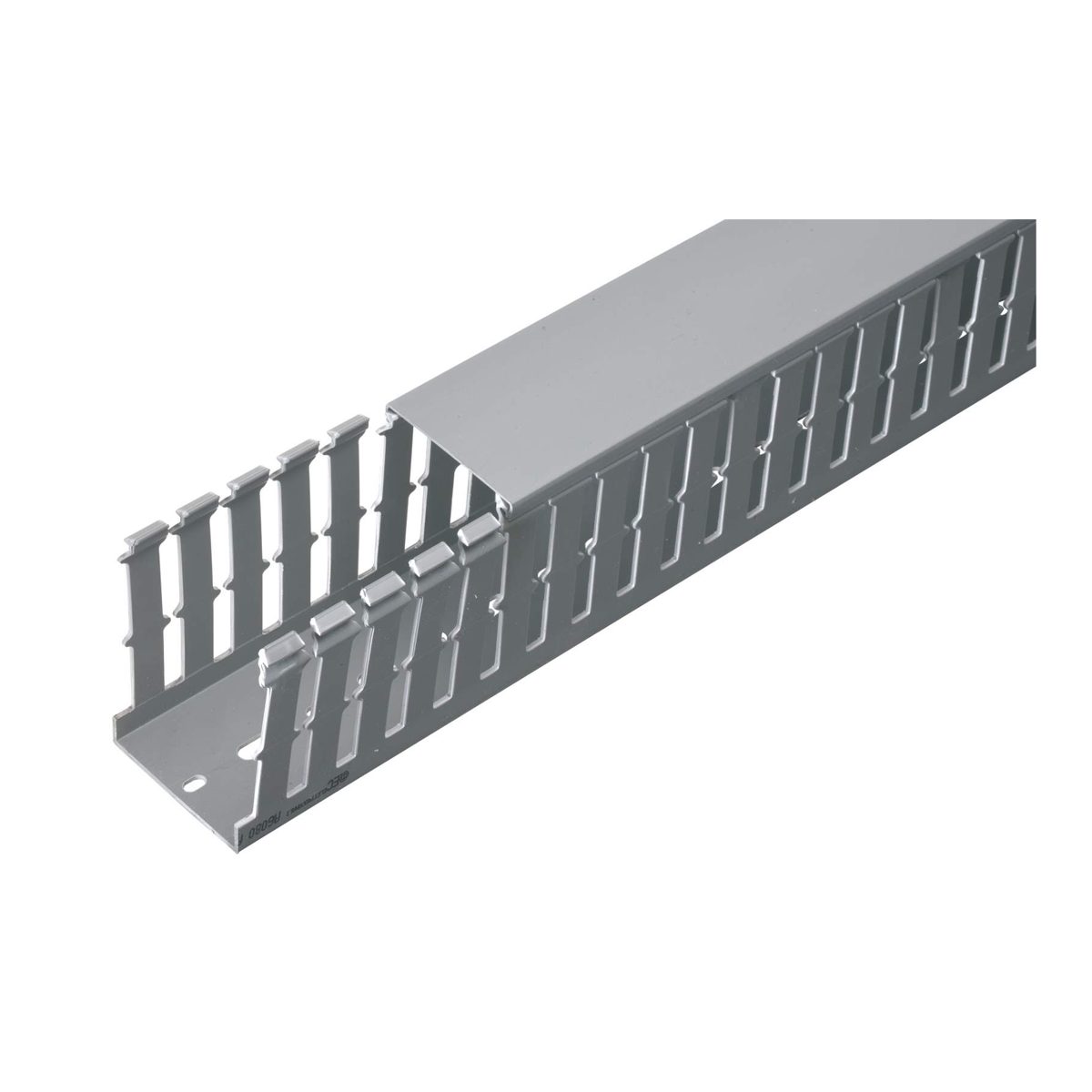

Slotted Duct 25x60mm Grey with Cover | 2M Lengths, Carton of 18

Slotted Duct 25Wx60H mm Grey with Cover | 2M Lengths, Carton of 18

Specifications

• Material: Technopolymer on rigid PVC base, self-extinguishing V0 (UL94) and high resistance to UV rays.

• Colour: Grey RAL7030

• Length: 2 meters

• Resistance to mechanical shocks IK 07 (shocks up to 2 J)

• Resistance to heat in continuous use: up to 70°C

• Resistance to abnormal heat: up to 650°C (Glow Wire Test, Reference Standard IEC60695-2-11)

• Installation temperature range: -5°C + 60°C

• Insulation resistance > 100MΩ

• Dielectric voltage: > 3.0V

• Perforated bottom according to Standard DIN 43659

• Made in Italy

Features

• Double break line to remove only one slot or the whole trunking wall fast and easily

• High resistant to UV rays

• Rounded slot profile increases safety for operator and cables

• Supplied with lids

Standards and Compliance

• Reference Standards: EN 50085-1:2005 + A1:2013, EN 50085-2-3:2010, UL 1565 ED.4.

• Products meeting the safety objectives of Low Voltage Directive 2014/35/EU (Annex I)

• Compliant with RoHS II – 2011/65/EU directive + 2015/863/EU.

Disclaimer:
Elettrocanali Slotted Ducts cannot be transferred between warehouses. Orders ship only from the listed warehouse. For urgent needs or alternatives, contact the TROPAC Sales Team.

TROAPC's standard warranty covers all products. A 5-year warranty applies to applicable IP Enclosures products. Refer to Refunds & Returns for more information.
