Roof Fan for Electrical Cabinet 1000m3/h 400 x 350 x 102
Regular price
$656.06
ex. GST
$721.67
inc. GST
In stock
15 in stock
across 2
warehouses
Stock on hand
NSW WarehouseAuburn, NSW 2144
5 in stock
QLD WarehouseBells Creek, QLD 4551
10 in stock
Updated
1 minute ago
Shipping & pickup →- Type
- Height (mm)
- Width (mm)
- Material
- IP Rating
- Size
Standards & certifications
IP44Ingress protection

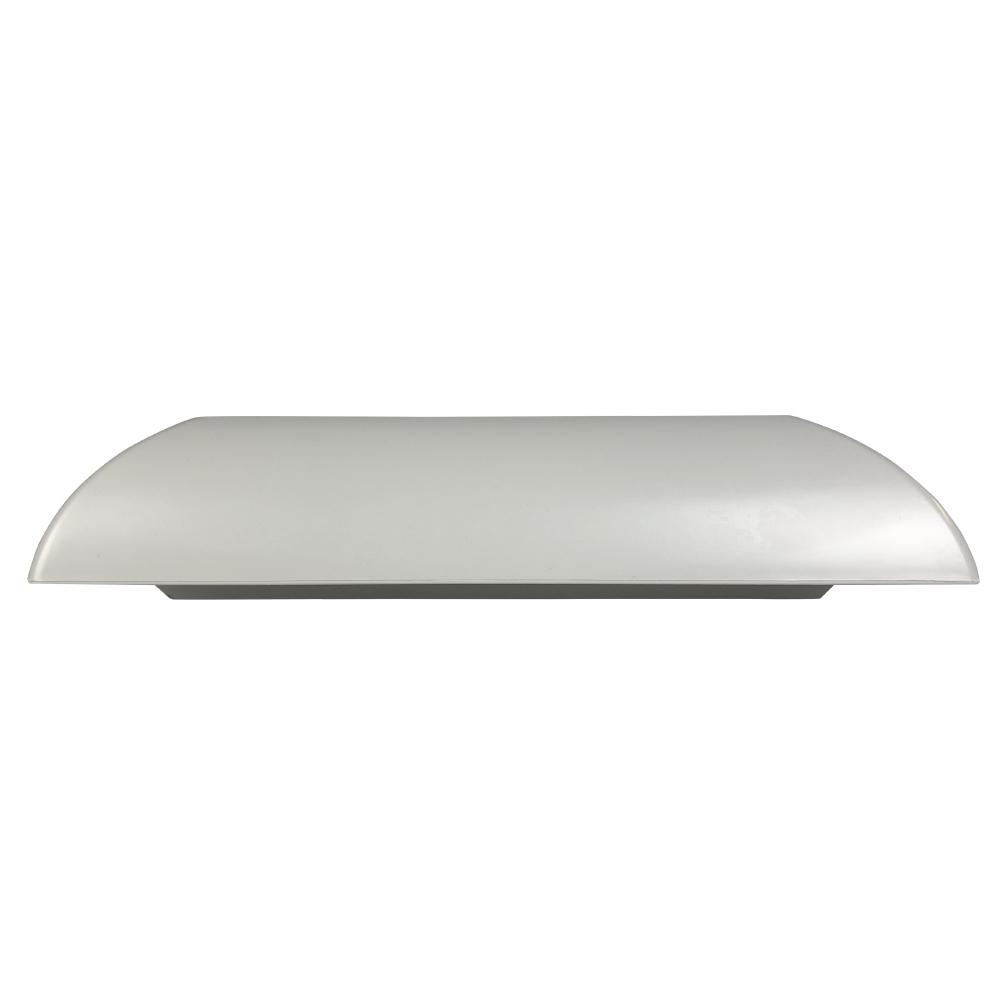

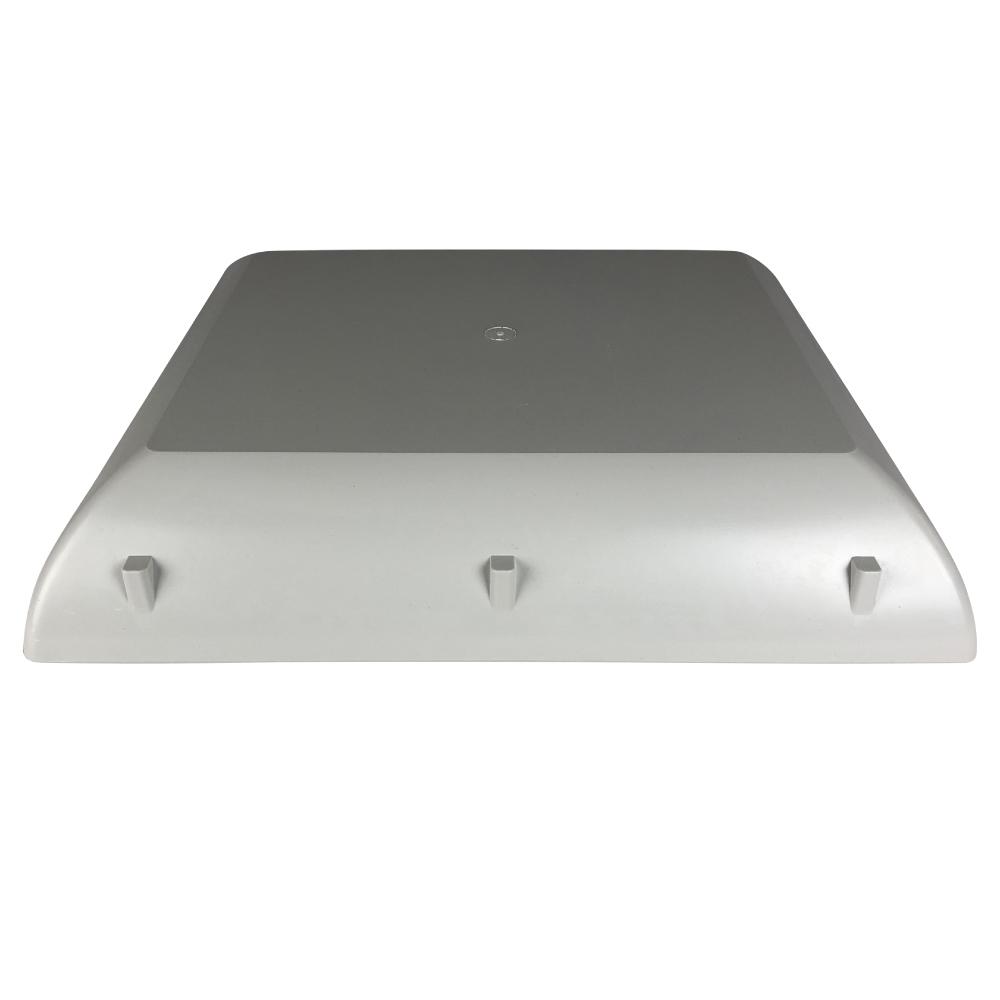

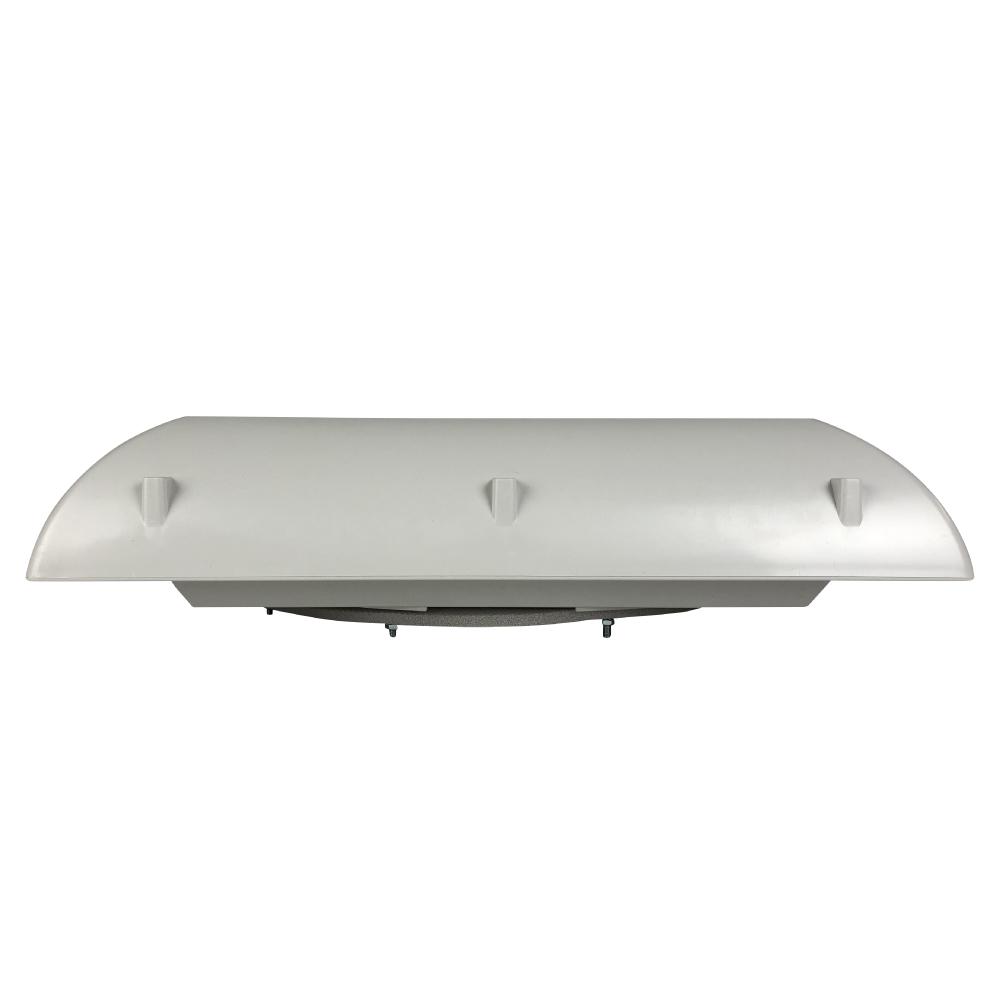

Roof Fan for Electrical Cabinet 1000m3/h 400 x 350 x 102
Roof Fan for Electrical Cabinets 1000m3/h 400 x 350 x 102, 230V-50/60Hz
High quality Italian roof fan and vent unit for electrical enclosures.
| Features | Unit | IP-RFV3 |
|---|---|---|
| Air flow rate (free blow) | m³/h | 1000(1050) |
| Flow rate with exit filter | m³/h | 700(720) |
| Power supply | V/Hz | 230/50-60 |
| Dimensions HxLxP | mm | 400x350x102 |
| Power consumption | W | 120(170) |
| Current consumption | A | 0.50(0.75) |
| Overcurrent protection | – | thermal |
| Electric connection | – | 4-pole terminal 2.5 mm² |
| Duty cycle | – | 100% |
| Operating temperature | °C | -10/+70 |
| Protection degree enclosure side | – | IP44 |
| Protection class | – | Class I |
| Noise level | dB(A) | 72(73) |
| Flow direction | – | inside-out |
| Bearing | – | ball |
| Service life (at 40°C) | hr | 50.000 |
| Material | – | ABS UL94V-0 Color RAL7035 |
| Gasket | – | polythene |
| Weight (with packaging) | kg | 4.75(4.95) |
| Package dimensions | mm | 410x360x130 |
| Mounting | – | screws |
| conformity/Approvals | – | CE |
TROPAC's standard warranty covers all products. A 5-year warranty applies to eligible IP Enclosures products. Refer to Refunds & Returns for more information.
