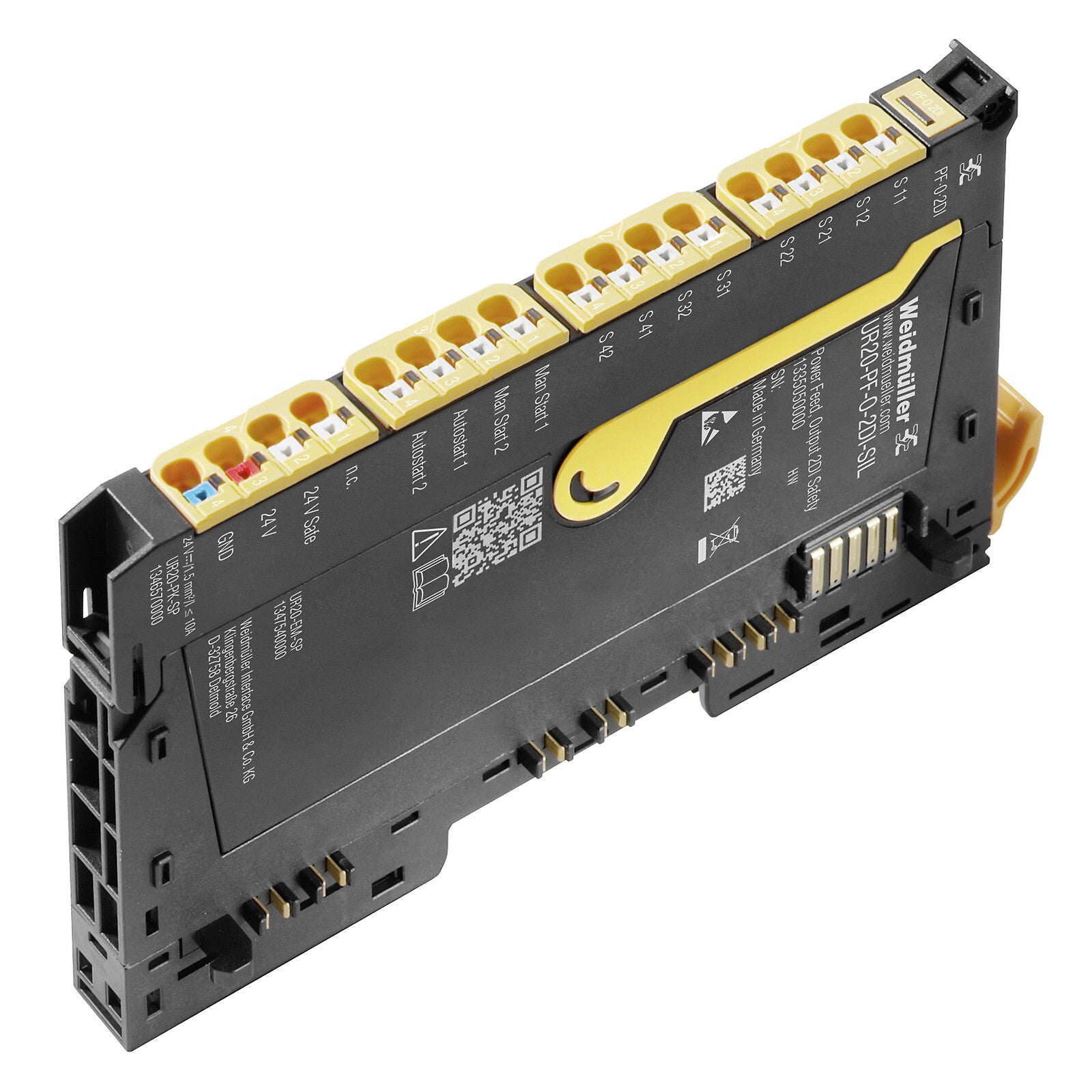

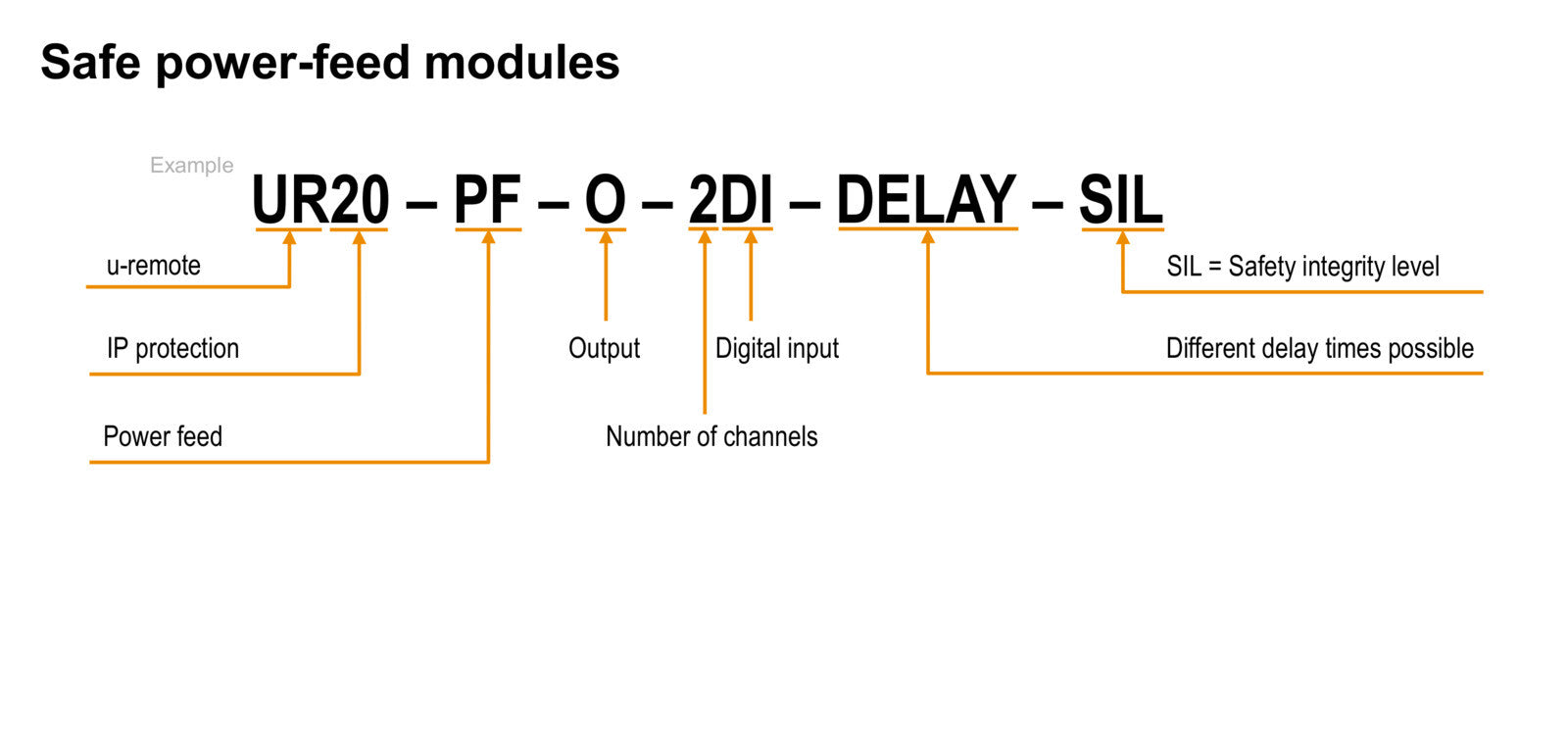

Remote I/O module, IP20, Safety, SIL power supply - UR20-PF-O-2DI-SIL

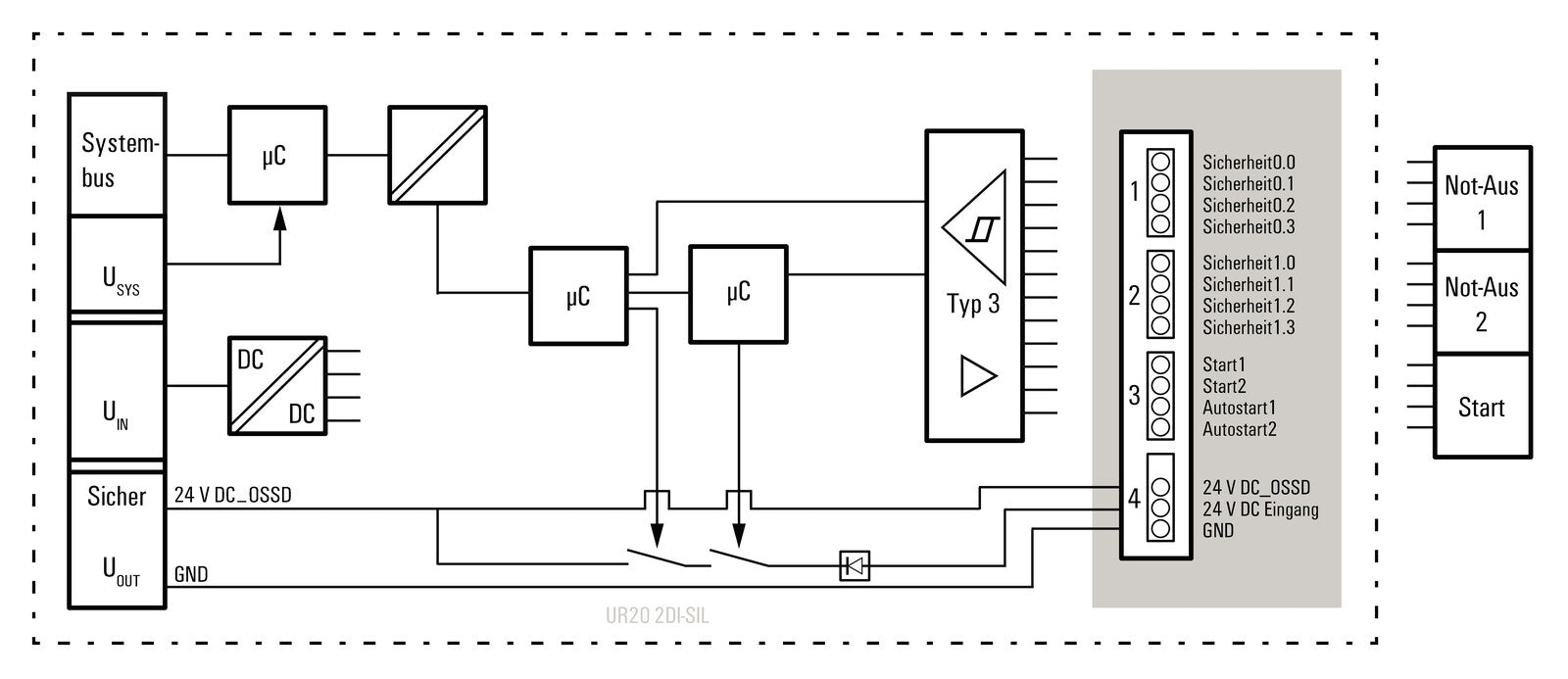

Weidmüller UR20-PF-O-2DI-SIL is a safety power feed module for the u-remote system: it opens a new output current path (I_OUT) segment and allows that segment to be switched off in a safety-related manner, feeding up to 8,050 mA. Unlike the plain UR20-PF-O, it carries two digital inputs for the safety switching signals and is qualified for functional safety use with a hardware fault tolerance of 1 and a safe failure fraction of 98 %. Use it where a group of output modules must be de-energised as part of a safe shutdown while the rest of the station keeps running.

• Function: Safety power feed — starts a new output current path (I_OUT) segment with safety-related shutdown
• Channels: 2 digital inputs for the safety switching signals
• Segment feed current: max. 8,050 mA for I_OUT
• Functional safety: Hardware fault tolerance (inputs) 1; safe failure fraction (SFF) 98 %; MTTF 100 a
• Supply voltage: 24 V DC +20 % / −15 % via the system bus
• Current consumption: 8 mA typ. from I_sys
• Isolation: 500 V DC between the current paths; test voltage 500 V

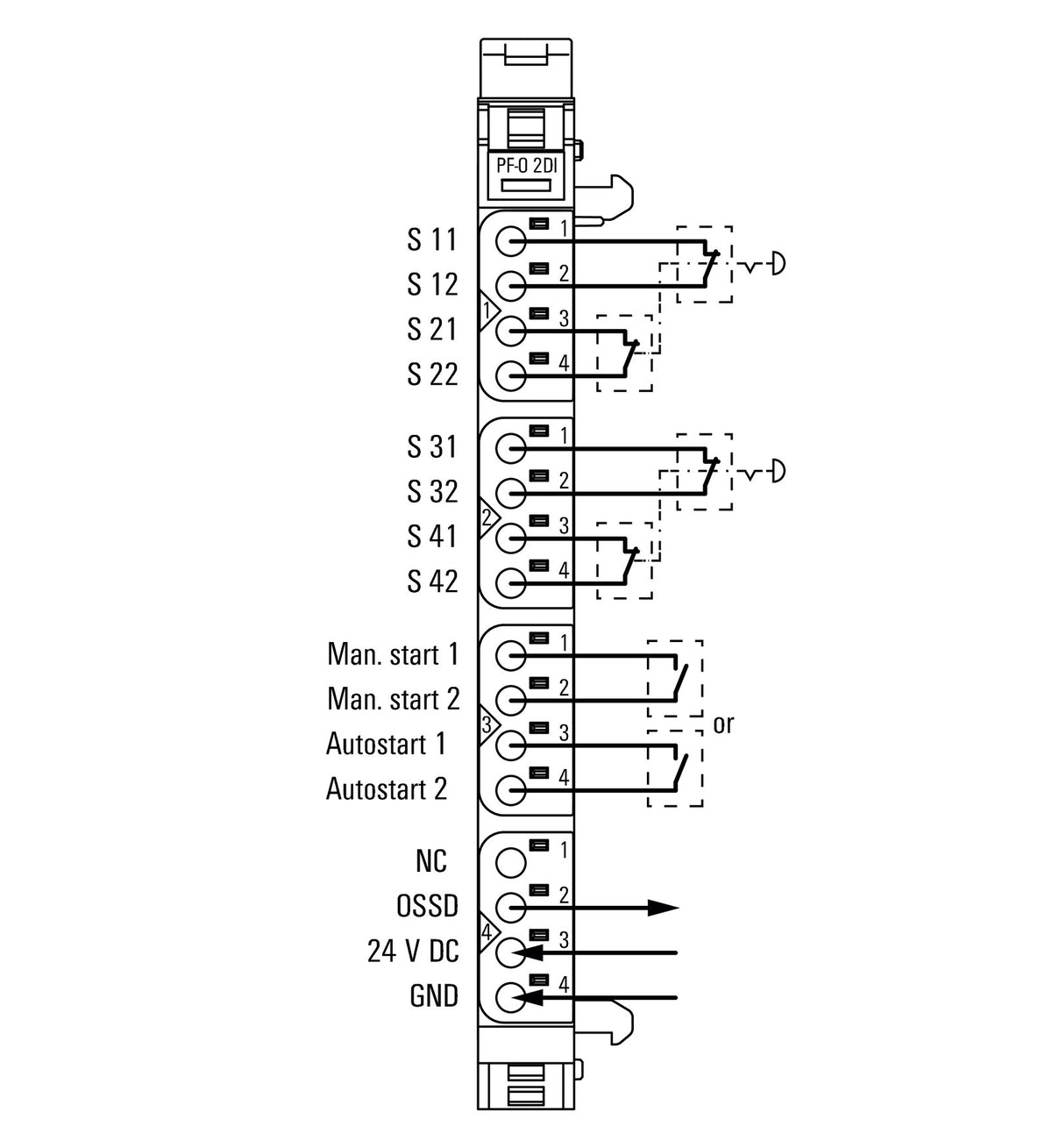

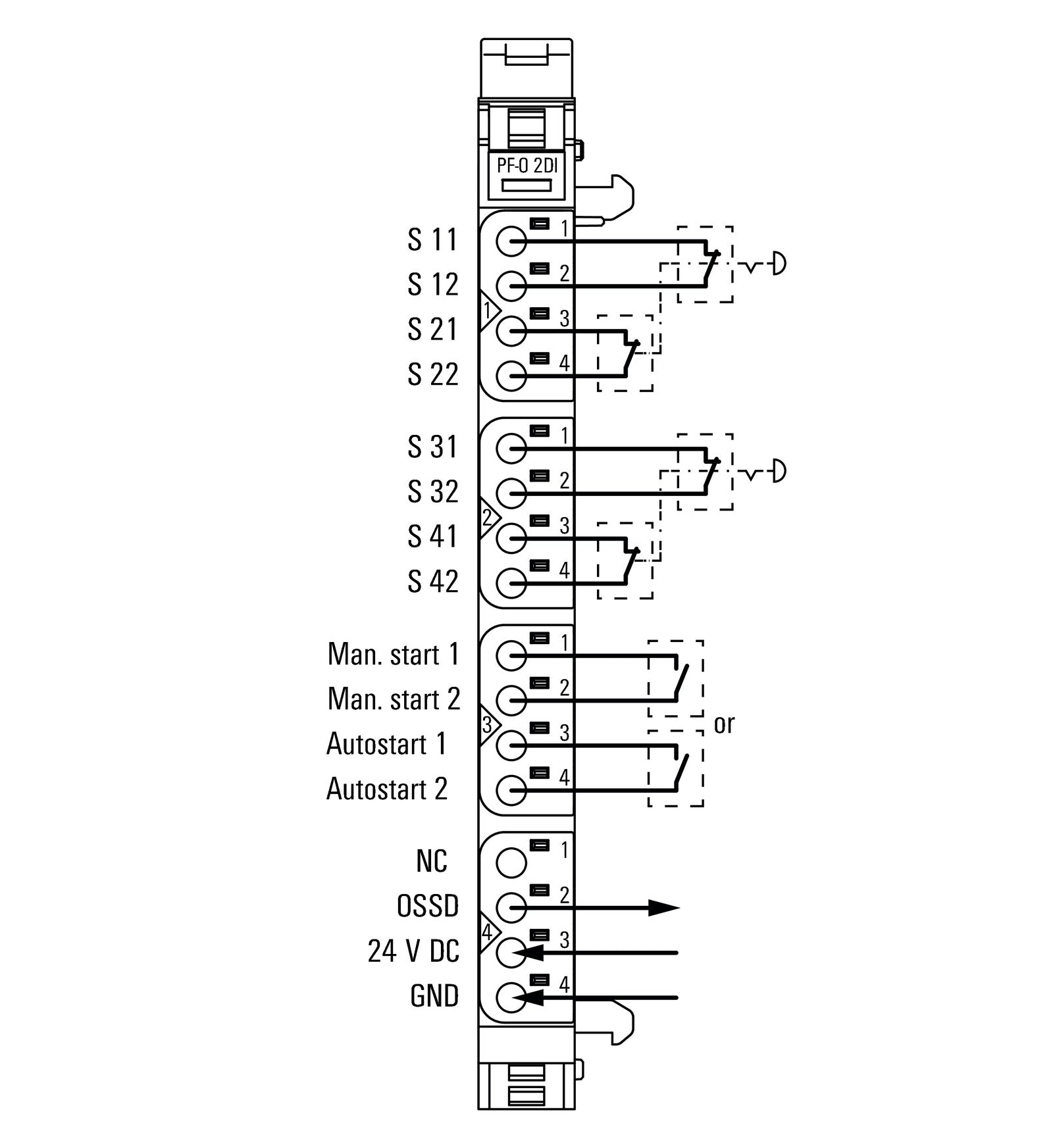

• Connection: PUSH IN, 0.14 mm² to 1.5 mm²; TS 35 mounting rail
• Diagnostics: Individual channel diagnosis; wire break and short-circuit detection
• Operating temperature: −20 °C to +60 °C (storage −40 °C to +85 °C)
• Dimensions (W x H x D): 11.5 x 120 x 76 mm
• Weight: 82 g
• Protection degree: IP20
• Approvals: RoHS (exemptions 7a, 7cI), UL E141197 (cULus), E223527 (cULusEX)
