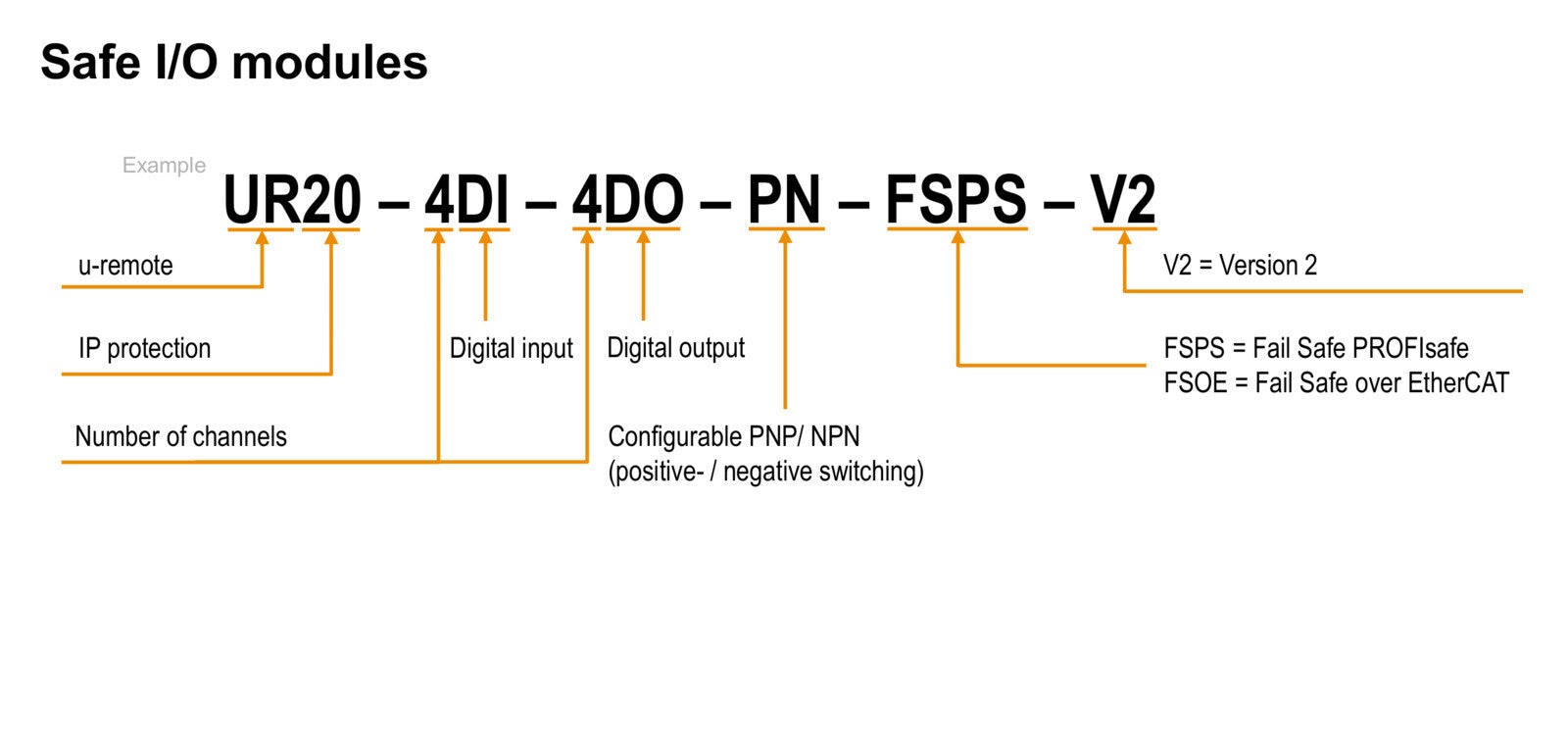

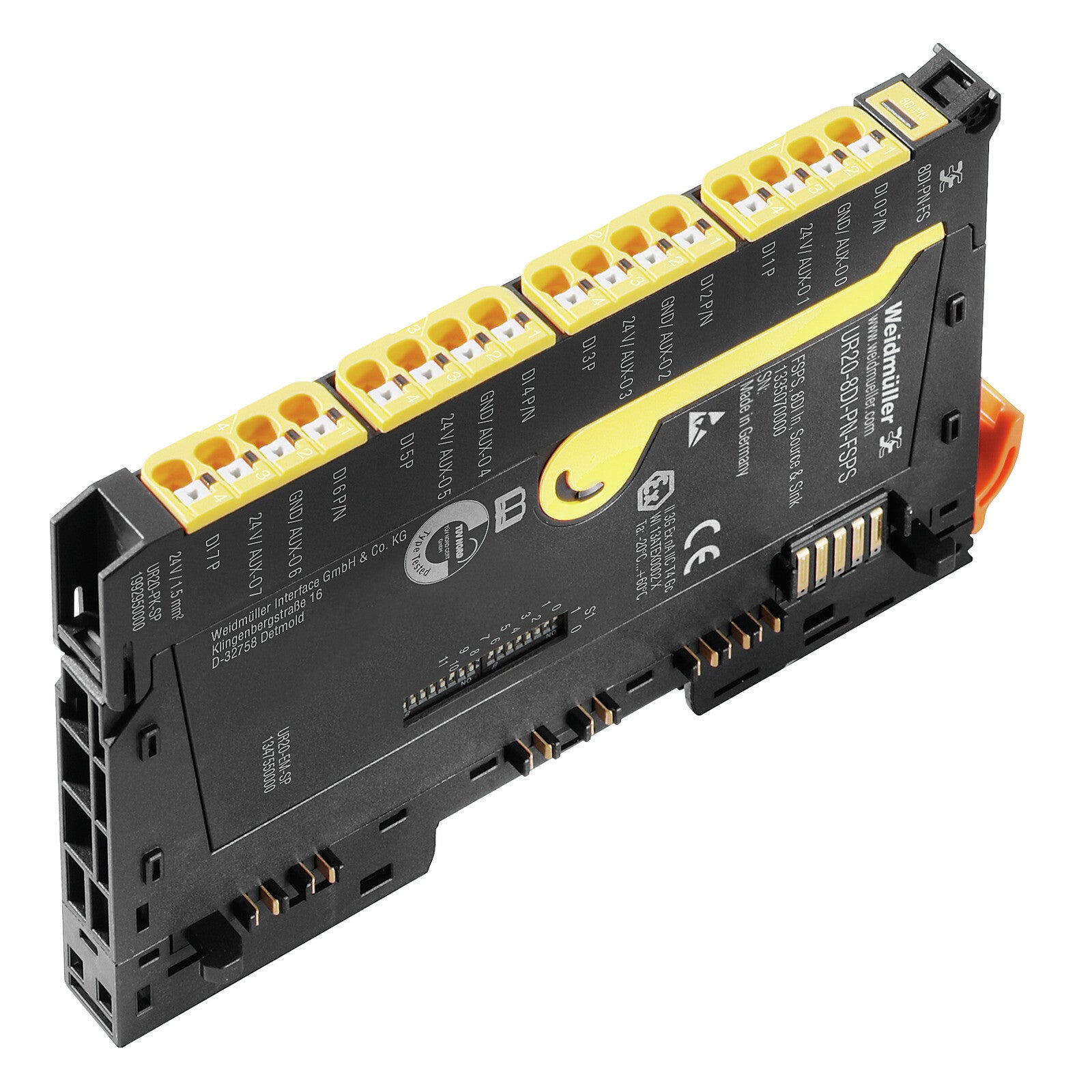

REMOTE I/O MODULE, IP20, SAFETY, DIGITAL SIGNALS, 8-CHANNEL - UR20-8DI-PN-FSPS-V2

Weidmüller UR20-8DI-PN-FSPS-V2 is an eight-channel safe digital input module for the u-remote system, communicating over PROFIsafe on PROFINET IRT or PROFIBUS DP-V1. It reaches SIL 2 and PL d (category 2) wired single-channel 1oo1, or SIL 3 and PL e (category 4) when sensors are wired dual-channel 1oo2, so the achievable safety level is set by your field wiring rather than by the module alone. Inputs are IEC 61131-2 Type 1/Type 3 with a configurable input filter and per-channel diagnosis.

• Channels: 8 safe digital inputs
• Input type: Type 1 and Type 3 in accordance with IEC 61131-2; high >11 V, low <5 V
• Safety rating: EN 61508 SIL 2 (1oo1) / SIL 3 (1oo2); EN 62061 SILCL 2 / SILCL 3; EN ISO 13849-1 PL d category 2 (1oo1) / PL e category 4 (1oo2)
• Safety protocol: PROFIsafe over PROFINET IRT or PROFIBUS DP-V1
• Fault reaction time: 10 s, single-channel 1oo1 per EN 62061
• Supply voltage: 24 V DC +20 % / −15 % via the system bus
• Current consumption: 8 mA typ. from the system bus; 20 mA plus load from the input segment; 30 mA from the output segment
• Isolation: 500 V DC between the current paths

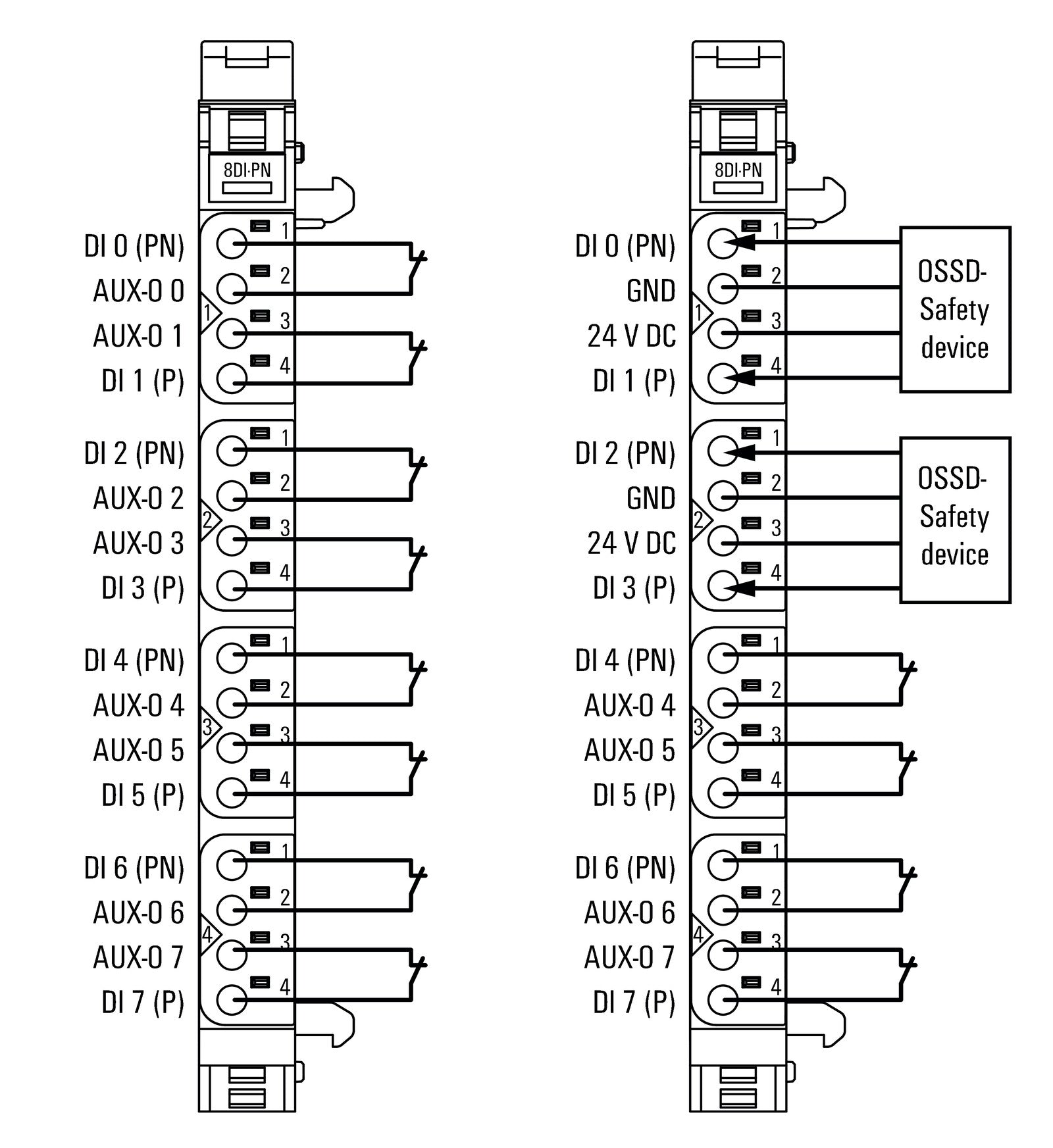

• Connection: PUSH IN, 0.14 mm² to 1.5 mm², 2-wire, 3-wire and 4-wire sensors
• Diagnostics: Individual channel diagnosis and module diagnosis; configurable input filter
• Operating temperature: −20 °C to +60 °C
• Dimensions (W x H x D): 11.5 x 120 x 76 mm
• Protection degree: IP20
• Approvals: CE, RoHS, UL E141197 (cULus), E223527 (cULusEX)
