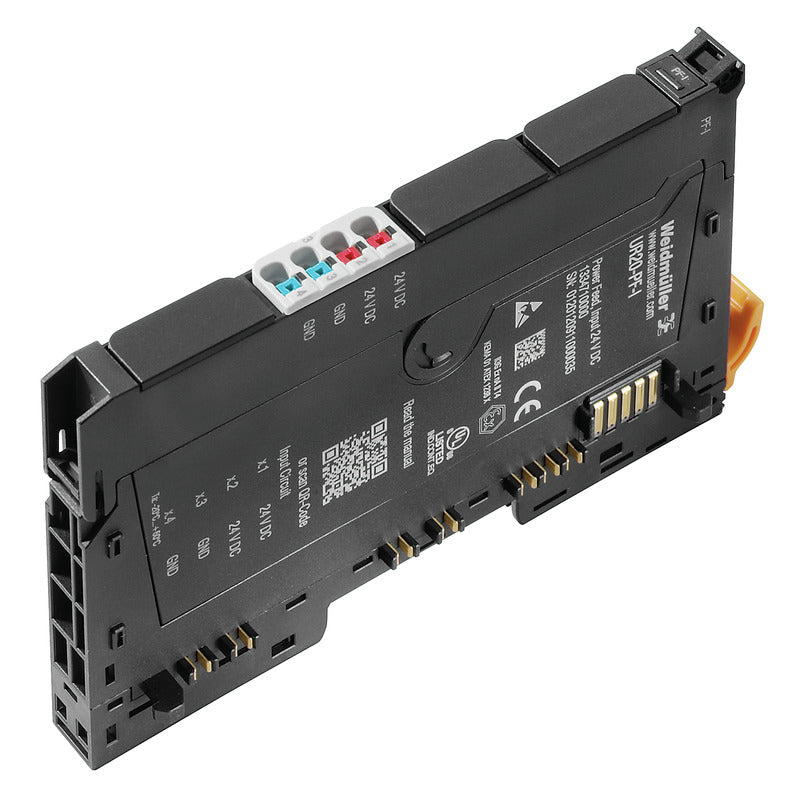

Remote I/O module, IP20, Power supply unit, 24 VDC-Input - UR20-PF-I
- IP Rating
Standards & certifications
IP20Ingress protection

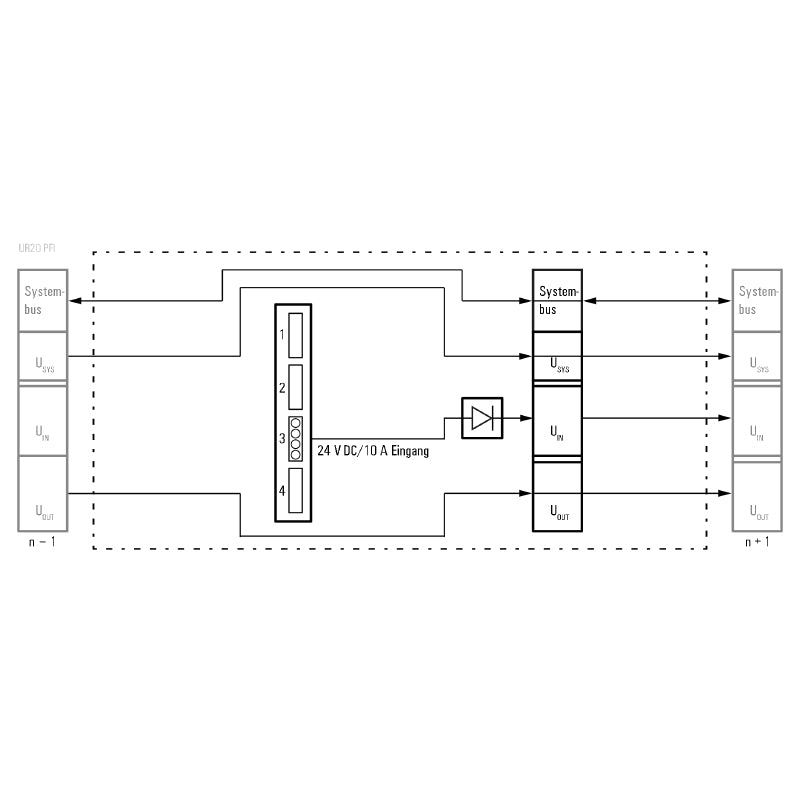

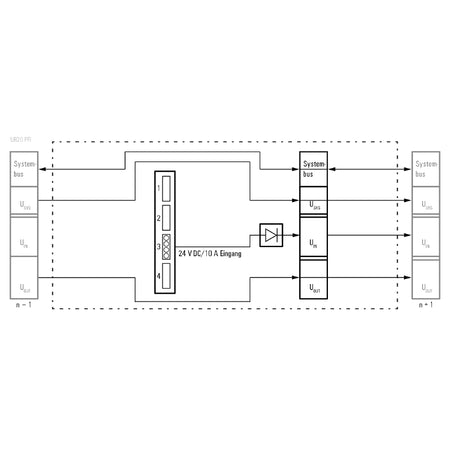

Weidmüller UR20-PF-I is the power feed module that starts a new input current path (IIN) segment in a u-remote station, refreshing the 24 V DC supply used by input modules and their connected sensors with up to 10,000 mA of feed current. Fit it when the sensor supply drawn by the input modules to its right would exceed what the existing input segment can carry, or when the sensor side needs its own switched or fused supply. Note the pairing: UR20-PF-I feeds IIN for input modules, while UR20-PF-O (order no. 1334740000) feeds IOUT for output modules and actuators — the two are not interchangeable.
- Function: Power feed — refreshes and starts a new input current path (IIN) segment
- Segment feed current: max. 10,000 mA for IIN
- Supply voltage: 24 V DC +20 % / −15 %
- Current consumption: <10 mA from IIN (the respective power segment)
- Isolation: Test voltage 500 V

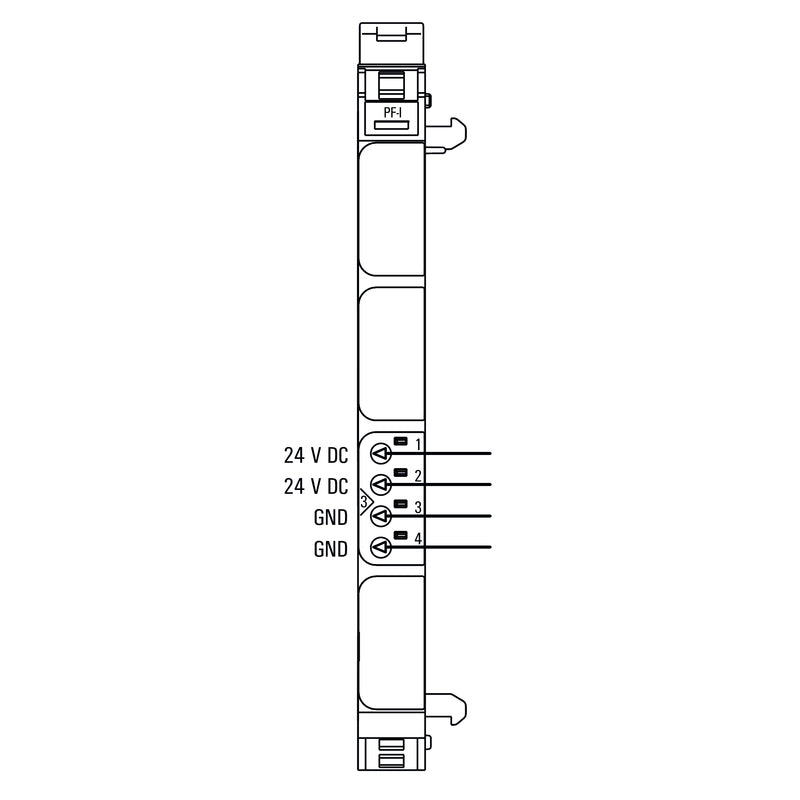

- Connection: PUSH IN, 0.14 mm² to 1.5 mm², solid or stranded; TS 35 mounting rail
- Operating temperature: −20 °C to +60 °C (storage −40 °C to +85 °C)
- Dimensions (W x H x D): 11.5 x 120 x 76 mm
- Protection degree: IP20
- Approvals: RoHS, UL E141197 (cULus), E223527 (cULusEX)
