Remote I/O module, Digital signals, Output, PLC - UR20 - 16DO-P-PLC-INT

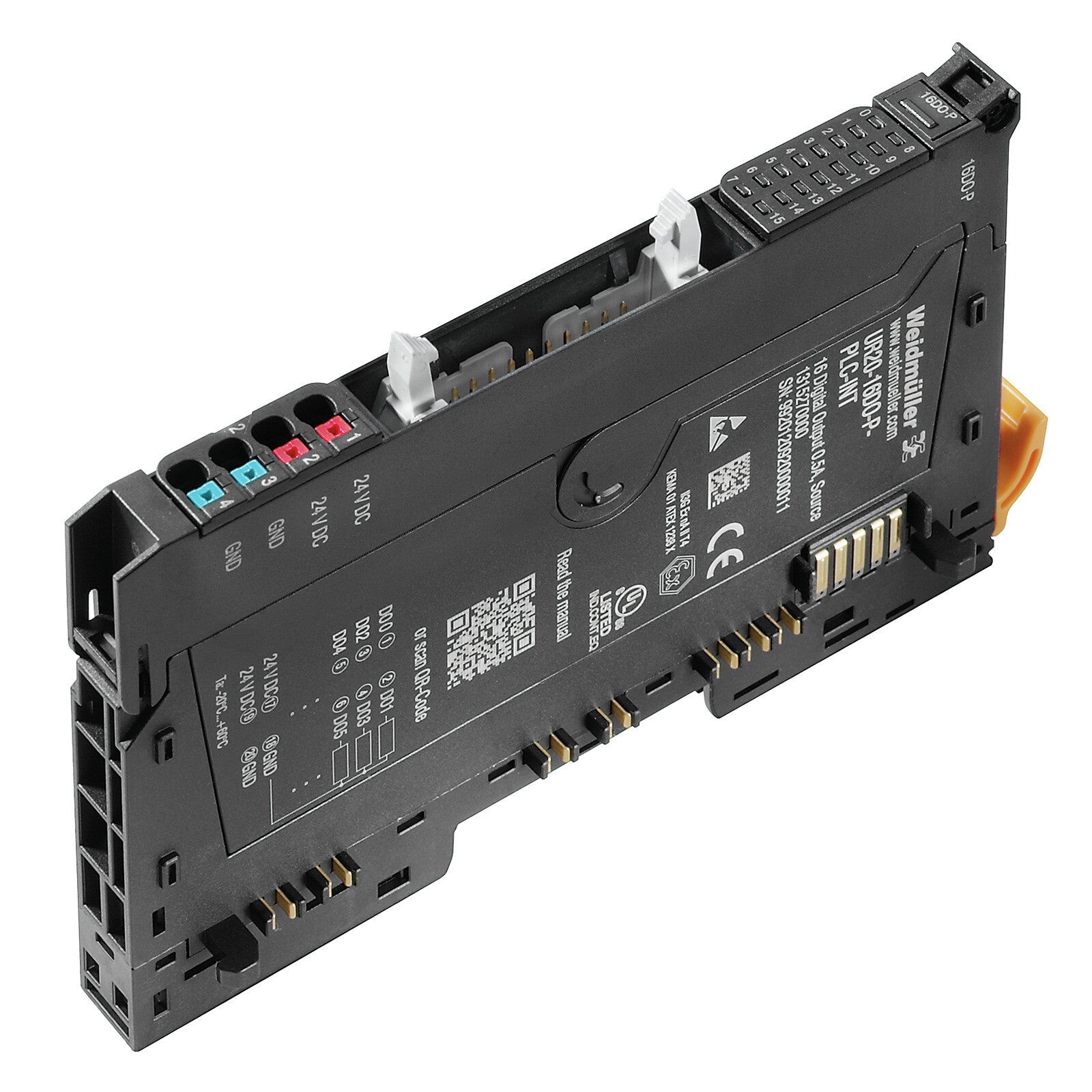

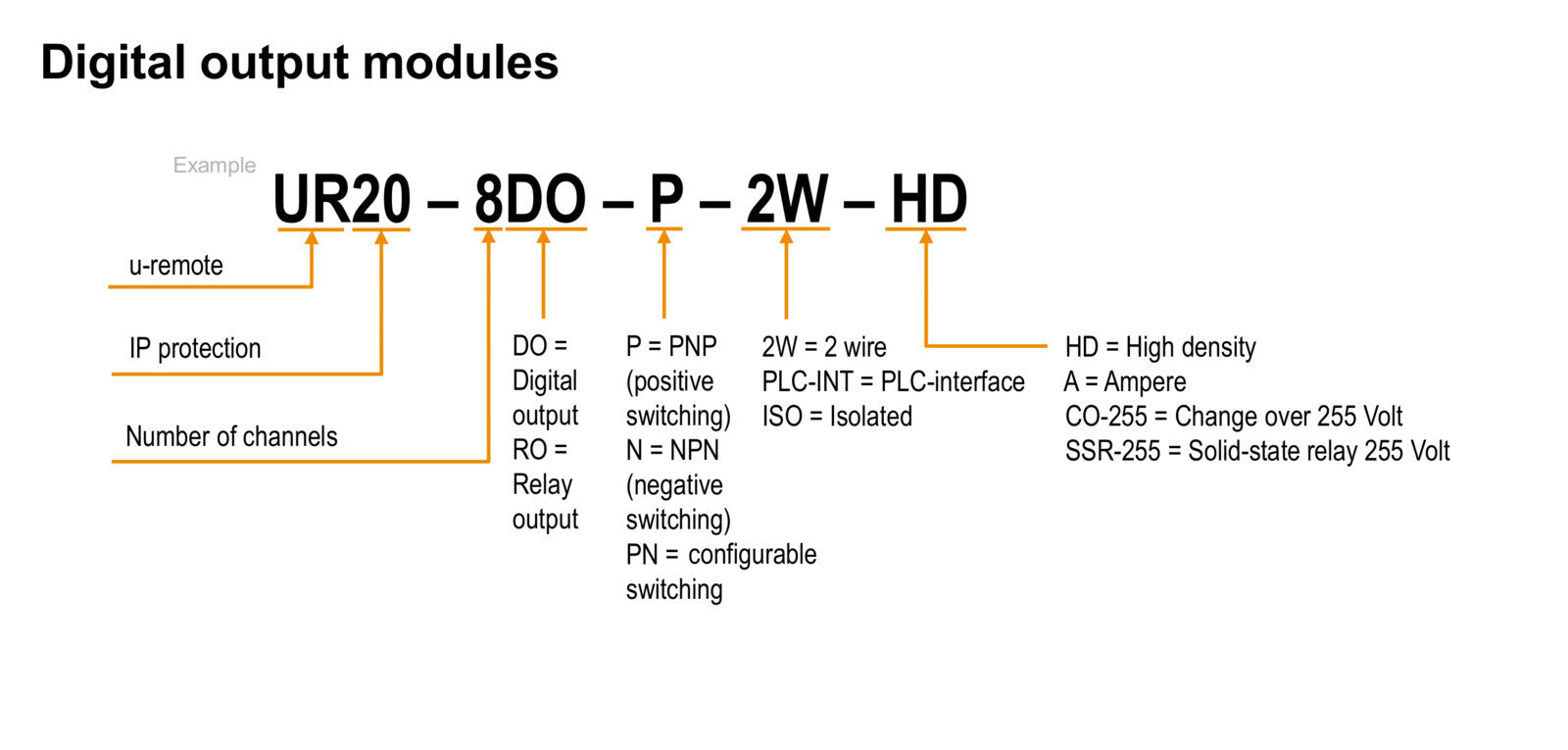

Weidmüller UR20-16DO-P-PLC-INT is a 16-channel digital output module for the u-remote I/O system with PNP (sourcing) solid-state outputs at 500 mA per channel and a 20-pin ribbon-cable front connector in place of individual field terminals. The PLC-INT build is intended for pre-assembled system cabling to Weidmüller interface modules, giving a high output density with fast, error-free panel termination.

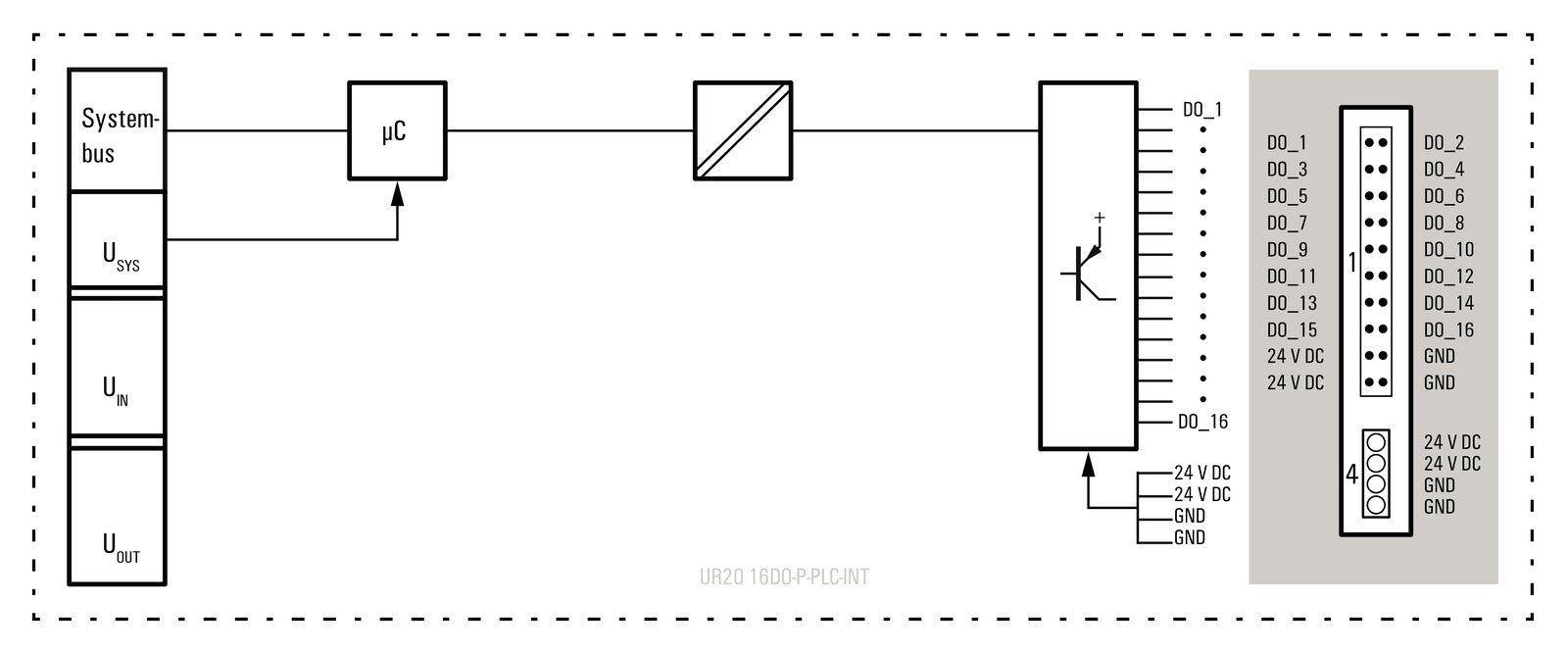

• Channels: 16 digital outputs, PNP (sourcing), solid state
• Output rating per channel: 500 mA maximum
• Output current per module: 8 A maximum
• Supply voltage: 24 V DC +20 % / −15 % via the system bus
• Current consumption: 8 mA typical from the system supply; 25 mA plus load from the output segment
• Isolation: 500 V DC between the current paths; 500 V channel to channel
• Protection: Short-circuit protection with thermal cut-out; leakage current < 0.5 mA

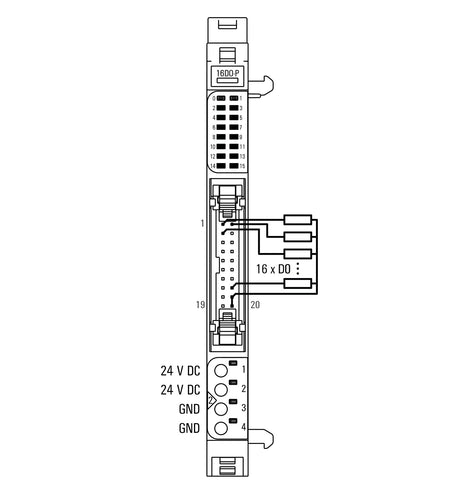

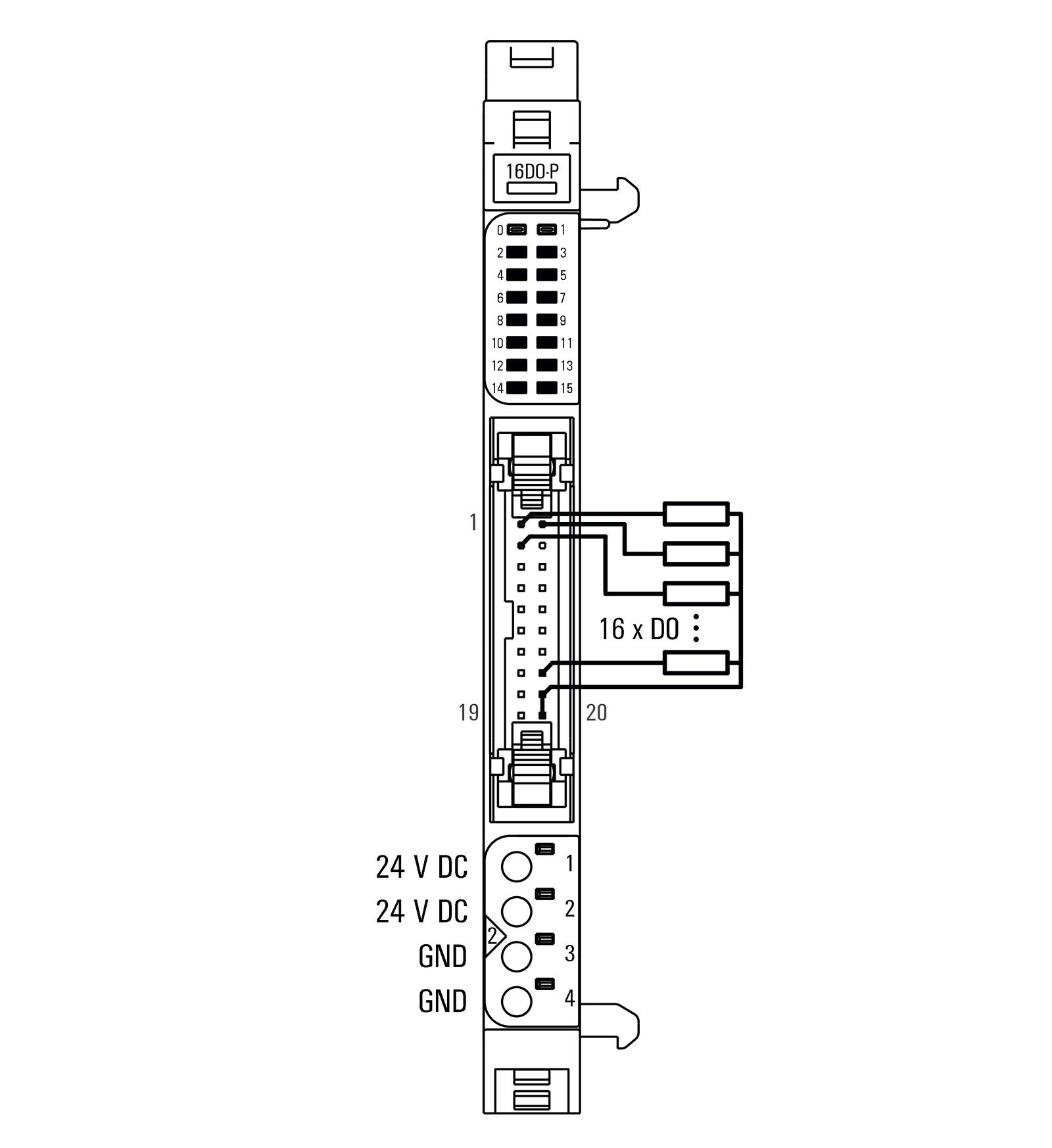

• Connection: 20-pin ribbon-cable connector for PLC system cabling; PUSH IN, 0.14 mm² to 1.5 mm² (AWG 26–16); TS 35 rail
• Response time: 100 µs maximum low to high, 250 µs maximum high to low
• Diagnostics: Module diagnosis, 1 byte diagnostic data; no individual channel diagnosis
• Operating temperature: −20 °C to +60 °C (storage −40 °C to +85 °C)
• Dimensions (W x H x D): 11.5 x 120 x 76 mm, 85 g
• Protection degree: IP20, pollution severity 2
• Approvals: cULus E141197, cULusEX E223527, RoHS compliant
