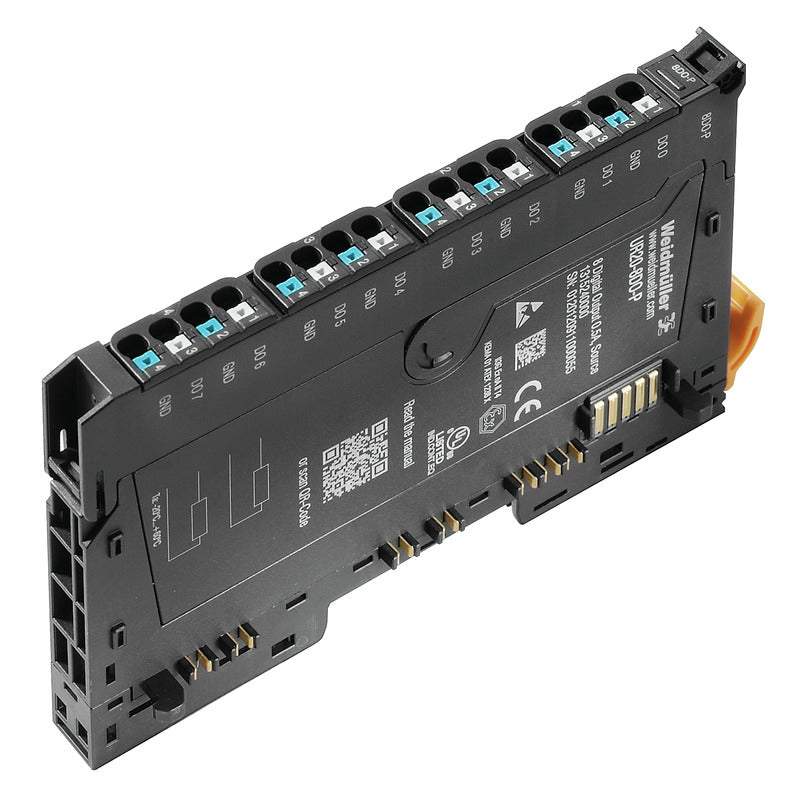

Remote I/O module, Digital signals, Output, 8-channel - UR20-8DO-P

The Weidmüller UR20-8DO-P is an 8-channel digital output module (DO = digital output, P = PNP) that clips onto a u-remote station behind the fieldbus coupler. It sits between the 4-channel UR20-4DO-P and the 16-channel UR20-16DO-P, keeping the same 500 mA per channel while raising the module total to 4 A for driving valve banks, contactors and lamps.

• Channels: 8 digital outputs
• Signal: 24 V DC, PNP
• Output current: 500 mA per channel, 4 A total per module
• Load types: ohmic, inductive and lamp loads
• Protection: short-circuit protected by thermal cut-out

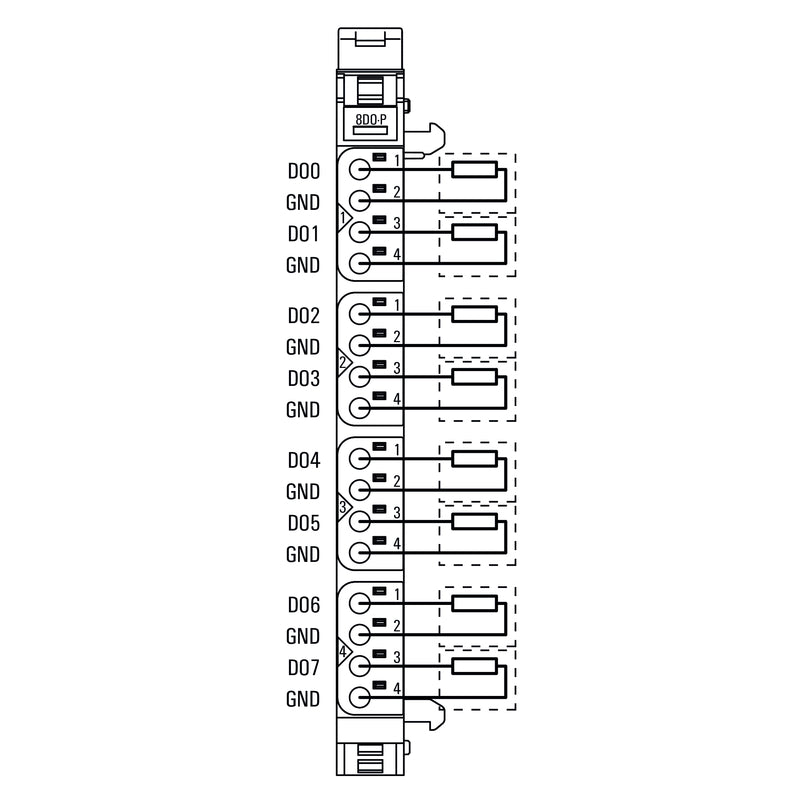

• Connection: 2-conductor, PUSH IN
• Diagnostics: module level (no per-channel diagnosis)
• Module width: 11.5 mm
• Operating temperature: −20 °C to +60 °C
