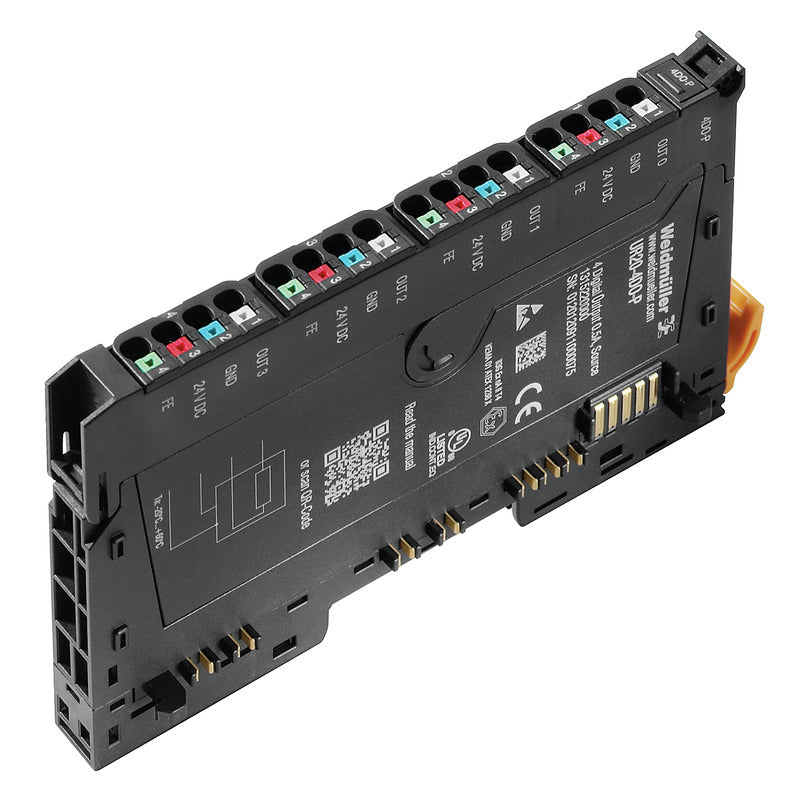

Remote I/O module, Digital signals, Output, 4-channel - UR20-4DO-P

The Weidmüller UR20-4DO-P is a 4-channel digital output module (DO = digital output, P = PNP) that clips onto a u-remote station behind the fieldbus coupler. It is the smallest of the P-series output modules and suits stations that need only a handful of solenoid, contactor or indicator outputs, where the 8- and 16-channel UR20-8DO-P and UR20-16DO-P would leave channels spare.

• Channels: 4 digital outputs
• Signal: 24 V DC, PNP
• Output current: 500 mA per channel, 2 A total per module
• Protection: short-circuit protected by thermal cut-out
• Response time: 100 µs on, 250 µs off

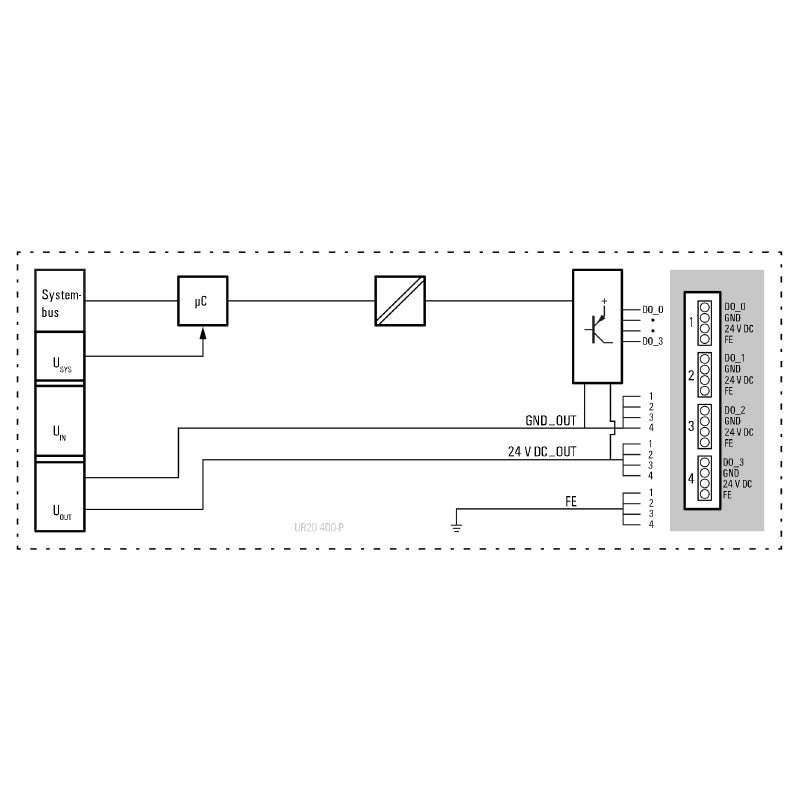

• Connection: PUSH IN, 0.14–1.5 mm², 2-, 3-conductor and 3-conductor + FE actuator wiring
• Diagnostics: module level (no per-channel diagnosis)
• Module width: 11.5 mm
• Operating temperature: −20 °C to +60 °C
