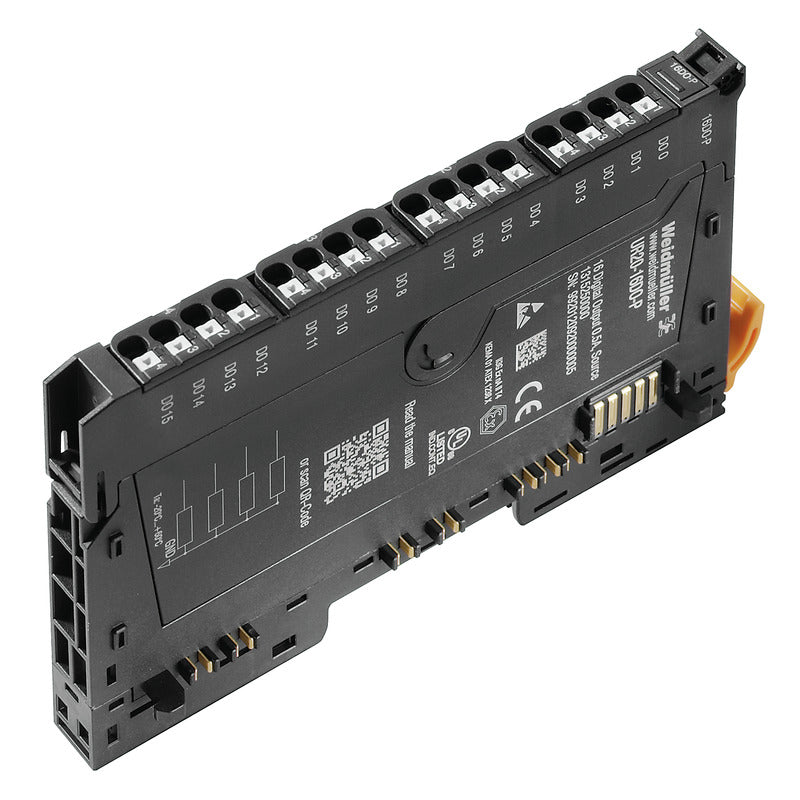

Remote I/O module, Digital signals, Output, 16-channel - UR20-16DO-P

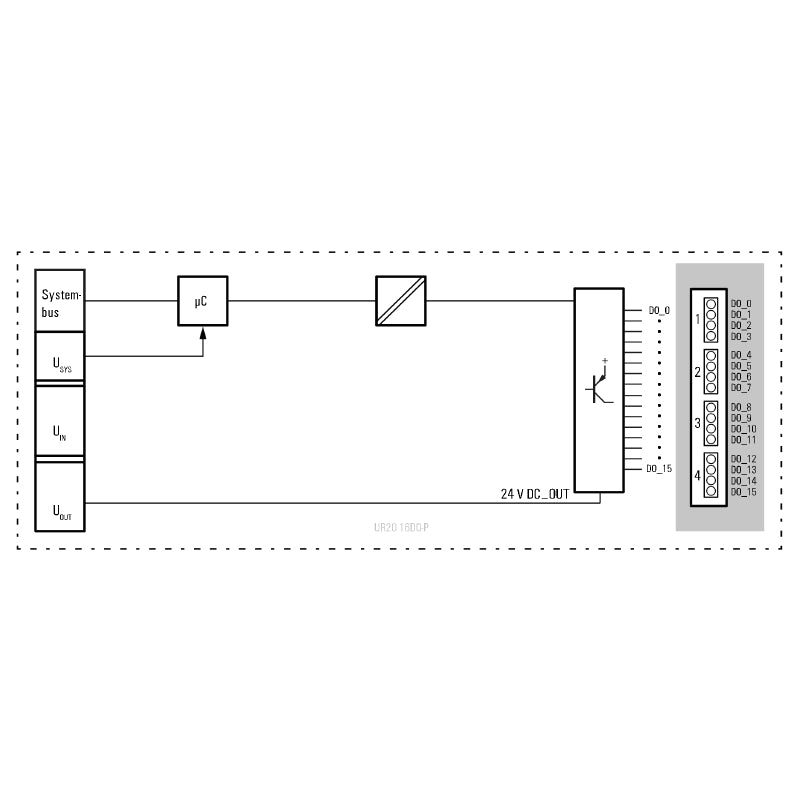

The Weidmüller UR20-16DO-P is a 16-channel digital output module (DO = digital output, P = PNP) that clips onto a u-remote station behind the fieldbus coupler. It is the highest-density output module in the P series, fitting twice the channels of the UR20-8DO-P into the same 11.5 mm width for stations with a large number of low-current actuators.

• Channels: 16 digital outputs
• Signal: 24 V DC, PNP
• Output current: 500 mA per channel, 8 A total per module
• Load types: ohmic, inductive and lamp loads; DC13 actuators to DIN EN 60947-5-1 and IEC 61131-2
• Protection: constant current with thermal switch-off and automatic restart

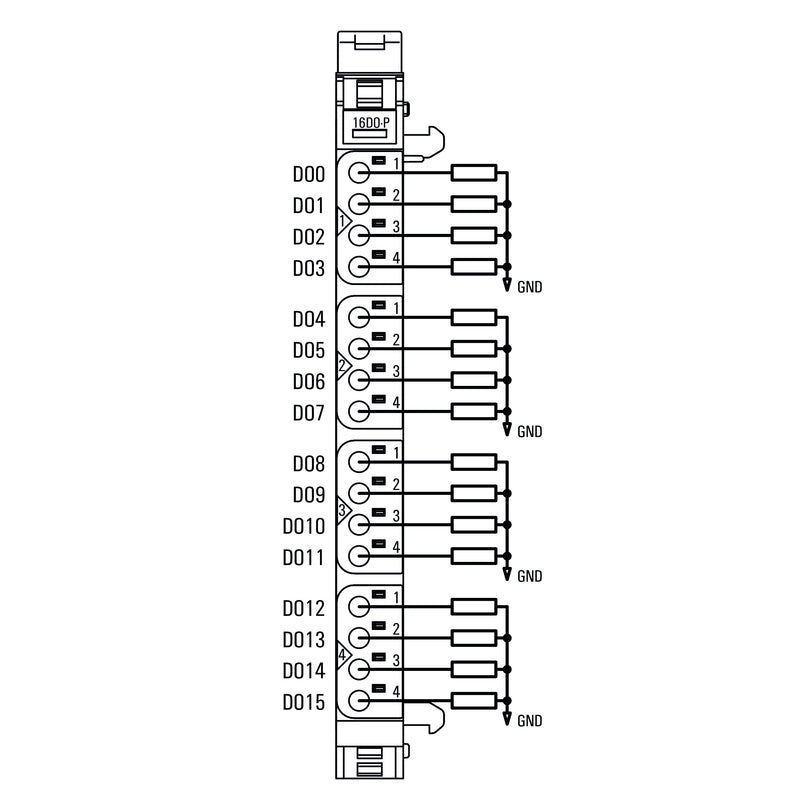

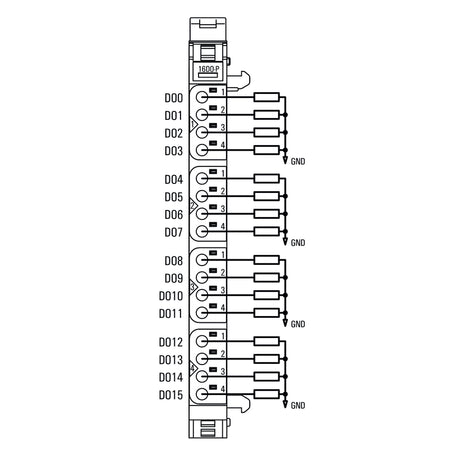

• Connection: single-conductor, PUSH IN
• Diagnostics: module level (no per-channel diagnosis)
• Module width: 11.5 mm
• Operating temperature: −20 °C to +60 °C
