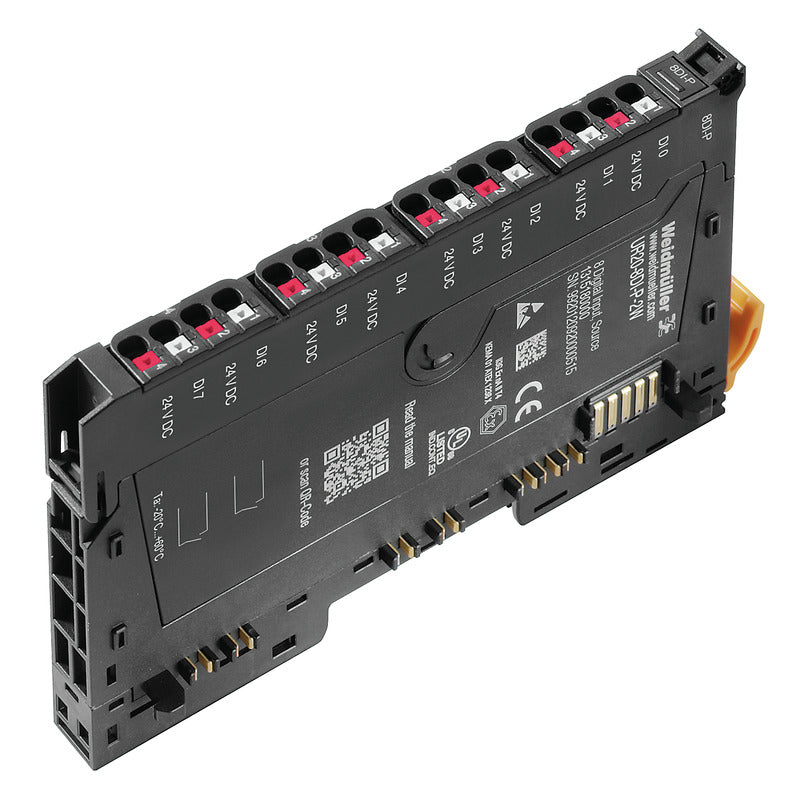

Remote I/O module, Digital signals, Input, 8-channel, 2-conductor connection - UR20-8DI-P-2W

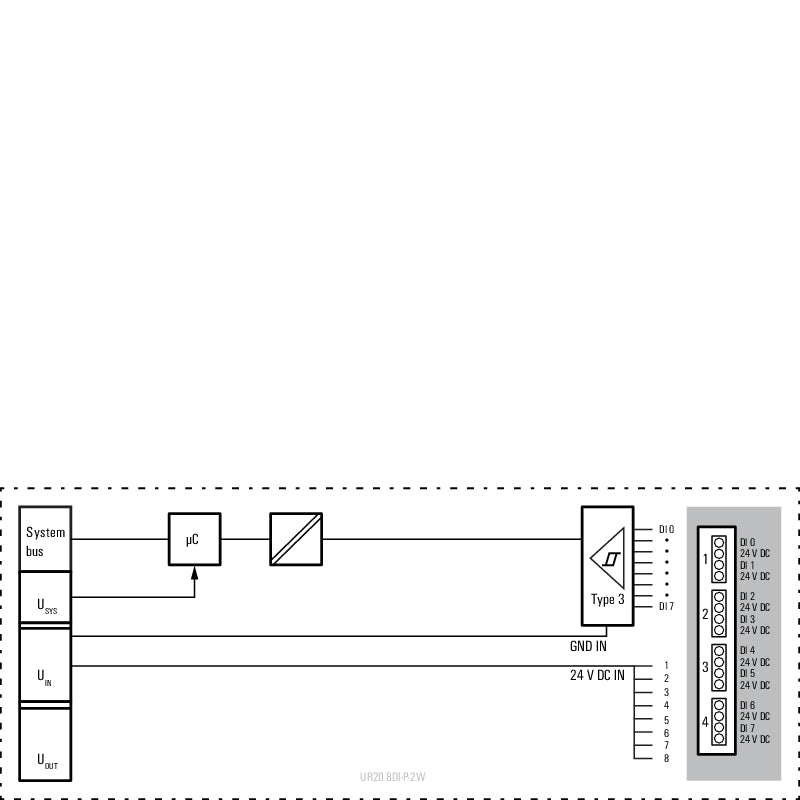

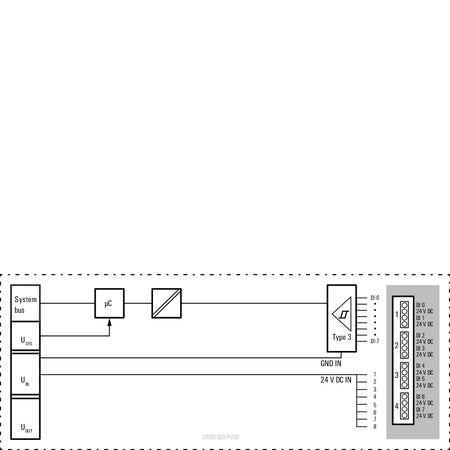

The Weidmüller UR20-8DI-P-2W is an 8-channel digital input module (DI = digital input, P = PNP) that clips onto a u-remote station behind the fieldbus coupler. The 2-conductor terminal layout (2W) suits contacts and sensors that already have their own supply, so it uses fewer terminal points than the otherwise identical 3-conductor UR20-8DI-P-3W.

• Channels: 8 digital inputs
• Signal: 24 V DC, PNP, sensor types 1 and 3 to EN 61131-2
• Switching thresholds: high > 11 V, low < 5 V
• Input filter: configurable

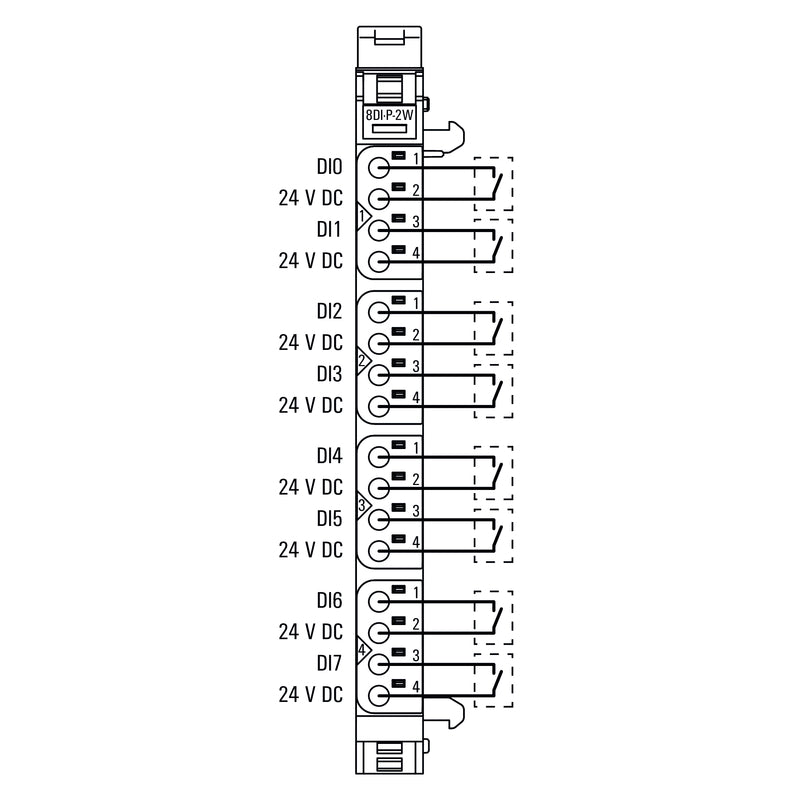

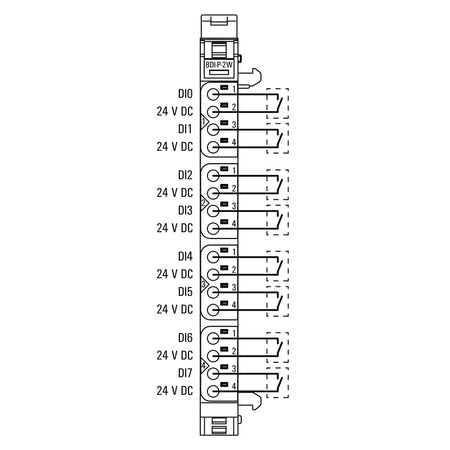

• Connection: 2-conductor, PUSH IN, 0.14–1.5 mm²
• Current draw: typ. 8 mA from the system supply
• Diagnostics: module level (no per-channel diagnosis)
• Dimensions: 11.5 mm wide, 120 mm high, 76 mm deep
• Operating temperature: −20 °C to +60 °C
