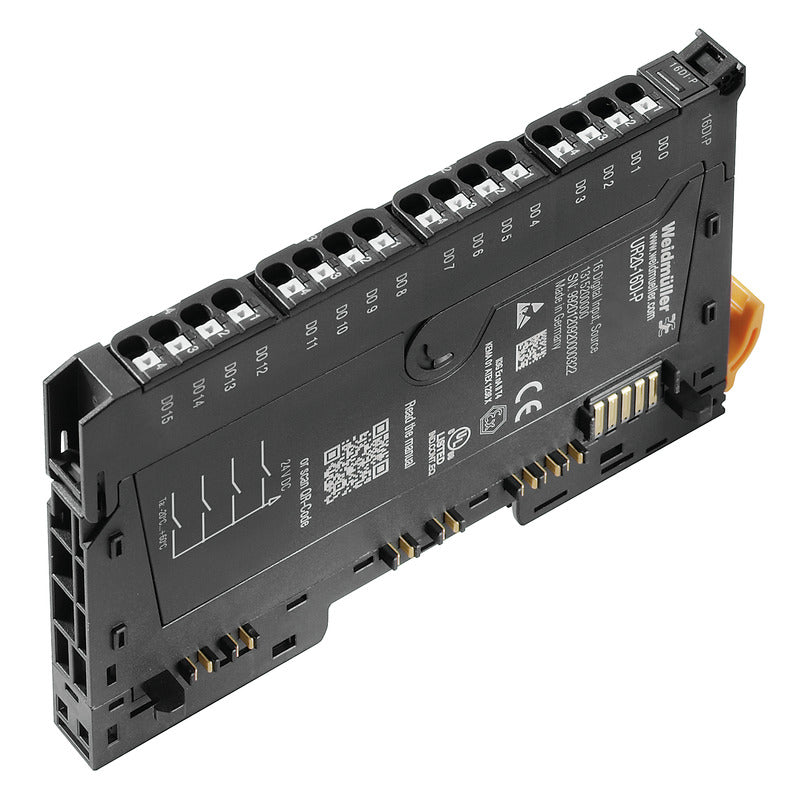

Remote I/O module, Digital signals, Input, 16-channel - UR20-16DI-P

The Weidmüller UR20-16DI-P is a 16-channel digital input module (DI = digital input, P = PNP) that clips onto a u-remote station behind the fieldbus coupler. It doubles the channel count of the 8-channel UR20-8DI-P variants in the same 11.5 mm width, using single-conductor terminals, so it is the pick where panel space is tight and the sensors are supplied separately.

• Channels: 16 digital inputs
• Signal: 24 V DC, PNP, sensor types 1 and 3 to EN 61131-2
• Switching thresholds: high > 11 V, low < 5 V
• Input filter: 3 ms

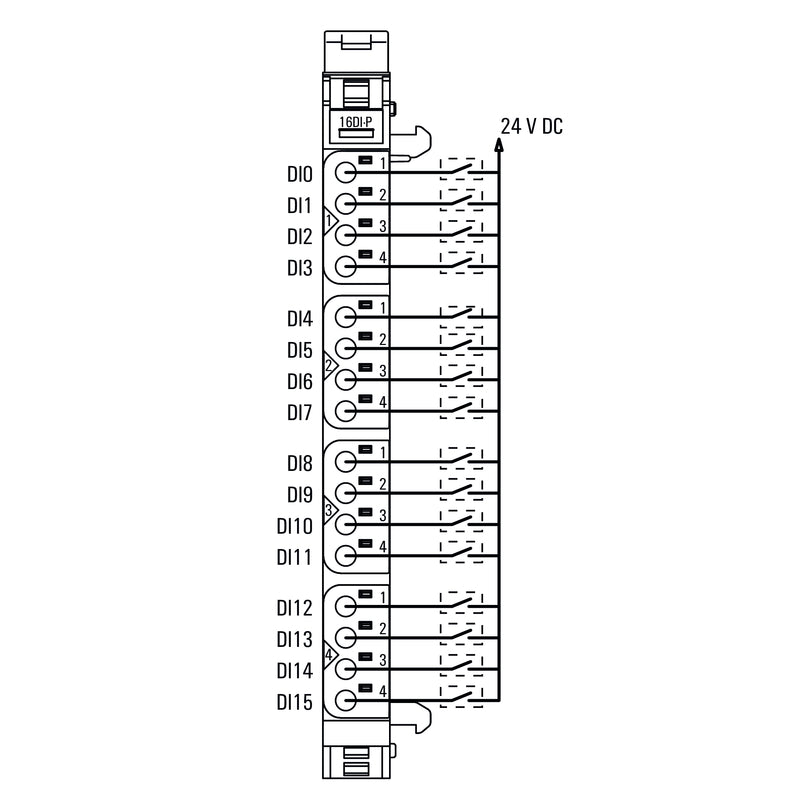

• Connection: single-conductor, PUSH IN
• Current draw: typ. 8 mA from the system supply
• Diagnostics: module level (no per-channel diagnosis)
• Dimensions: 11.5 mm wide, 120 mm high, 76 mm deep
• Operating temperature: −20 °C to +60 °C
