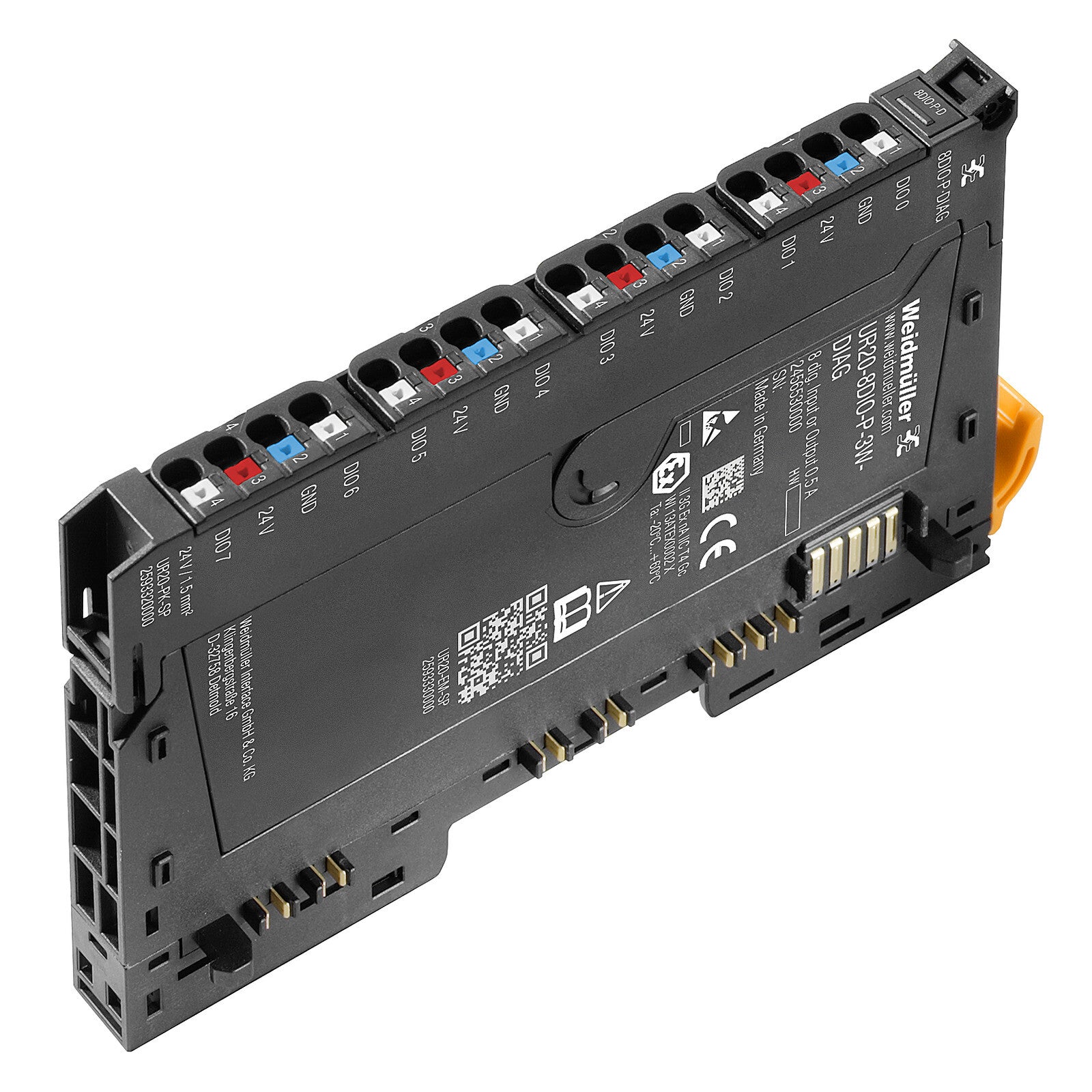

REMOTE I/O MODULE DIGITAL SIGNALS 8-CHANNEL | UR20-8DIO-P-3W-DIAG

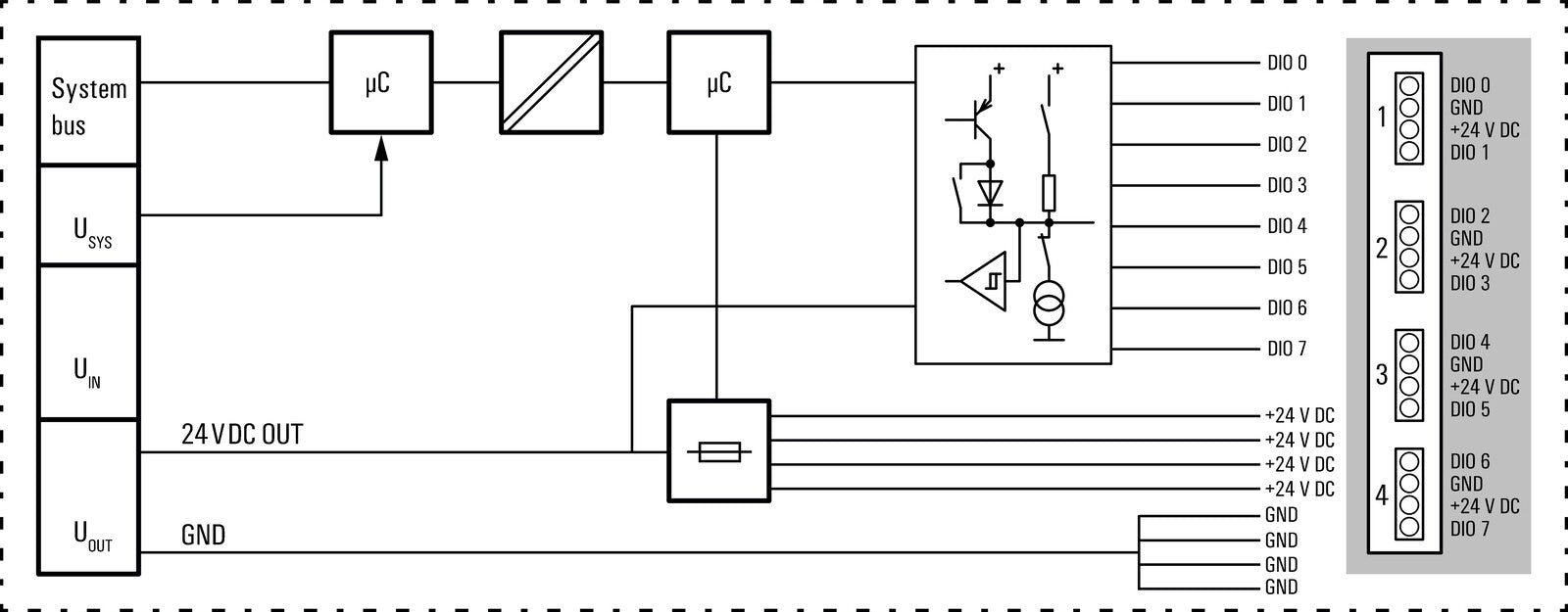

Weidmüller UR20-8DIO-P-3W-DIAG is an 8-channel digital I/O module for the u-remote system in which every channel is parametrisable as either an input or an output, all PNP (sourcing). The 3W terminal layout takes 3-wire sensors and actuators directly, and DIAG means per-channel diagnostics with overcurrent monitoring, so a faulty channel is identified individually rather than as a module-level fault.

• Channels: 8, each parametrisable as digital input or digital output, PNP (sourcing)
• Signal type: Input high > +11 V, input low < +5 V; PNP-switched outputs
• Output rating per channel: 0.5 A maximum
• Output current per module: 4 A maximum
• Supply voltage: 24 V DC +20 % / −15 % via the system bus
• Current consumption: 8 mA typical from the system supply; 8 mA from the input segment; 32 mA plus load current from the output segment
• Isolation: 500 V DC between the current paths

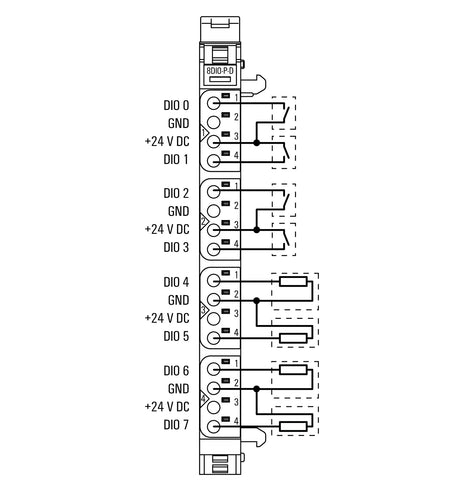

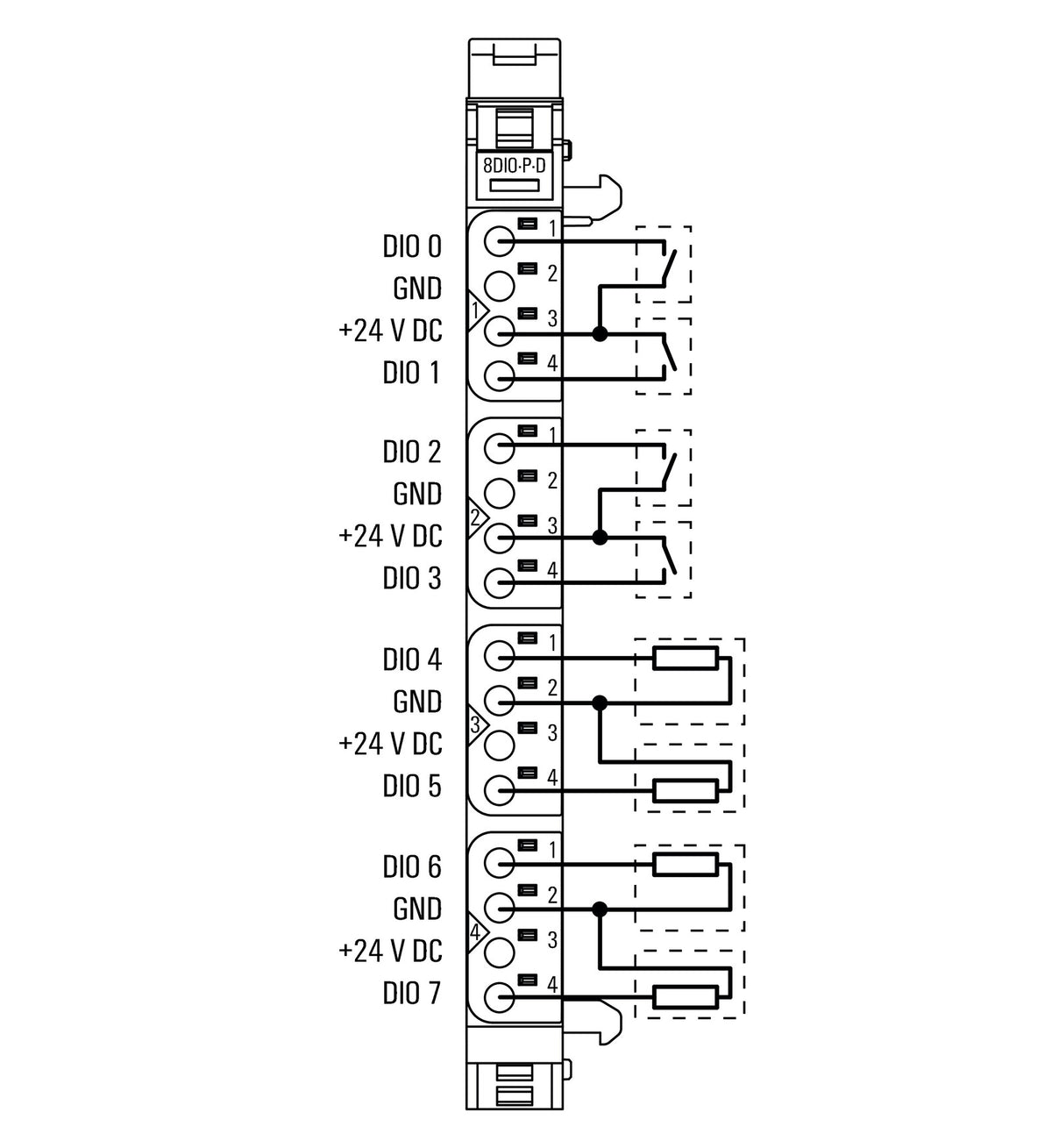

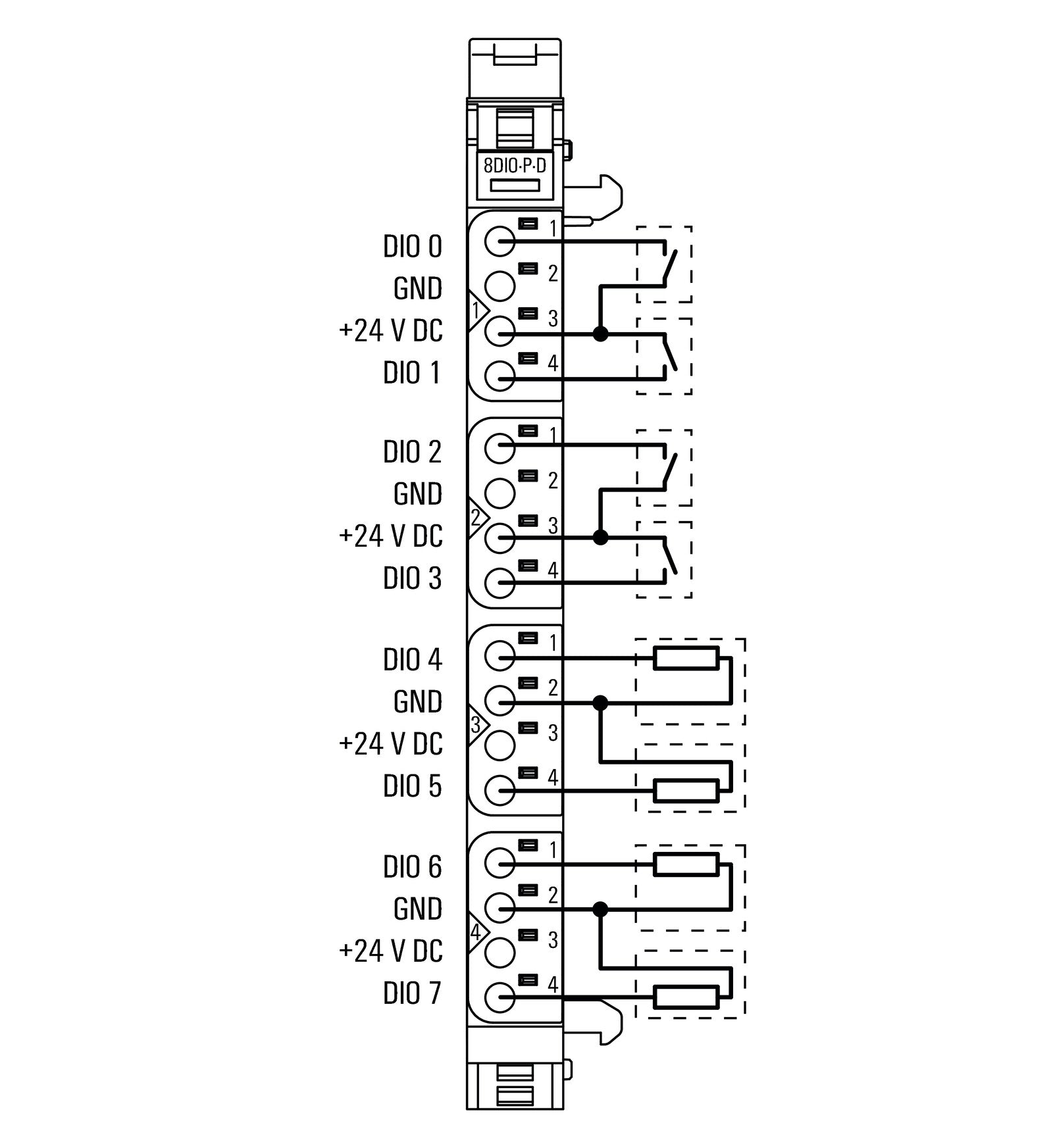

• Connection: PUSH IN for 2-wire and 3-wire sensors and actuators; TS 35 rail
• Input filter: Adjustable 0 to 40 ms
• Diagnostics: Individual channel diagnosis with overcurrent monitoring > 0.5 A, plus module diagnosis
• Protection: Short-circuit protection with constant current limiting; no reverse polarity protection (do not apply below −10 V)
• Operating temperature: −20 °C to +60 °C (storage −40 °C to +85 °C)
• Humidity: 10 % to 95 %, non-condensing
• Dimensions (W x H x D): 11.5 x 120 x 76 mm, 83 g
• Protection degree: IP20
• Approvals: cULus E141197, cULusEX E223527, RoHS compliant
