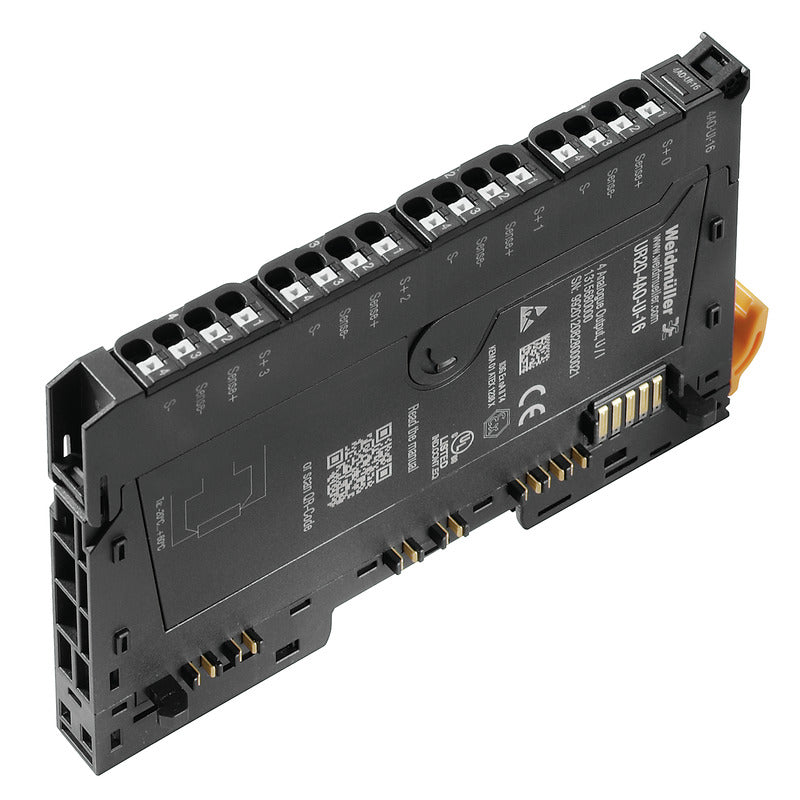

Remote I/O module, Analog signals, Output, 4-channel, Current/Voltage - UR20-4AO-UI-16-M

The Weidmüller UR20-4AO-UI-16-M is a four-channel analogue output module for the u-remote IP20 remote I/O system, driving current or voltage setpoints to positioners, variable speed drives and control valves. It is the 16-bit current/voltage output slice (AO for analogue out, UI for current or voltage selectable), with typical accuracy of 0.05 % FSR for loops where the setpoint has to hold closer than a general-purpose output card would allow.

• Channels: 4 analogue outputs, current or voltage selectable (UI)
• Output ranges: 0…5 V, 0…10 V, 1…5 V, 2…10 V, ±5 V, ±10 V, or 0–20 mA and 4–20 mA
• Resolution: 16 bit
• Measurement error: ±0.1 % FSR max., 0.05 % FSR typical
• Response time: 1 ms for 4 channels
• Load: >1 kΩ for voltage output, <600 Ω for current output
• Diagnostics: module diagnosis

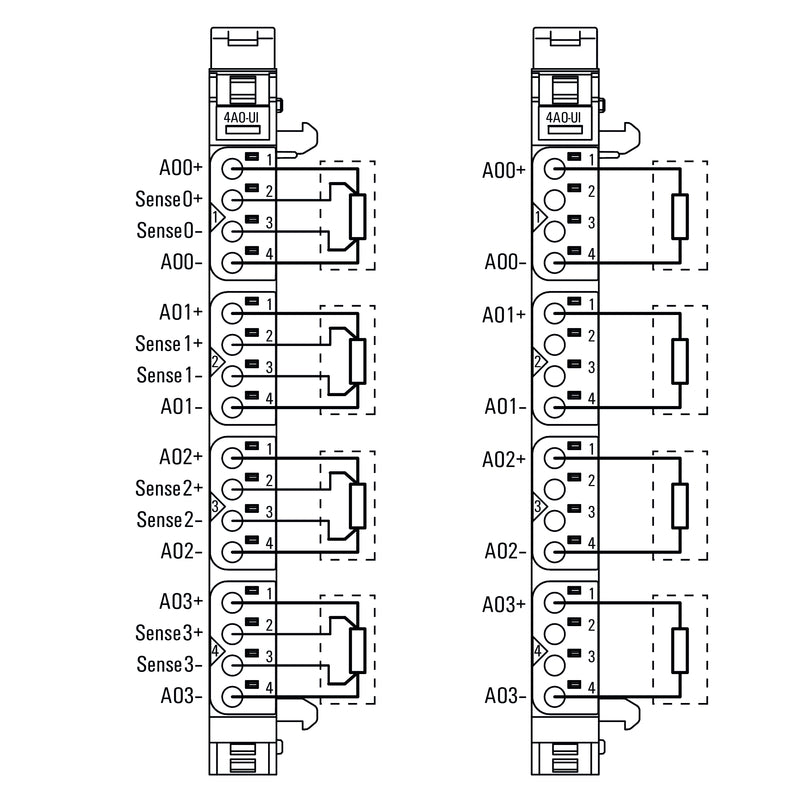

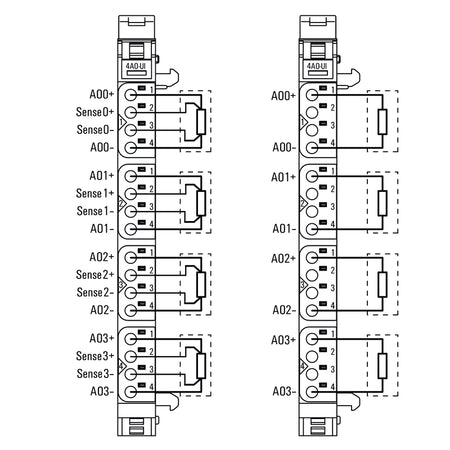

• Connection: PUSH IN, 2-wire with automatic detection or 4-wire, 0.14–1.5 mm²
• Module width: 11.5 mm
