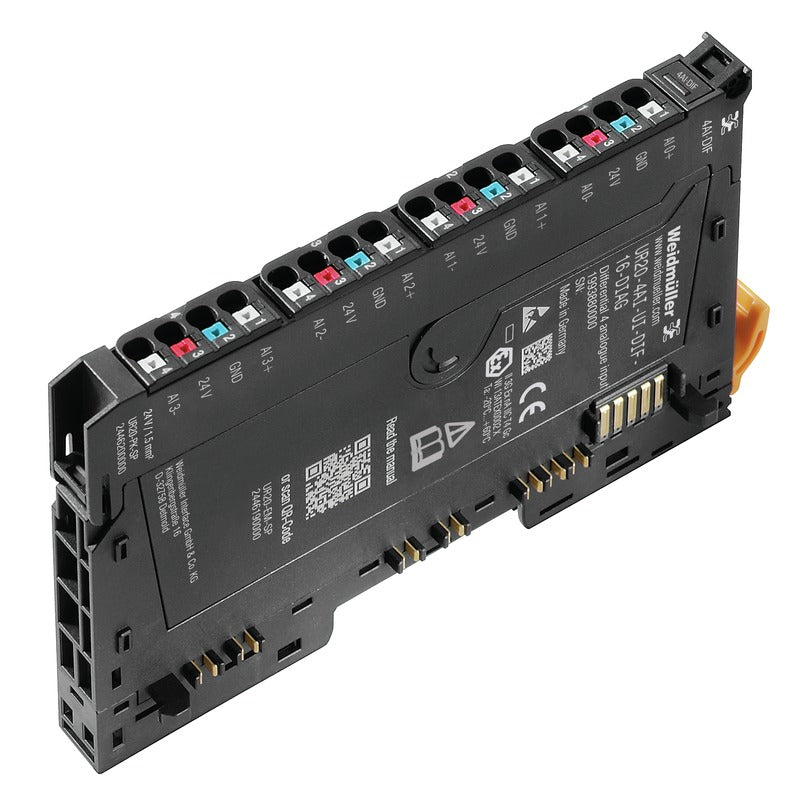

Remote I/O module, 4-channel, Analog signals, Input, Current/Voltage, 16 Bit - UR20-4AI-UI-DIF-16-DIAG

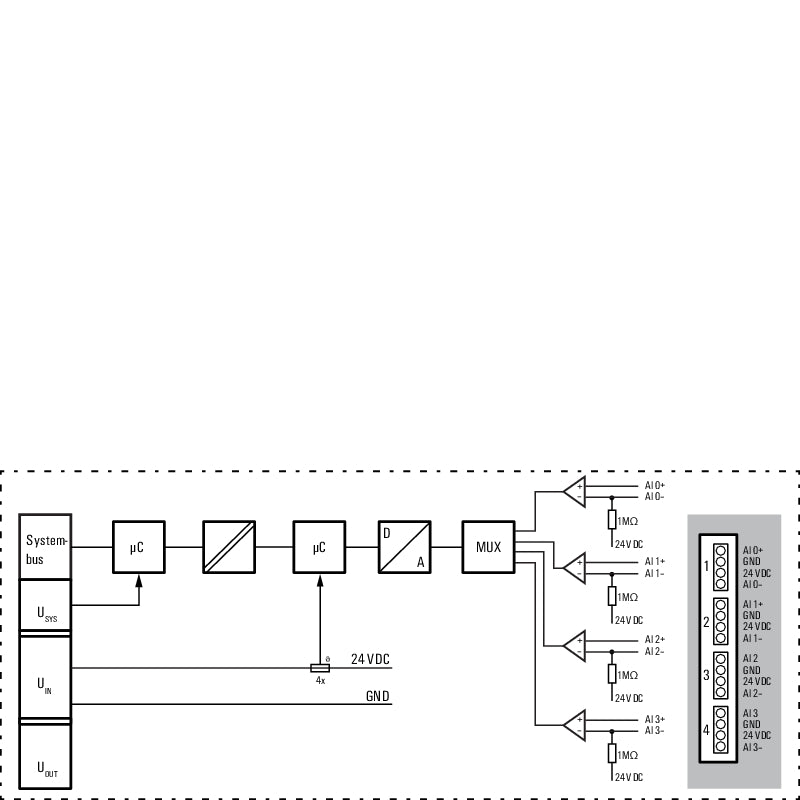

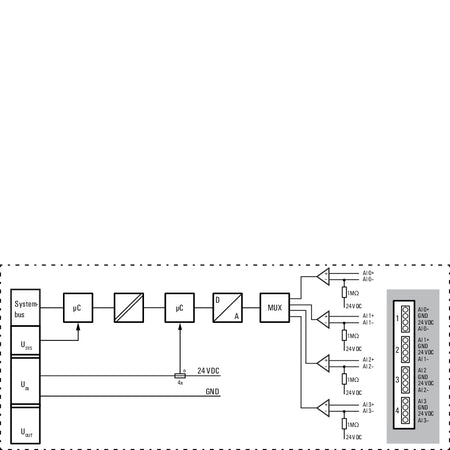

The Weidmüller UR20-4AI-UI-DIF-16-DIAG is a four-channel differential analogue input module for the u-remote IP20 remote I/O system, taking current or voltage signals at 16-bit resolution. The DIF suffix denotes differential inputs with a ±30 V common mode range, which is the reason to pick it over the single-ended UR20-4AI-UI-16-DIAG on long field runs or where the sensor earth sits at a different potential to the station.

• Channels: 4 differential analogue inputs, current or voltage selectable (UI)
• Signal ranges: 0…5 V, ±5 V, 0…10 V, ±10 V, 1…5 V, 2…10 V, or 0…20 mA and 4…20 mA
• Resolution: 16 bit
• Measurement error: 0.1 % FSR
• Conversion time: 1 ms
• Common mode range: −30 V to +30 V
• Diagnostics: module diagnosis and individual channel diagnosis

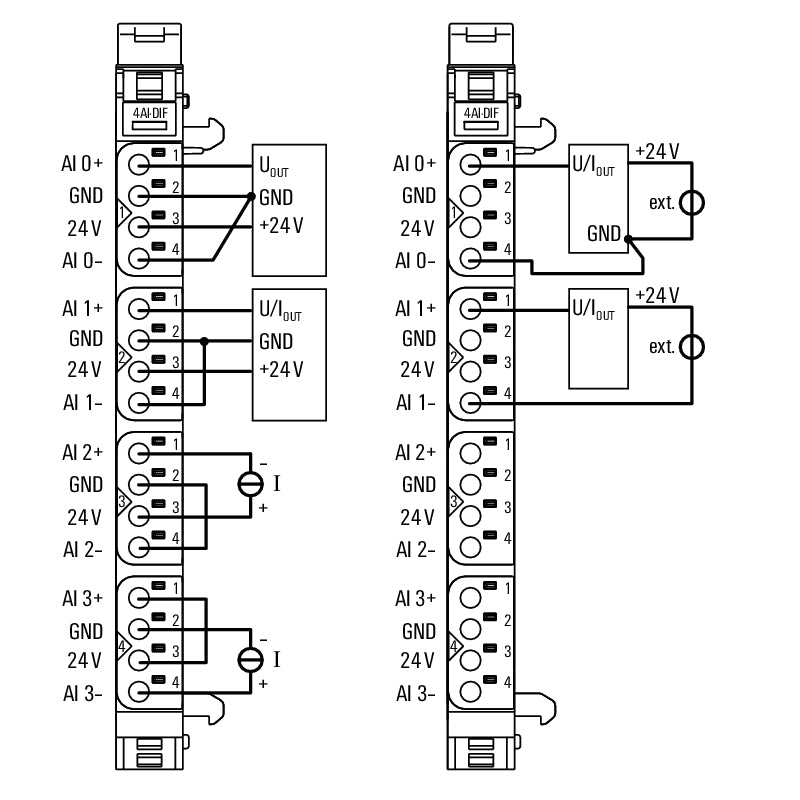

• Connection: PUSH IN, 2-wire, 3-wire or 4-wire
• Module width: 11.5 mm
