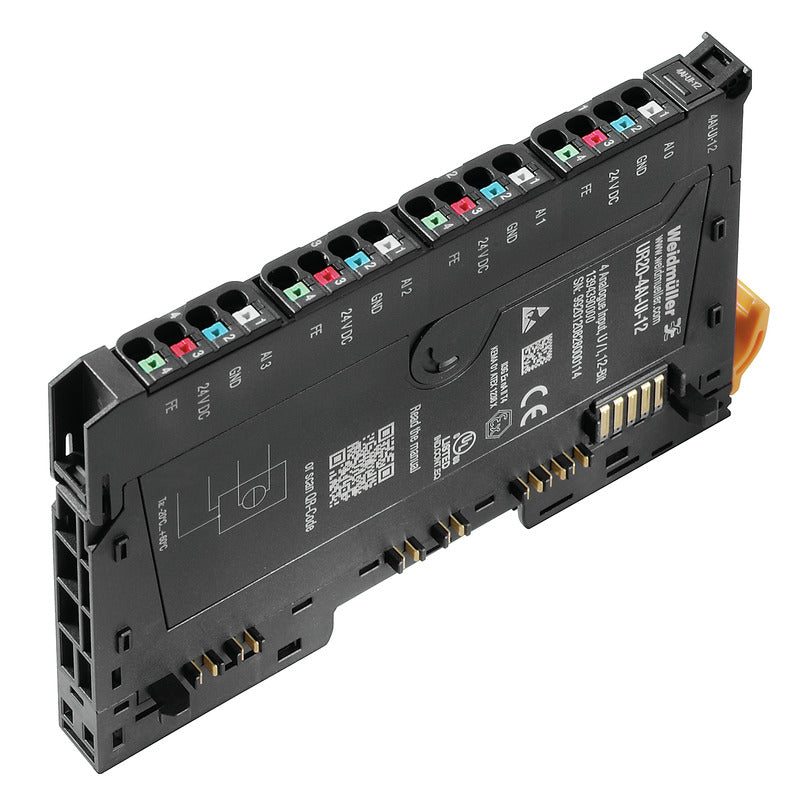

Remote I/O module, 4-channel, Analog signals, Input, Current/Voltage, 12 Bit - UR20-4AI-UI-12

The Weidmüller UR20-4AI-UI-12 is a four-channel analogue input module for the u-remote IP20 remote I/O system, reading current or voltage signals from field instrumentation. It differs from the UR20-4AI-UI-16 only in resolution — 12 bit rather than 16 bit — which is normally sufficient for level, pressure and flow loops where the extra resolution would be lost in the transmitter anyway.

• Channels: 4 analogue inputs, current or voltage selectable (UI)
• Signal ranges: 0…5 V, 0…10 V, 1…5 V, 2…10 V, ±10 V, or 0–20 mA and 4–20 mA
• Resolution: 12 bit
• Measurement error: 0.1 % FSR
• Conversion time: 1 ms
• Input resistance: 100 kΩ voltage, 41.2 Ω current
• Diagnostics: module diagnosis only, no individual channel diagnosis

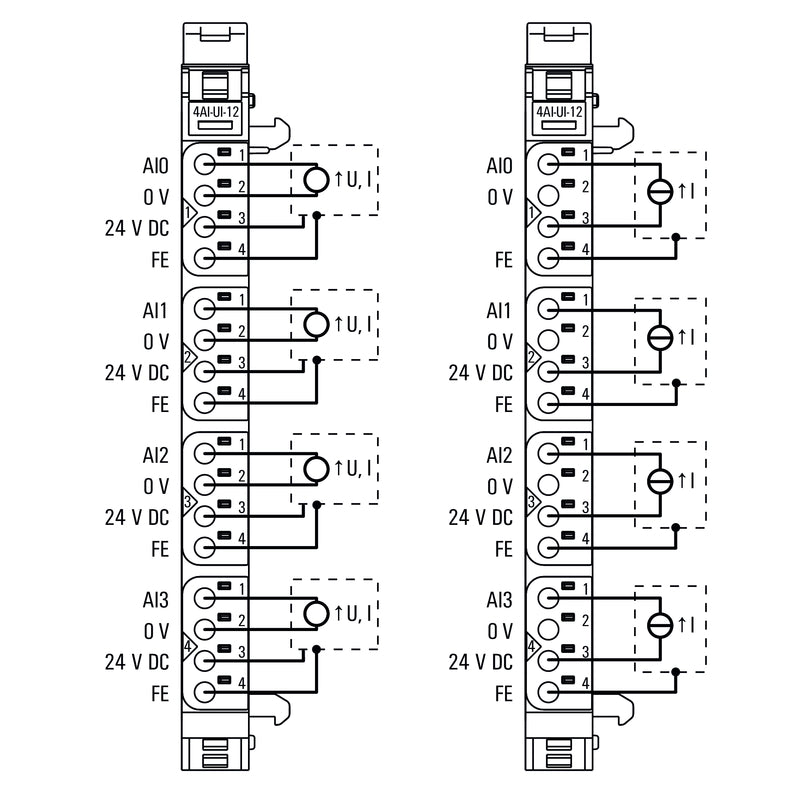

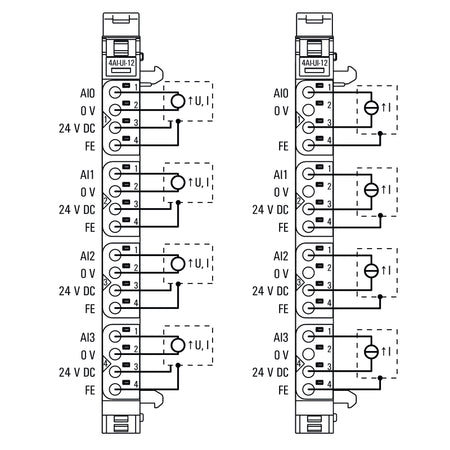

• Connection: PUSH IN, 2-wire, 3-wire or 3-wire + FE
• Module width: 11.5 mm
