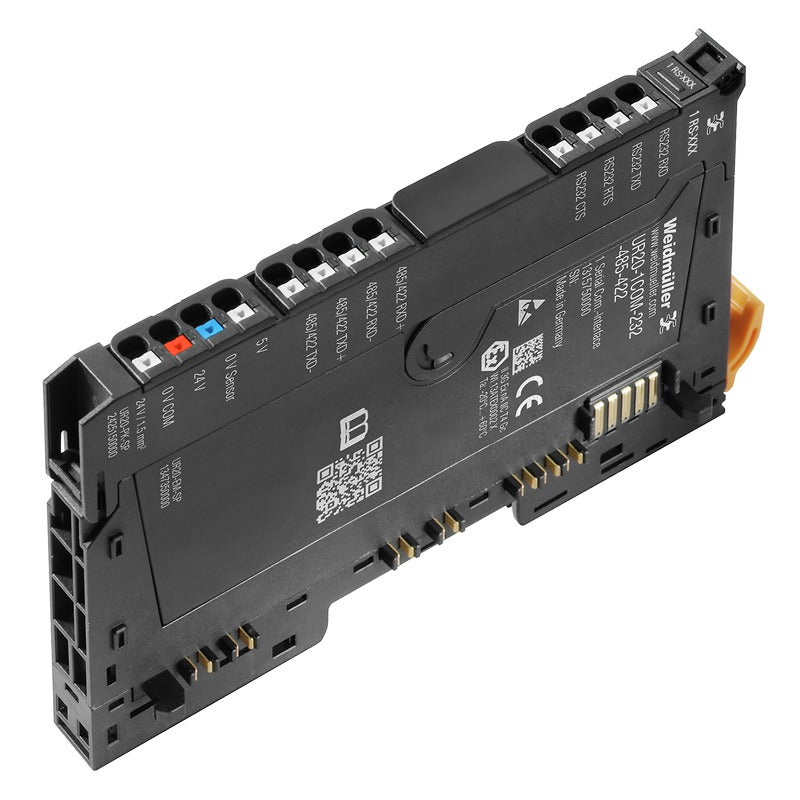

Remote I/O module, 1-channel, RS232/RS485/RS422 communication, PUSH IN connection - UR20-1COM-232-485-422

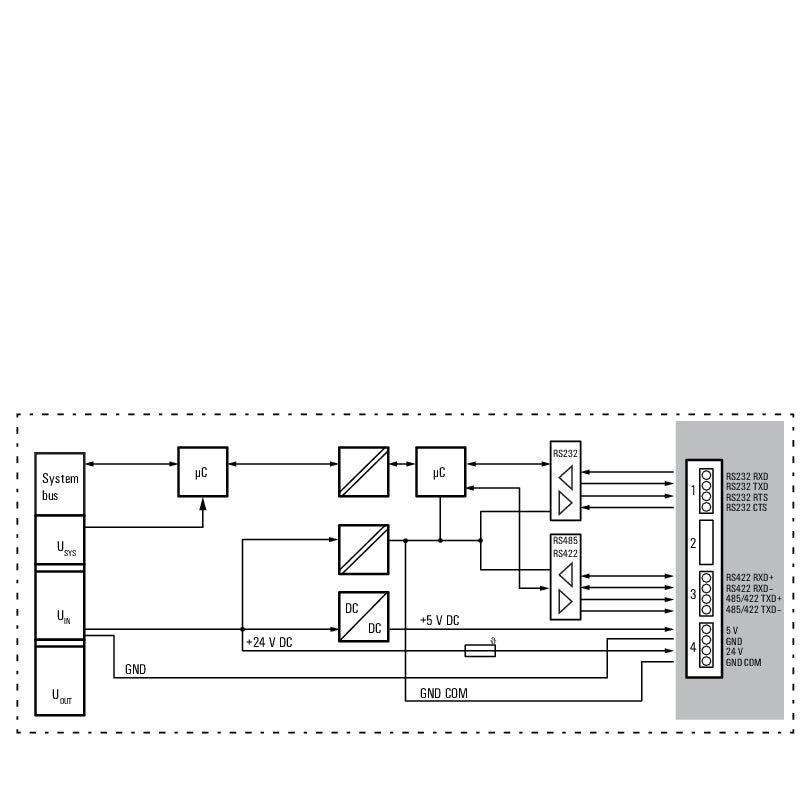

Weidmüller UR20-1COM-232-485-422 is a single-channel serial communication module for the u-remote IP20 remote I/O system, providing one interface switchable between RS232, RS485 and RS422. It brings serial devices such as barcode scanners, weighing terminals and drives into the u-remote station on any supported coupler, and offers 500 V DC galvanic isolation between the current paths.

• Function: serial communication module
• Channels: 1 serial interface

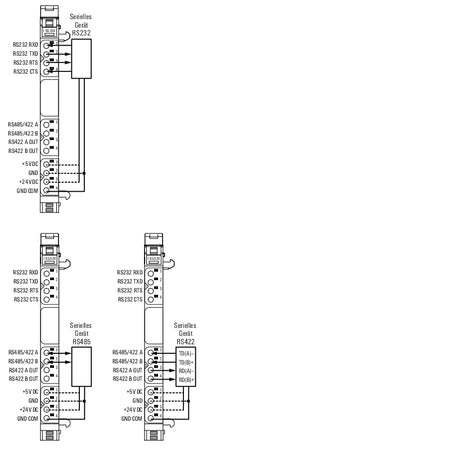

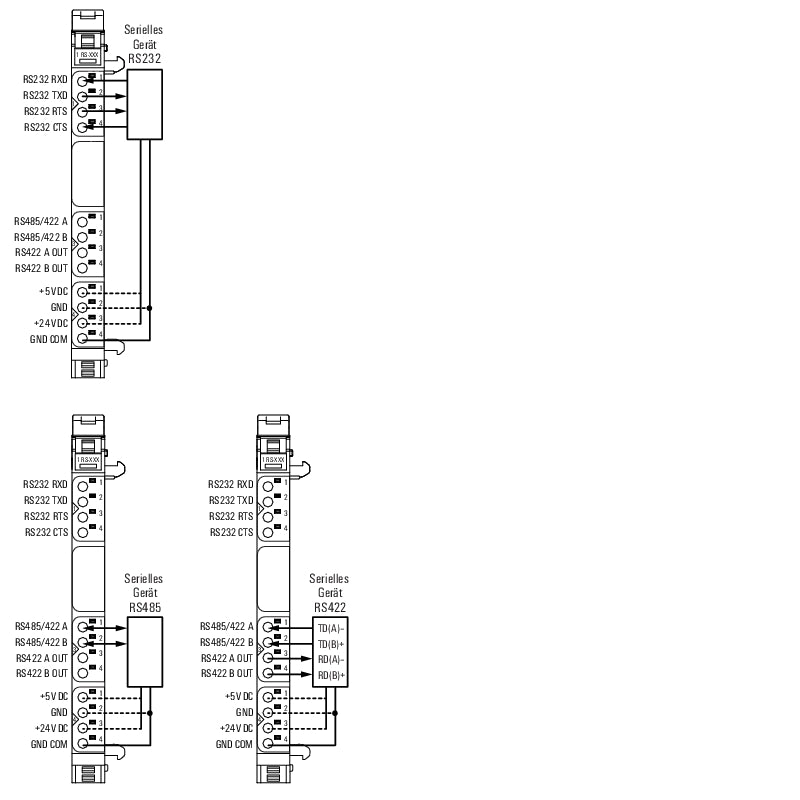

• Interface standards: RS232, RS485, RS422
• Supported coupler protocols: PROFINET IRT/RT, CC-Link IE TSN, IEC 61162-450, PROFIBUS DP-V1, EtherCAT, Modbus TCP, EtherNet/IP, CANopen, DeviceNet, POWERLINK, CC-Link
• System bus: up to 48 Mbit/s
• Supply voltage: 24 V DC +20 % / −15 % via the system bus
• Current consumption: 8 mA typical from the system supply; 16 mA plus load from the power segment
• Isolation: 500 V DC between the current paths
• Connection system: PUSH IN, 0.14 to 1.5 mm²
• Mounting: TS 35 DIN rail
• Operating temperature: −20 °C to +60 °C
• Dimensions (W x H x D): 11.5 x 120 x 76 mm
• Protection degree: IP20
• Approvals: UL (E141197), cULusEX (E223527), RoHS compliant
• Order number: 1315750000
