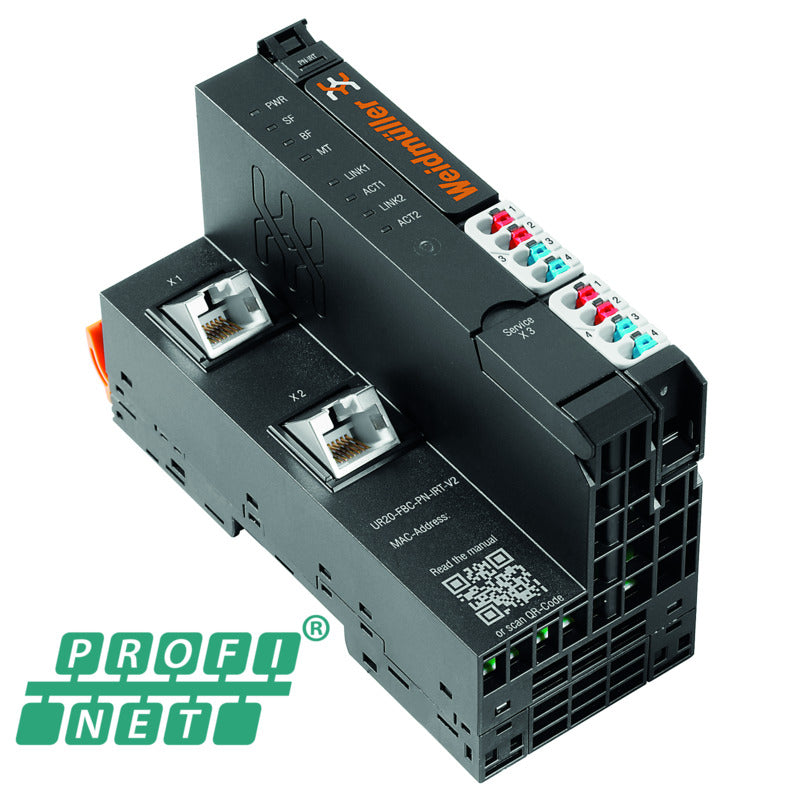

Remote I/O Fieldbus Coupler PROFINET IRT - UR20-FBC-PN-IRT-V2

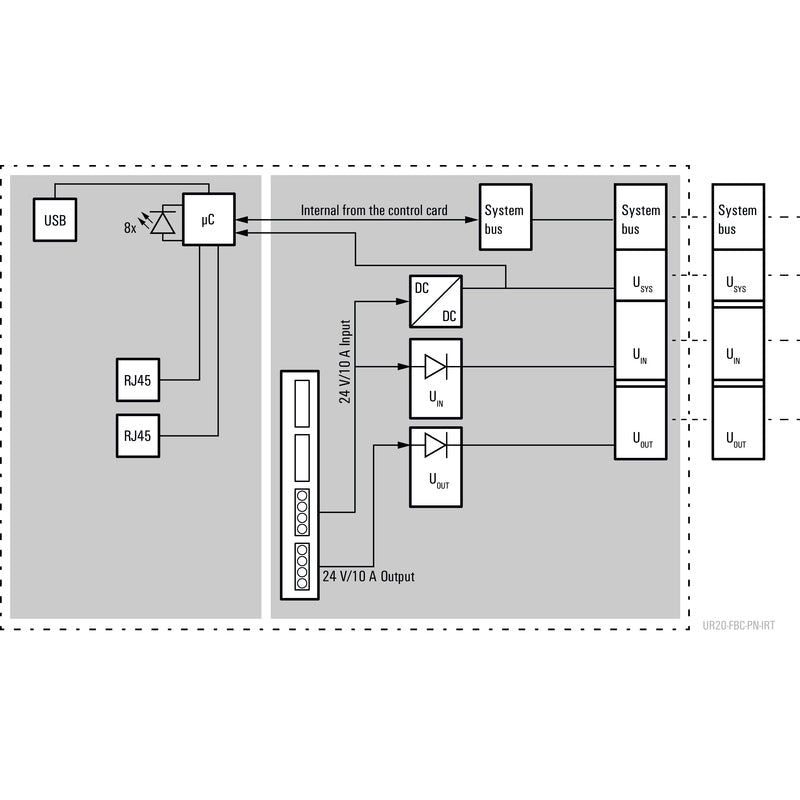

The Weidmüller UR20-FBC-PN-IRT-V2 is a PROFINET fieldbus coupler (FBC = fieldbus coupler) that heads a u-remote station, connecting the network to the I/O modules clipped on behind it and feeding their system supply. It supports IRT as well as RT, so it is the variant for motion and other cyclic tasks that need isochronous real-time timing, where the Modbus/TCP UR20-FBC-MOD-TCP-V2 would not suit.

• Protocol: PROFINET IRT and RT
• Ports: 2 × RJ45, 100 Mbit/s
• Modules per station: up to 64
• Configuration: integrated web server; status LEDs per channel and per module
• Supply: 24 V DC +20 % / −15 %, typ. 100 mA from the system supply
• Current paths: max. 10 A each through the input and output paths
• Connection: PUSH IN, 0.14–1.5 mm²
• Dimensions: 52 mm wide, 120 mm high, 76 mm deep
• Operating temperature: −20 °C to +60 °C; IP20
