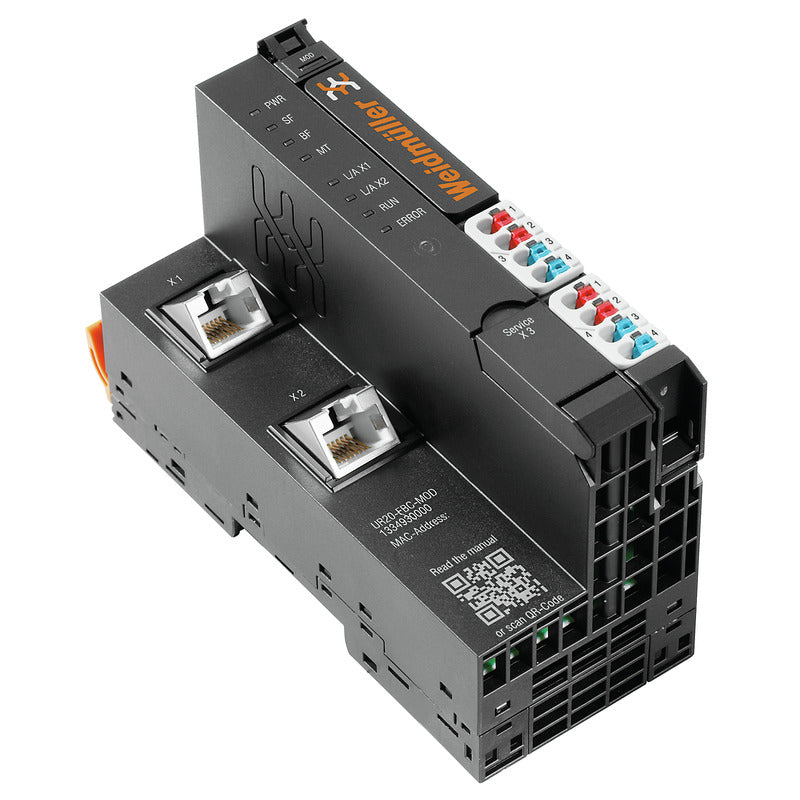

Remote I/O fieldbus coupler, Ethernet, Modbus/TCP - UR20-FBC-MOD-TCP-V2

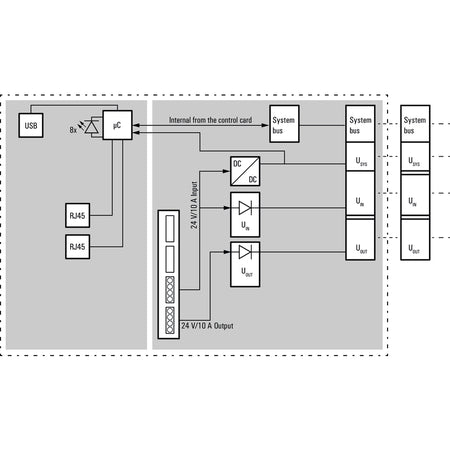

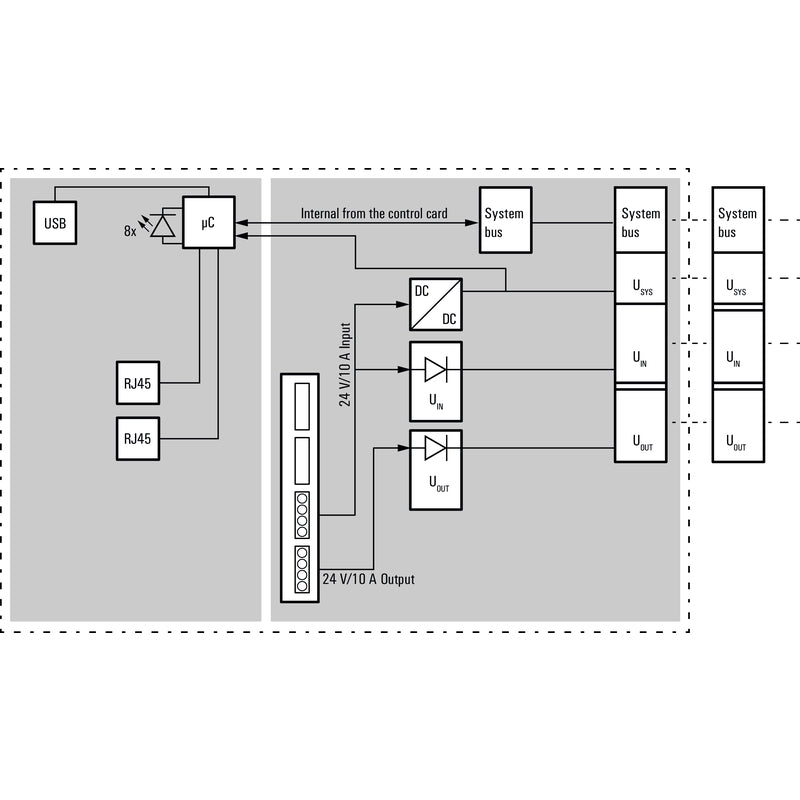

The Weidmüller UR20-FBC-MOD-TCP-V2 is a Modbus/TCP fieldbus coupler (FBC = fieldbus coupler) that heads a u-remote station, carrying the DIN rail connection to the network and the system supply for the I/O modules clipped on behind it. It is the variant to choose where the controller talks Modbus/TCP rather than PROFINET, and its two RJ45 ports allow couplers to be daisy-chained without a separate switch.

• Protocol: Modbus/TCP over Ethernet

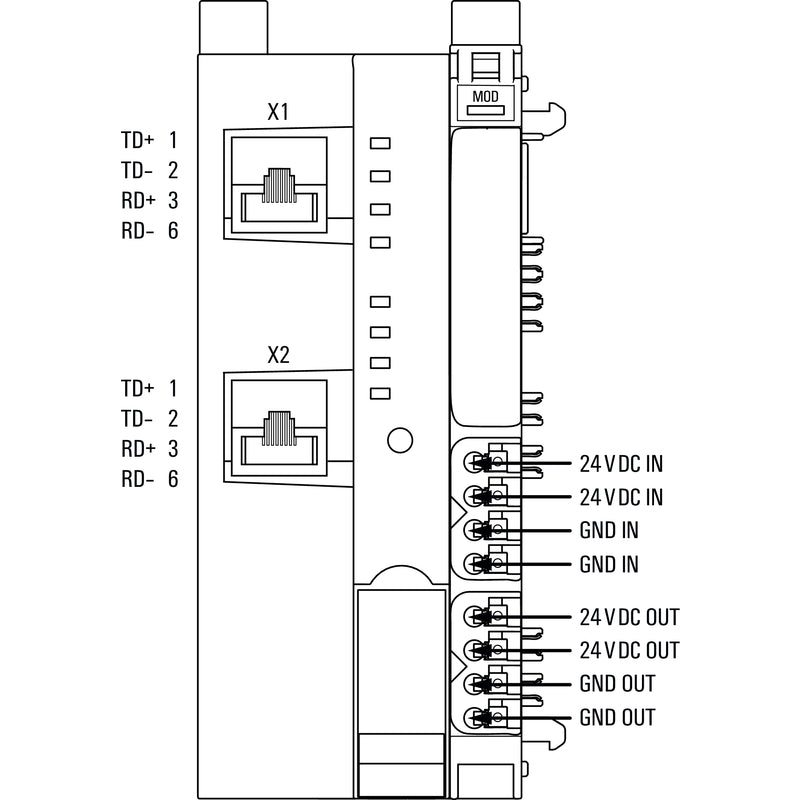

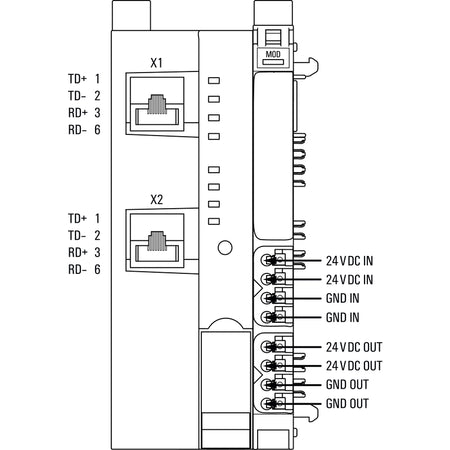

• Ports: 2 × RJ45, 100 Mbit/s
• Modules per station: up to 64
• Configuration: integrated web server; status LEDs per channel and per module
• Supply: 24 V DC +20 % / −15 %, typ. 112 mA from the system supply
• Current paths: max. 10 A each through the input and output paths
• Connection: PUSH IN, 0.14–1.5 mm²
• Dimensions: 52 mm wide, 120 mm high, 76 mm deep
• Operating temperature: −20 °C to +60 °C; IP20
