Red LED Pilot Light 22mm 24V AC/DC IP65

Red LED Pilot Light 24V AC/DC, 22mm Flat

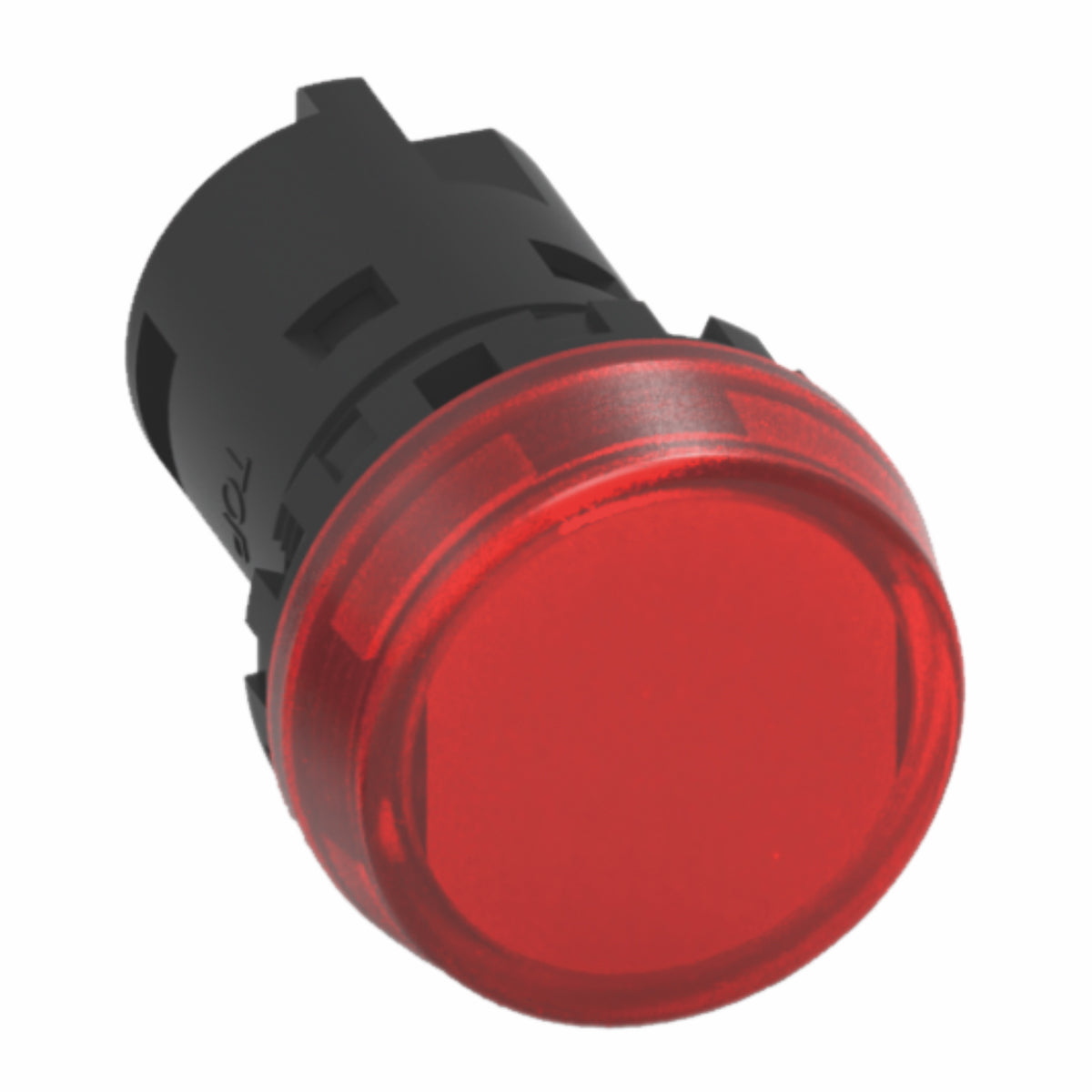

The LA1AI00R024 is a flat-lens red LED pilot light operating at 24V AC/DC, mounting into a standard 22mm panel cut-out. Solid-state LED illumination draws minimal current and removes the lamp-replacement maintenance that filament indicators carry.

Features and Specifications

Protection: IP65. Operating range -20°C to +55°C.

Standards (& Conformities): IEC 60947-1, IEC 60947-5-1, CE, RoHS.

Mounting:

Panel cut-out: Ø22.3mm ±0.2 (M22×1)
Panel thickness: 0.8–6 mm

Materials:

PC lens, PA66 housing

Manufacturer: Telergón, S.A.U., Zaragoza, Spain — European-engineered, CE marked to the Low Voltage (2014/35/EU) and RoHS (2011/65/EU) Directives.

Note: Please choose product carefully. Product selection is the responsibility of the Purchaser. Refer to relevant Standards, project requirements and technical specifications to ensure that the product meets requirements.

TROAPC's standard warranty covers all products. A 5-year warranty applies to applicable IP Enclosures products. Refer to Refunds & Returns for more information.
