Red Illuminated Pushbutton 22mm 220V AC/DC IP65
- Type
- Series
- Panel Cut-Out
- Mounting
- Material
- Colour
- IP Rating
- Operating Temp
- Standards
- Certifications
- Voltage
Standards & certifications
IP65Dust-tight · water jets
CEEU conformity
RoHSHazard-free
IEC/EN 60947-1 · 60947-5-1
Tested standards

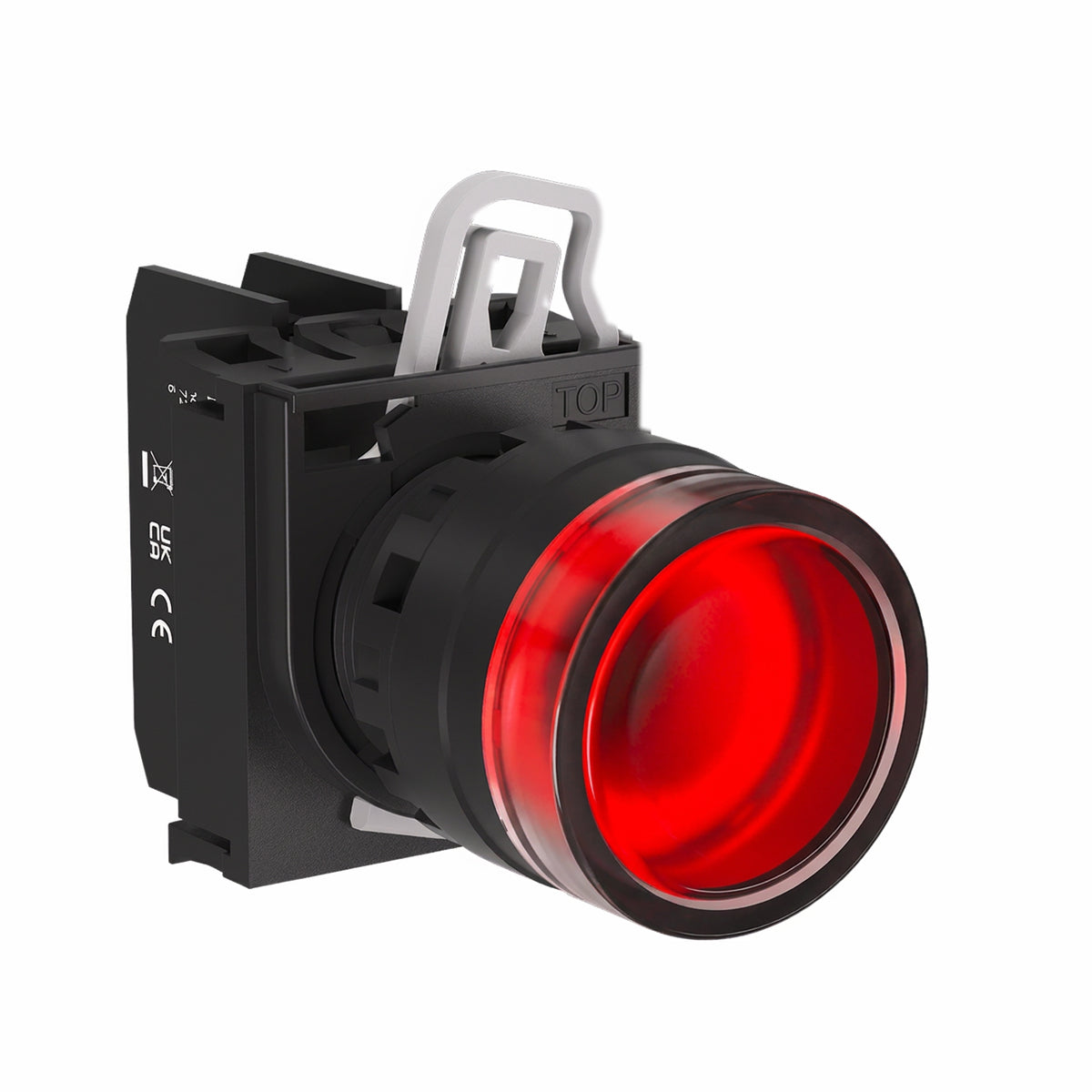

Red Illuminated Pushbutton 220V AC/DC, Momentary, 22mm
The LA12700R220 is a red illuminated momentary pushbutton with integral 220V AC/DC LED, combining command and status indication in a single 22mm cut-out — useful where panel real estate is tight and a separate pilot light cannot be accommodated.
Features and Specifications
Protection: IP65. Operating range -20°C to +60°C.
Standards (& Conformities): IEC 60947-1, IEC 60947-5-1, CE, RoHS.
Mounting:
Panel cut-out: Ø22.3mm ±0.2 (M22×1)
Panel thickness: 0.8–6 mm
Contact blocks are ordered separately. This operator ships without contacts. Add the LAA-series block that matches your circuit — LAA10 (1NO), LAA01 (1NC), LAA11 (1NO+1NC), LAA20 (2NO) or LAA02 (2NC).
Materials:
POM button, PA66 cover and housing
Manufacturer: Telergón, S.A.U. — European-engineered, CE marked to the Low Voltage (2014/35/EU) and RoHS (2011/65/EU) Directives.
Note: Please choose product carefully. Product selection is the responsibility of the Purchaser. Refer to relevant Standards, project requirements and technical specifications to ensure that the product meets requirements.
